用于牙科釉料的发射蓝青色光的BaLa(BO)∶Ce,Tb荧光粉的研制:颜色可调发射与能量转移

Development of a cyan blue-emitting BaLa(BO):Ce,Tb phosphor for use in dental glazing materials: color tunable emission and energy transfer.

作者信息

Jeong Gyu Jin, Kang Tae Wook, Park Young Ji, Park Ye Jin, Lee Younki, Bae Byungseo, Kim Sun Woog

机构信息

Electronic Convergence Materials Division, Optic & Electronic Component Materials Center, Korea Institute of Ceramic Engineering and Technology Jinju 52851 Korea

Division of Materials Science and Engineering & Convergence Technology, Gyeongsang National University Jinju 52828 Korea.

出版信息

RSC Adv. 2021 Jul 16;11(40):24949-24957. doi: 10.1039/d1ra04384f. eCollection 2021 Jul 13.

Abstract

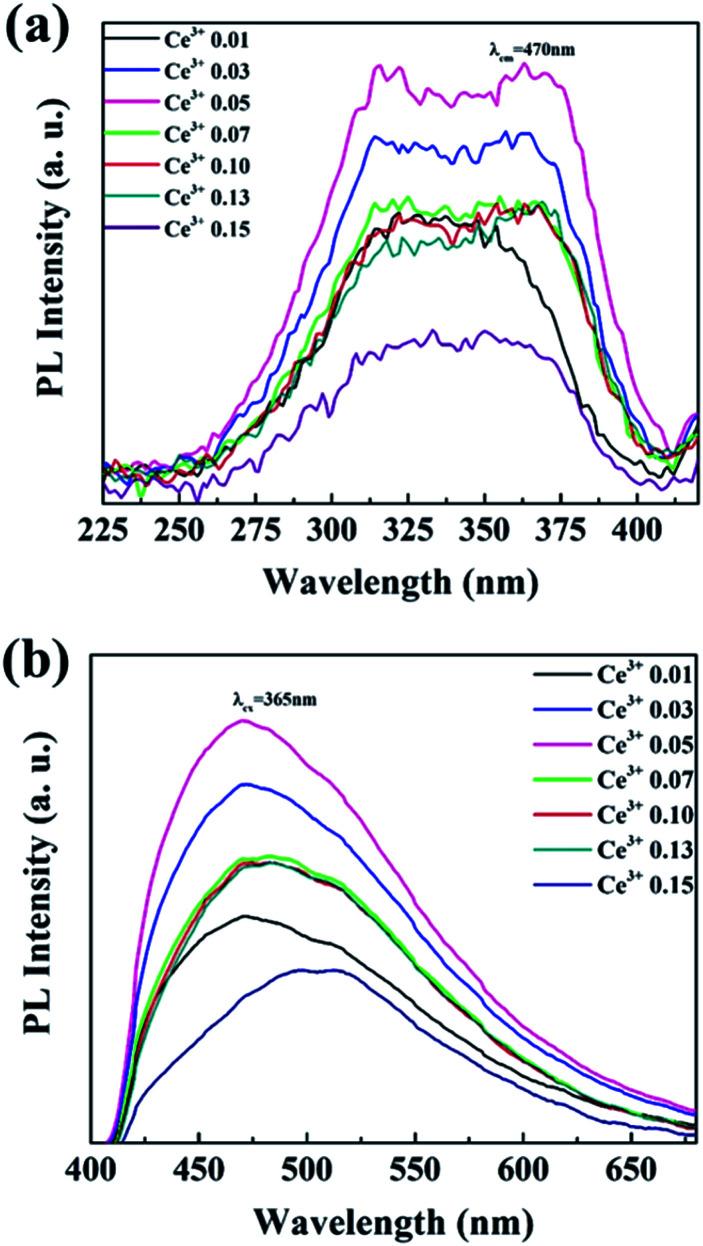

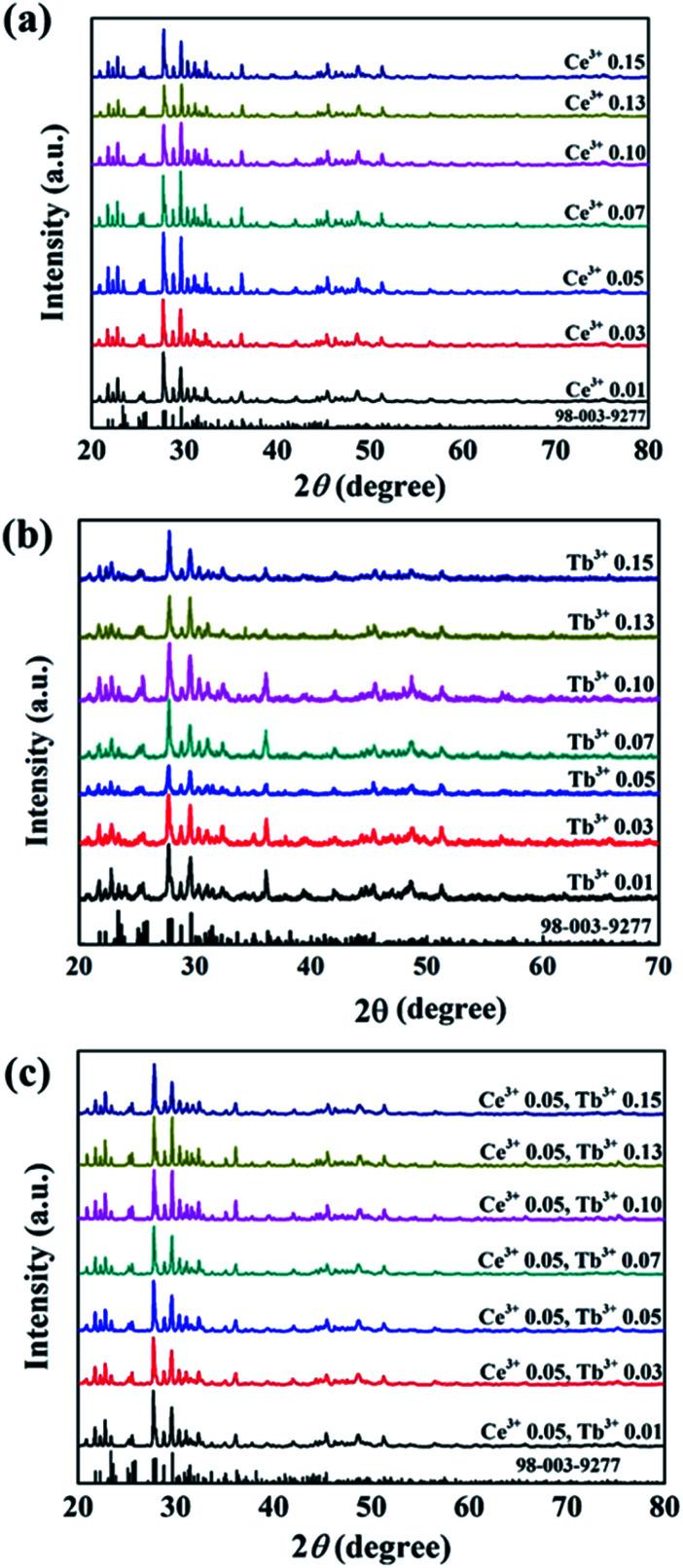

The Ce/Tb doped BaLa(BO) phosphors were synthesized by a conventional solid state reaction method. The synthesized phosphor samples are a single phase of BaLa(BO) and showed angular-shaped fine grains with average particle size from 5 μm to 10 μm. The BaLa(BO):Ce phosphors showed an asymmetric broad blue emission under excitation at 365 nm and the BaLa(BO):Tb phosphors exhibited typical green emission assigned to the 4f-4f transition of Tb under excitation at 254 nm. Under near-UV (365 nm) excitation, BaLa(BO):Ce,Tb phosphors showed both a blue emission band and green emission peaks due to Ce and Tb, respectively. By optimizing the composition, cyan-blue emission with high color purity (CIE chromaticity coordinate values = 0.2557 and = 0.3839) was obtained for the BaLa(BO):0.05Ce,0.03Tb phosphor, and the internal quantum efficiency of the phosphor at the excitation wavelength of 365 nm is estimated to be 50%. The dental glazing paste prepared by mixing organic binder, BaLa(BO):Ce,Tb phosphors, and low glass was successfully vitrified when it was heated at 600 and 700 °C, and showed high chemical stability of the luminescence properties in acidic aqueous solution (pH = 4).

摘要

通过传统的固态反应法合成了Ce/Tb掺杂的BaLa(BO)荧光粉。合成的荧光粉样品为BaLa(BO)单相,呈现角状细颗粒,平均粒径为5μm至10μm。BaLa(BO):Ce荧光粉在365nm激发下呈现不对称的宽带蓝光发射,而BaLa(BO):Tb荧光粉在254nm激发下表现出归属于Tb的4f-4f跃迁的典型绿色发射。在近紫外(365nm)激发下,BaLa(BO):Ce,Tb荧光粉分别由于Ce和Tb而同时呈现蓝光发射带和绿色发射峰。通过优化组成,对于BaLa(BO):0.05Ce,0.03Tb荧光粉获得了具有高色纯度(CIE色度坐标值x = 0.2557和y = 0.3839)的蓝青色发射,并且该荧光粉在365nm激发波长下的内量子效率估计为50%。通过将有机粘合剂、BaLa(BO):Ce,Tb荧光粉和低熔点玻璃混合制备的牙科釉浆在600和700°C加热时成功玻璃化,并且在酸性水溶液(pH = 4)中显示出高化学稳定性的发光性能。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/7cdd/9036909/c6c0d2b73ef5/d1ra04384f-f1.jpg
