Effects of alkali and transition metal-doped TiO hole blocking layers on the perovskite solar cells obtained by a two-step sequential deposition method in air and under vacuum.

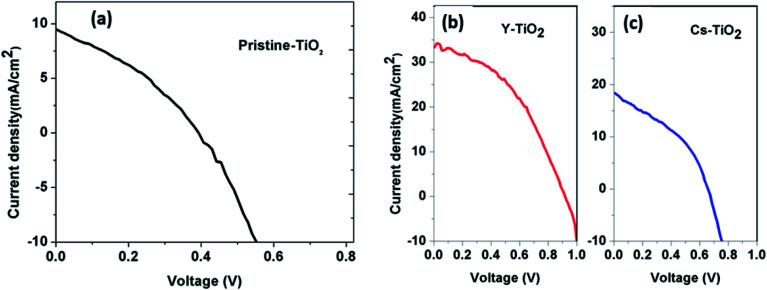

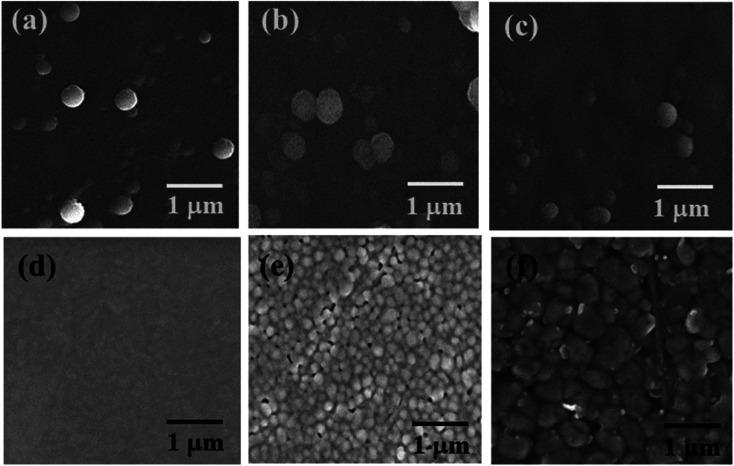

Planar perovskite solar cells (PPSCs) have received great attention in recent years due to their intriguing properties, which make them a good choice for photovoltaic applications. In this work, the effect of alkali and transition metal-doped TiO (cesium-doped TiO (Cs-TiO) and yttrium-doped TiO (Y-TiO)) compact layers on the optical, structural and the photovoltaic performance of the PPSCs have been investigated. The perovskite layer syntheses were carried out by depositing a lead iodide (PbI) layer spin-coating; converting PbI into methyl ammonium iodide (CHNHPbI) by chemical vapor deposition (CVD) and spin-coating at 60 min and 60 s conversion times respectively. The as-deposited PPSCs were studied layer-by-layer using an X-ray diffractometer, scanning electron microscope, and UV-vis diffuse reflectance, transmittance and absorbance. The power conversion efficiency for stable processed perovskite solar cells were 3.61% and 12.89% for air and vacuum processed, respectively.
