Alizadeh Hanie, Mirzaei Masoud, Saljooghi Amir Sh, Jodaian Vida, Bazargan Maryam, Mague Joel T, Gomila Rosa M, Frontera Antonio
Department of Chemistry, Faculty of Science, Ferdowsi University of Mashhad Mashhad 9177948974 Iran
Department of Chemistry, Islamshahr Branch, Islamic Azad University Islamshahr 3317843154 Iran.
RSC Adv. 2021 Nov 22;11(59):37403-37412. doi: 10.1039/d1ra08258b. eCollection 2021 Nov 17.

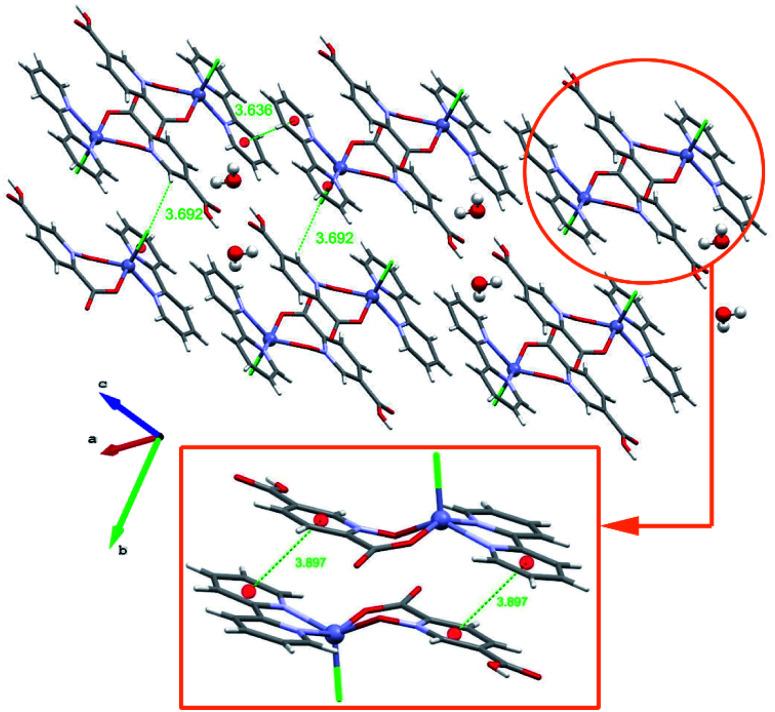

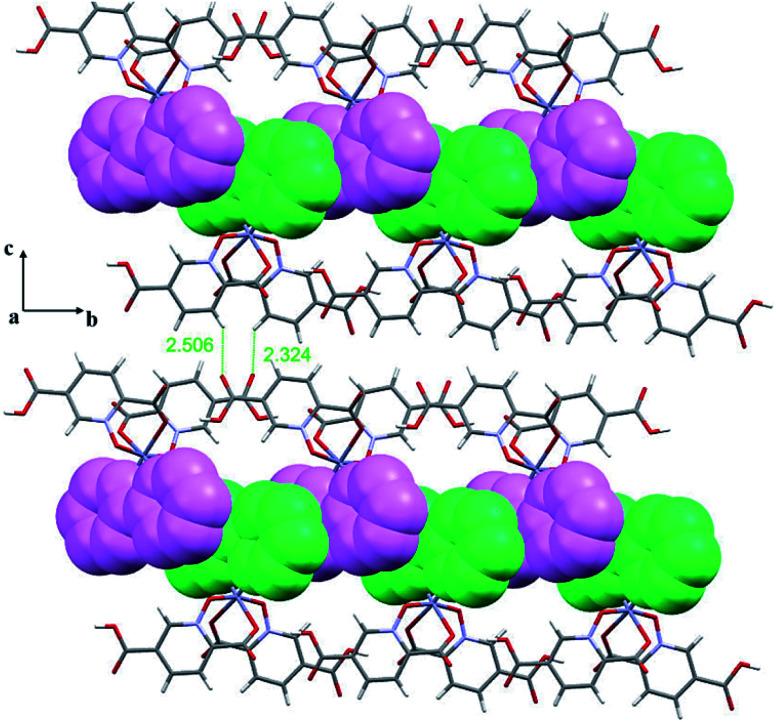

We report here the design, synthesis, and antiproliferative activity of three coordination complexes [Mn(pydco)(bpy)(HO)]·2HO (1), [Zn(bpy)(Hpydco)] (2), and [Zn(bpy)Cl(Hpydco)]·2HO (3) (Hpydco = pyridine-2,5-dicarboxylic acid -oxide, bpy = 2,2'-bipyridine). Molecular structures of these complexes have been characterized by elemental analysis, Fourier transform infrared spectroscopy, thermogravimetric analysis, and powder and single-crystal X-ray diffraction. According to the structural analysis, 1-3 are discrete complexes containing - and -donor ligands (bpy and pydco) in which pydco can be coordinated to the metal centres the -oxide oxygen and one carboxylate oxygen to generate a six-membered chelate ring. Also, these structures benefit from extensive intermolecular interactions such as hydrogen bonds and π-interactions which are the major forces to make them more stable in the solid state. The energetic features of the π-stacking interactions observed in compounds 1-3 have been computed and compared to the H-bonds. The interactions in the solid state have been also studied using the independent gradient model approach (IGM plot). The IGM-δg approach uses a new descriptor (δg) that locally represents the difference between a virtual upper limit of the electron density gradient and the true electron density gradient. This newly developed IGM methodology automatically extracts the signature of interactions between two given fragments. Finally, the antiproliferative properties of these complexes were tested on several cancer cell lines by MTT assay and flow cytometry. Also, to compare the antiproliferative activities of these complexes with common chemotherapy drugs, the antiproliferative property of cisplatin was evaluated as a reference and positive control.

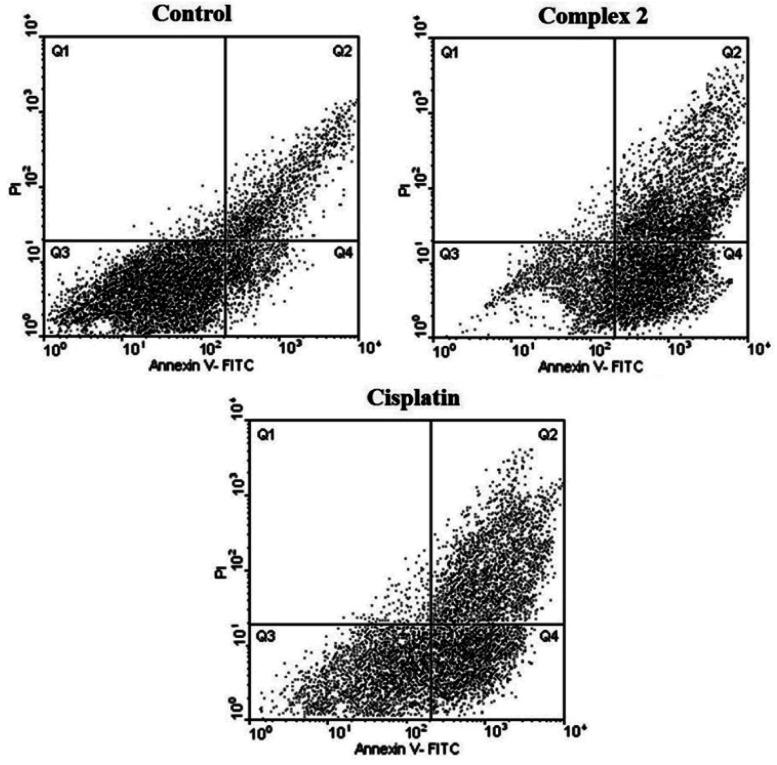

我们在此报告三种配位化合物[Mn(pydco)(bpy)(HO)]·2HO (1)、[Zn(bpy)(Hpydco)] (2) 和 [Zn(bpy)Cl(Hpydco)]·2HO (3)(Hpydco = 吡啶-2,5-二羧酸 -氧化物,bpy = 2,2'-联吡啶)的设计、合成及抗增殖活性。这些配合物的分子结构已通过元素分析、傅里叶变换红外光谱、热重分析以及粉末和单晶X射线衍射进行了表征。根据结构分析,1 - 3是含有 - 和 - 供体配体(bpy和pydco)的离散配合物,其中pydco可通过 - 氧化物氧和一个羧酸根氧与金属中心配位,形成一个六元螯合环。此外,这些结构得益于广泛的分子间相互作用,如氢键和π相互作用,这些是使其在固态中更稳定的主要作用力。已计算并比较了化合物1 - 3中观察到的π堆积相互作用的能量特征与氢键。还使用独立梯度模型方法(IGM图)研究了固态中的相互作用。IGM - δg方法使用一种新的描述符(δg),它局部表示电子密度梯度的虚拟上限与真实电子密度梯度之间的差异。这种新开发的IGM方法自动提取两个给定片段之间相互作用的特征。最后,通过MTT法和流式细胞术在几种癌细胞系上测试了这些配合物的抗增殖特性。此外,为了将这些配合物的抗增殖活性与常用化疗药物进行比较,评估了顺铂的抗增殖特性作为参考和阳性对照。
