Knapczyk-Korczak Joanna, Szewczyk Piotr K, Ura Daniel P, Berent Katarzyna, Stachewicz Urszula
AGH University of Science and Technology, Faculty of Metals Engineering and Industrial Computer Science, International Centre of Electron Microscopy for Materials Science al. A. Mickiewicza 30 30-059 Kraków Poland
Academic Centre for Materials and Nanotechnology, AGH University of Science and Technology Poland.
RSC Adv. 2020 Jun 11;10(38):22335-22342. doi: 10.1039/d0ra03939j. eCollection 2020 Jun 10.

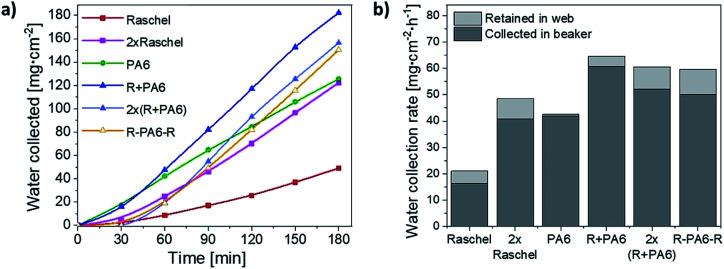

The water crisis is a big social problem and one of the solutions are the Fog Water Collectors (FWCs) that are placed in areas, where the use of conventional methods to collect water is impossible or inadequate. The most common fog collecting medium in FWC is Raschel mesh, which in our study is modified with electrospun polyamide 6 (PA6) nanofibers. The hydrophilic PA6 nanofibers were directly deposited on Raschel meshes to create the hierarchical structure that increases the effective surface area which enhances the ability to catch water droplets from fog. The meshes and the wetting behavior were investigated using a scanning electron microscope (SEM) and environmental SEM (ESEM). We performed the fog water collection experiments on various configurations of Raschel meshes with hydrophilic PA6 nanofibers. The addition of hydrophilic nanofibers allowed us to obtain 3 times higher water collection rate of collecting water from fog. Within this study, we show the innovative and straightforward way to modify the existing technology that improves water collection by changing the mechanisms of droplet formation on the mesh.
水危机是一个重大的社会问题,解决方案之一是雾水收集器(FWC),它放置在无法使用传统集水方法或传统方法集水不足的地区。FWC中最常见的集雾介质是拉舍尔网眼布,在我们的研究中,它用静电纺聚酰胺6(PA6)纳米纤维进行了改性。亲水性PA6纳米纤维直接沉积在拉舍尔网眼布上,形成分层结构,增加了有效表面积,提高了从雾中捕获水滴的能力。使用扫描电子显微镜(SEM)和环境扫描电子显微镜(ESEM)对网眼布及其润湿行为进行了研究。我们对带有亲水性PA6纳米纤维的各种拉舍尔网眼布配置进行了雾水收集实验。添加亲水性纳米纤维使我们从雾中收集水的集水率提高了3倍。在本研究中,我们展示了一种创新且直接的方法来改进现有技术,即通过改变网眼布上液滴形成的机制来提高集水效率。
