Liang Yaru, Liu Rutie, Xiong Xiang
State Key Laboratory of Powder Metallurgy, Central South University Lushan South Road Changsha 410083 P. R. China
RSC Adv. 2020 Jun 12;10(38):22663-22667. doi: 10.1039/d0ra02596h. eCollection 2020 Jun 10.

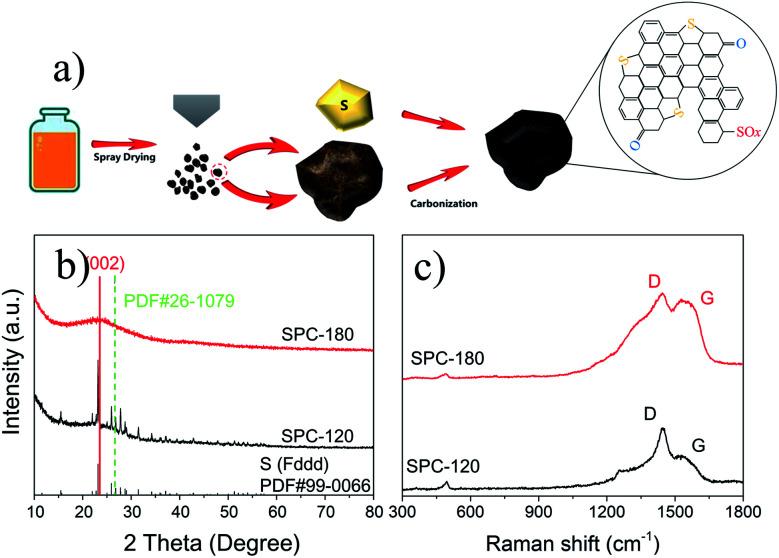

Heterogeneous carbon-based materials with high porosity are attracting increased attention for energy storage due to their enhanced capacity and rate performance. Herein, we report a sulfur-doped porous carbon material, which is achieved by spray-drying and subsequent sulfuration. The porous structure can provide vast diffusive tunnels for the fast access of electrolytes and sodium ions. Also, the S-C bond increases the electrical conductivity of the carbon frameworks and offers excessive reaction sites for sodium-ion storage. The elaborated carbon architecture enables a high capacity of 370 mA h g at 0.5 A g and provides an excellent rate performance for long-term cycling (197 mA h g at 2.0 A g for 650 cycles). Considering the scalable and facile spray-pyrolysis preparation route, this material is expected to serve as a low-cost and environmentally friendly anode for practical sodium-ion batteries.
具有高孔隙率的异质碳基材料因其增强的容量和倍率性能而在能量存储方面受到越来越多的关注。在此,我们报道了一种硫掺杂的多孔碳材料,它是通过喷雾干燥和随后的硫化制备而成的。多孔结构可为电解质和钠离子的快速传输提供广阔的扩散通道。此外,S-C键增加了碳骨架的电导率,并为钠离子存储提供了大量反应位点。精心设计的碳结构在0.5 A g时具有370 mA h g的高容量,并为长期循环提供了优异的倍率性能(在2.0 A g下循环650次时为197 mA h g)。考虑到可扩展且简便的喷雾热解制备路线,这种材料有望成为实用钠离子电池的低成本且环境友好的负极材料。
