使用三(“,'-二异丙基-2-二甲基氨基胍基)钇(iii)进行水辅助氧化钇原子层沉积:工艺开发、薄膜表征和功能特性

Water assisted atomic layer deposition of yttrium oxide using tris(,'-diisopropyl-2-dimethylamido-guanidinato) yttrium(iii): process development, film characterization and functional properties.

作者信息

Mai Lukas, Boysen Nils, Subaşı Ersoy, Arcos Teresa de Los, Rogalla Detlef, Grundmeier Guido, Bock Claudia, Lu Hong-Liang, Devi Anjana

机构信息

Inorganic Materials Chemistry, Ruhr-University Bochum 44801 Bochum Germany

Werkstoffe und Nanoelektronik, Ruhr-Universität Bochum 44801 Bochum Germany.

出版信息

RSC Adv. 2018 Jan 29;8(9):4987-4994. doi: 10.1039/c7ra13417g. eCollection 2018 Jan 24.

Abstract

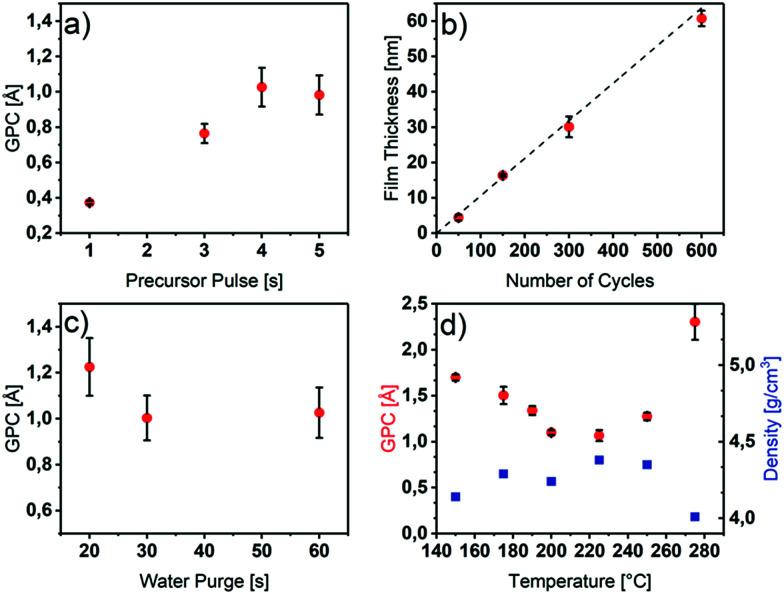

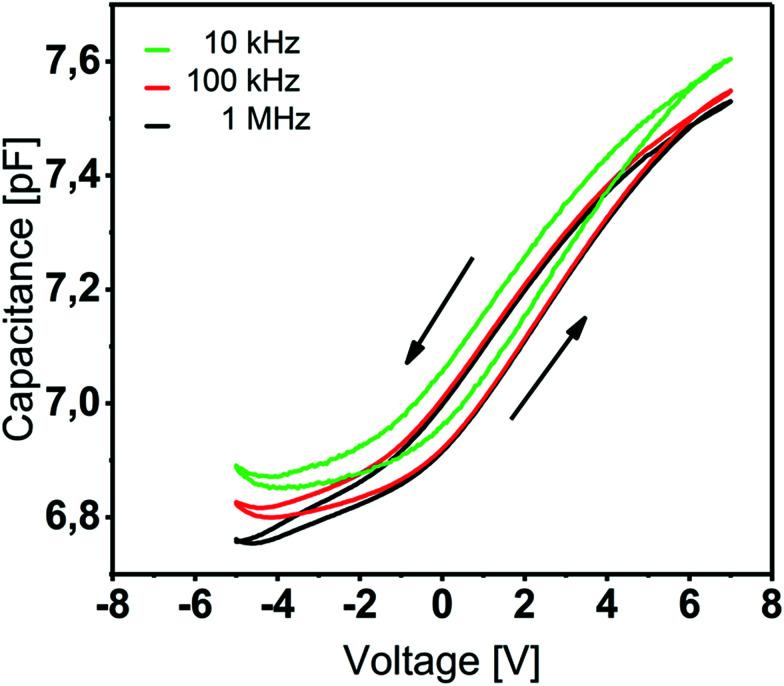

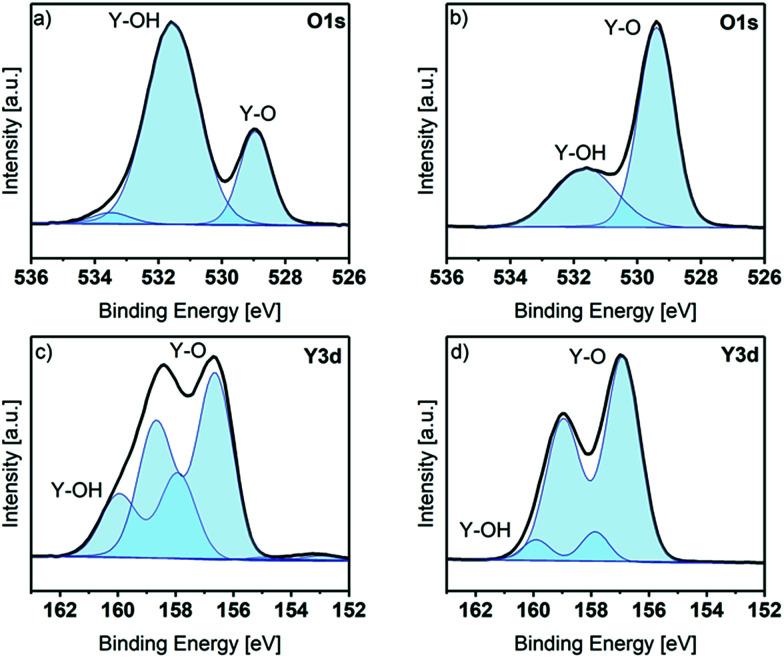

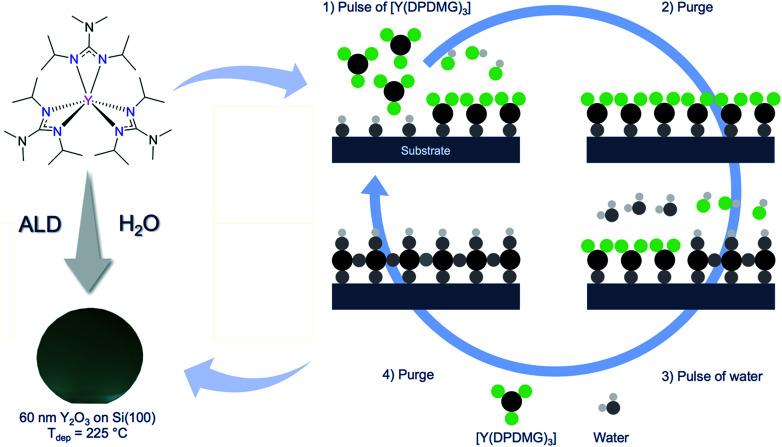

We report a new atomic layer deposition (ALD) process for yttrium oxide (YO) thin films using tris(,-diisopropyl-2-dimethylamido-guanidinato) yttrium(iii) [Y(DPDMG)] which possesses an optimal reactivity towards water that enabled the growth of high quality thin films. Saturative behavior of the precursor and a constant growth rate of 1.1 Å per cycle confirm the characteristic self-limiting ALD growth in a temperature range from 175 °C to 250 °C. The polycrystalline films in the cubic phase are uniform and smooth with a root mean squared (RMS) roughness of 0.55 nm, while the O/Y ratio of 2.0 reveal oxygen rich layers with low carbon contaminations of around 2 at%. Optical properties determined UV/Vis measurements revealed the direct optical band gap of 5.56 eV. The valuable intrinsic properties such as a high dielectric constant make YO a promising candidate in microelectronic applications. Thus the electrical characteristics of the ALD grown layers embedded in a metal insulator semiconductor (MIS) capacitor structure were determined which resulted in a dielectric permittivity of 11, low leakage current density (≈10 A cm at 2 MV cm) and high electrical breakdown fields (4.0-7.5 MV cm). These promising results demonstrate the potential of the new and simple YO ALD process for gate oxide applications.

摘要

我们报道了一种用于氧化钇(YO)薄膜的新型原子层沉积(ALD)工艺,该工艺使用三(,-二异丙基-2-二甲基氨基胍基)钇(iii)[Y(DPDMG)],其对水具有最佳反应活性,能够生长高质量薄膜。前驱体的饱和行为以及每循环1.1 Å的恒定生长速率证实了在175°C至250°C温度范围内典型的自限性ALD生长。立方相的多晶薄膜均匀且光滑,均方根(RMS)粗糙度为0.55 nm,而O/Y比为2.0表明富氧层的碳污染低,约为2 at%。通过紫外/可见测量确定的光学性质显示直接光学带隙为5.56 eV。诸如高介电常数等有价值的固有特性使YO成为微电子应用中有前景的候选材料。因此,确定了嵌入金属绝缘体半导体(MIS)电容器结构中的ALD生长层的电学特性,其介电常数为11,低漏电流密度(在2 MV/cm时≈10 A/cm²)和高电击穿场强(4.0 - 7.5 MV/cm)。这些有前景的结果证明了这种新型且简单的YO ALD工艺在栅极氧化物应用中的潜力。
