Xu Hui-Bing, Zhuang Wei-Dong, Liu Rong-Hui, Liu Yuan-Hong, Zhou Tian-Liang, Cho Yujin, Gao Wei, Yan Chun-Pei, Hirosaki Naoto, Xie Rong-Jun
National Engineering Research Center for Rare Earth Materials, General Research Institute for Nonferrous Metals, Grirem Advanced Materials Co., Ltd. Beijing 100088 People's Republic of China
Sialon Group, National Institute for Materials Science 1-1 Namiki Tsukuba 305-0044 Japan.
RSC Adv. 2018 Oct 15;8(61):35271-35279. doi: 10.1039/c8ra07011c. eCollection 2018 Oct 10.

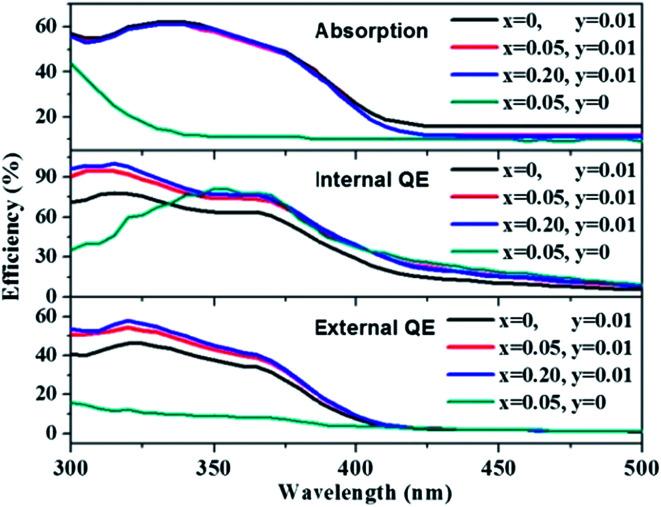

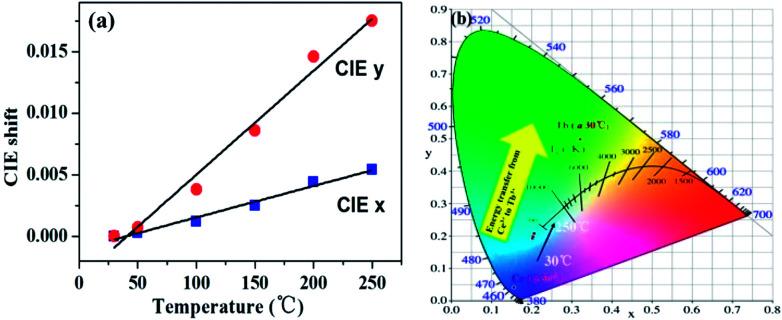

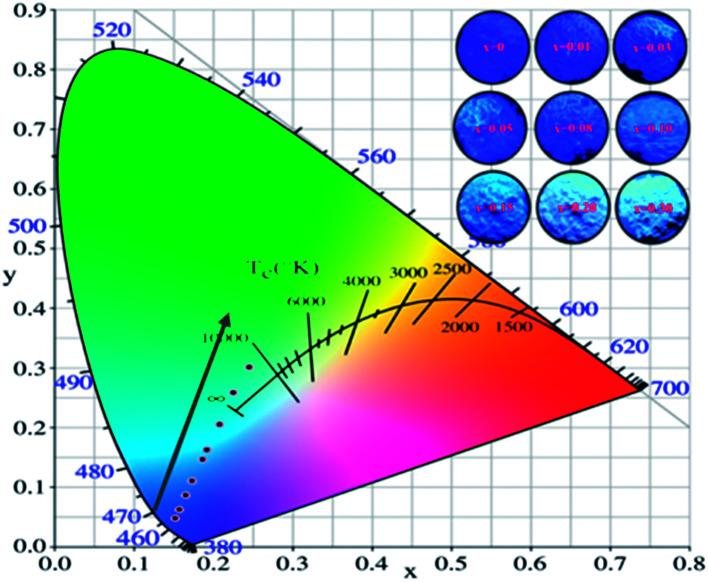

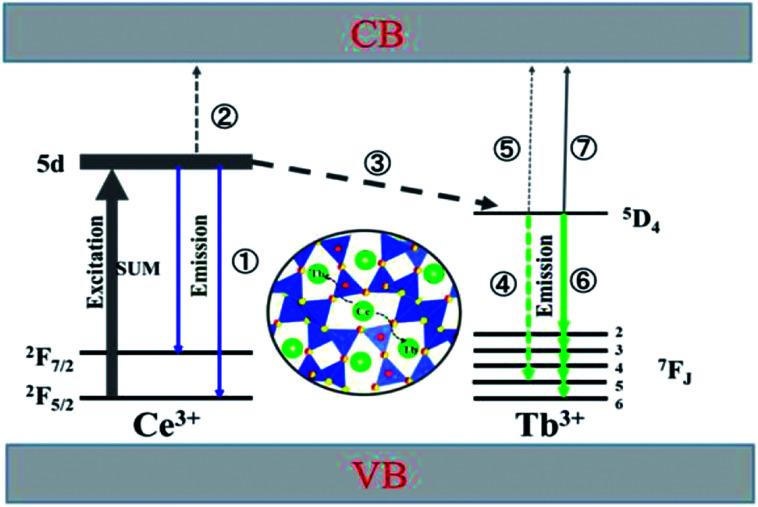

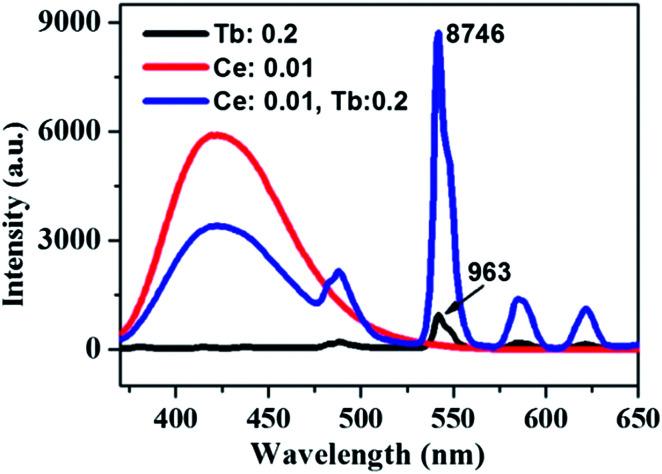

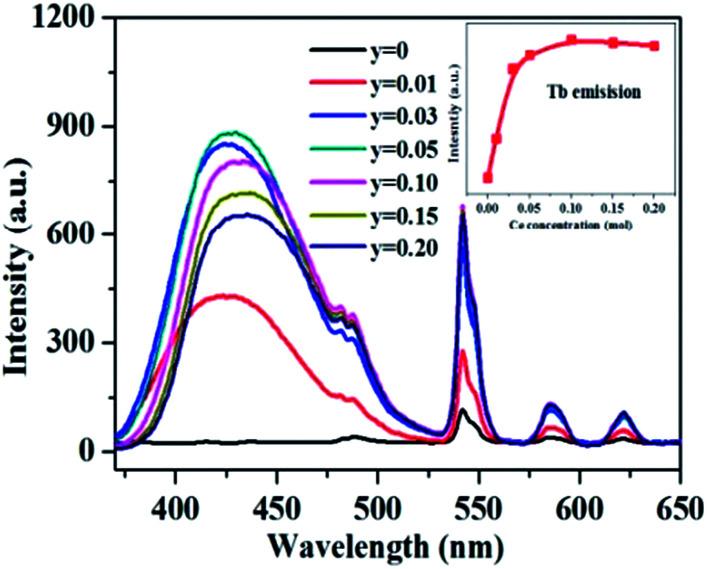

A series of Ce-, Tb- and Ce/Tb-doped LaSiNO phosphors were synthesized by gas-pressure sintering (GPS). The energy transfer between Ce and Tb occurred in the co-doped samples, leading to a tunable emission color from blue to green under the 360 nm excitation. The energy transfer mechanism was controlled by the dipole-dipole interaction. The Ce/Tb co-doped sample had an external quantum efficiency of 46.7%, about 5.6 times higher than the Tb-doped LaSiNO phosphor (8.3%). The thermal quenching of the Tb emission in LaSiNO:Tb,Ce was greatly reduced from 74 to 30% at 250 °C, owing to the energy transfer from Ce to Tb. The blue-green LaSiNO:0.01Ce,0.05Tb phosphor was testified to fabricate a warm white LED that showed a high color rendering index of 90.2 and a correlated color temperature of 3570 K. The results suggested that the co-doped LaSiNO:Ce,Tb phosphor could be a potential blue-green down-conversion luminescent material for use in UV-LED pumped wLEDs.
通过气压烧结(GPS)合成了一系列铈(Ce)、铽(Tb)和铈/铽共掺杂的硅酸镧氮(LaSiNO)荧光粉。在共掺杂样品中,Ce和Tb之间发生了能量转移,在360nm激发下导致发射颜色从蓝色可调至绿色。能量转移机制受偶极-偶极相互作用控制。Ce/Tb共掺杂样品的外量子效率为46.7%,约为Tb掺杂的LaSiNO荧光粉(8.3%)的5.6倍。由于从Ce到Tb的能量转移,LaSiNO:Tb,Ce中Tb发射的热猝灭在250℃时从74%大幅降低至30%。经证实,蓝绿色的LaSiNO:0.01Ce,0.05Tb荧光粉可用于制造暖白色发光二极管(LED),其显色指数高达90.2,相关色温为3570K。结果表明,共掺杂的LaSiNO:Ce,Tb荧光粉可能是一种潜在的用于紫外LED泵浦的白色发光二极管的蓝绿色下转换发光材料。
