Chen Piaopiao, Hu Pingyue, Huang Ke, Sawyer Erica, Sun Ke, Ying Binwu, Wei Xiawei, Geng Jia
Department of Laboratory Medicine, State Key Laboratory of Biotherapy, West China Hospital, Sichuan University and Collaborative Innovation Center for Biotherapy Chengdu Sichuan 610041 China
College of Chemistry and Material Science, Sichuan Normal University Chengdu Sichuan 610068 China.
RSC Adv. 2018 Dec 5;8(71):40564-40569. doi: 10.1039/c8ra08296k. eCollection 2018 Dec 4.

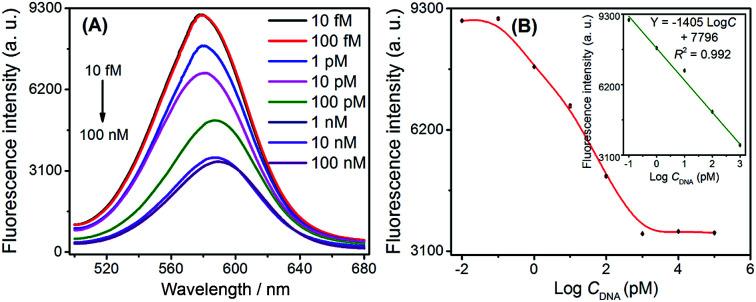

The development of simple, sensitive and cost-effective methods for specific nucleic acid detection has attracted tremendous attention due to its importance to the early diagnosis of genetic diseases and to biodefense applications. In this work, we demonstrated a fluorescent turn-off mode DNA assay based on l-cysteine-modulated synthesis of CdTe quantum dots (CdTe QDs), horseradish peroxidase-mimicking G-quadruplex-hemin-K complex controlled oxidation of l-cysteine to cystine, and catalyzed hairpin assembly (CHA)-assisted signal amplification. After the addition of target DNA, the CHA signal amplification reaction was triggered and numerous H1-H2 double-stranded DNA were formed, initiating the release of G-quadruplex sequences in H2 simultaneously. Thus, the degree of inhibition of the synthesis of CdTe QDs is proportional to the concentration of the G-quadruplex sequence in this method. In contrast, when the target DNA was absent, the CHA could not be triggered, and the fluorescence signal was high due to the remaining intact l-cysteine. Under optimal experimental conditions, the homogeneous fluorescence method achieved the detection of HIV DNA with a linear range from 0.1 pM to 1 nM and a detection limit of 0.12 pM. This novel biosensor exhibits excellent specificity in differentiating DNA sequences with a single-base and two-base mismatch. To the best of our knowledge, this a label-free and highly sensitive bioassay utilizing CHA-assisted signal amplification and G-quadruplex control of synthesis of CdTe QDs strategy was not reported in previous. Thus, this proposed strategy is anticipated to find use in basic biochemical research and clinical diagnosis.

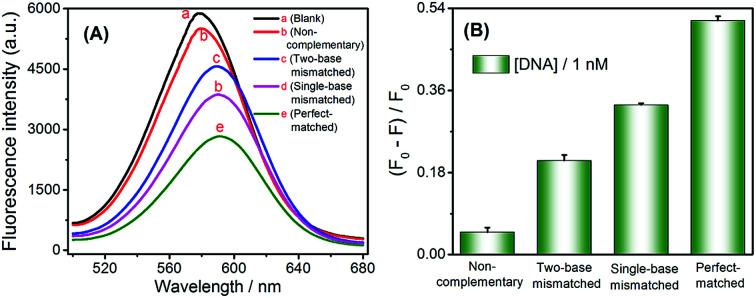

开发简单、灵敏且经济高效的特定核酸检测方法因其对遗传疾病早期诊断和生物防御应用的重要性而备受关注。在这项工作中,我们展示了一种基于 l-半胱氨酸调节 CdTe 量子点(CdTe QDs)合成、辣根过氧化物酶模拟物 G-四链体-血红素-K 复合物控制 l-半胱氨酸氧化为胱氨酸以及催化发夹组装(CHA)辅助信号放大的荧光猝灭模式 DNA 检测方法。加入目标 DNA 后,触发 CHA 信号放大反应,形成大量 H1-H2 双链 DNA,同时引发 H2 中 G-四链体序列的释放。因此,该方法中 CdTe QDs 合成的抑制程度与 G-四链体序列的浓度成正比。相反,当不存在目标 DNA 时,无法触发 CHA,由于剩余完整的 l-半胱氨酸,荧光信号较高。在最佳实验条件下,该均相荧光方法实现了对 HIV DNA 的检测,线性范围为 0.1 pM 至 1 nM,检测限为 0.12 pM。这种新型生物传感器在区分单碱基和双碱基错配的 DNA 序列方面表现出优异的特异性。据我们所知,此前尚未报道过这种利用 CHA 辅助信号放大和 G-四链体控制 CdTe QDs 合成策略的无标记且高灵敏度生物测定法。因此,预计该策略将在基础生化研究和临床诊断中得到应用。
