Gorshkov Vyacheslav N, Tereshchuk Volodymyr V, Bereznykov Oleksii V, Boiger Gernot K, Fallah Arash S
Igor Sikorsky Kyiv Polytechnic Institute, National Technical University of Ukraine, 37 Prospect Peremogy, 03056 Kiev, Ukraine.
Department of Chemistry and Biomolecular Science, Clarkson University, Potsdam, NY 13699, USA.
Nanomaterials (Basel). 2022 Apr 20;12(9):1411. doi: 10.3390/nano12091411.

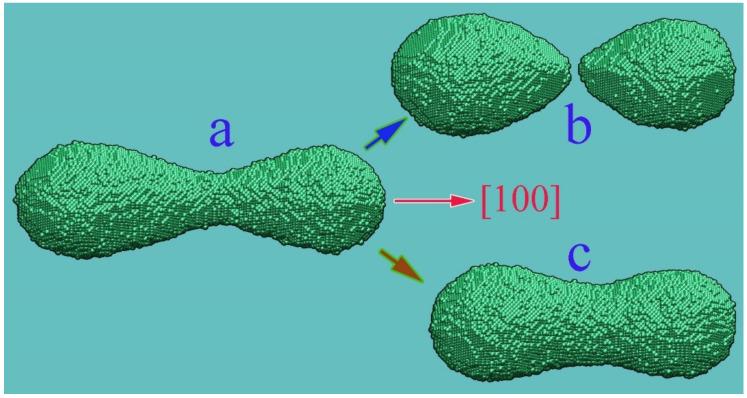

We studied the striking effect of external irradiation of nanowires on the dynamics of their surface morphology at elevated temperatures that do not destroy their crystal lattice. Numerical experiments performed on the basis of the Monte Carlo model revealed new possibilities for controlled periodic modulation of the cross-section of quasi-one-dimensional nanostructures for opto- and nanoelectronic elements. These are related to the fact that external irradiation stimulates the surface diffusion of atoms. On the one hand, such stimulation should accelerate the development of the well-known spontaneous thermal instability of nanowires (Rayleigh instability), which leads to their disintegration into nanoclusters. On the other hand, this leads to the forced development of the well-known roughening transition (RT) effect. Under normal circumstances, this manifests itself on selected crystal faces at a temperature above the critical one. The artificial stimulation of this effect on the lateral surface of quasi-one-dimensional structures determines many unpredictable scenarios of their surface dynamics, which essentially depend on the orientation of the nanowire axis relative to its internal crystal structure. In particular, the long-wave Rayleigh breakup observed in absence of external irradiation transforms into strongly pronounced short-wave metastable modulations of the cross-section (a chain of unduloids). The effect of the self-consistent relationship between the Rayleigh instability and RT is dimensional and can be observed only at relatively small nanowire radii. The fact is analyzed that, for the manifestation of this effect, it is very important to prevent significant heating of the nanowire when surface diffusion is stimulated. A number of developed theoretical concepts have already found confirmation in real experiments with Au and Ag nanowires irradiated by electrons and Ag ions, respectively.
我们研究了在不破坏其晶格的高温下,纳米线的外部辐照对其表面形态动力学的显著影响。基于蒙特卡罗模型进行的数值实验揭示了对用于光电子和纳米电子元件的准一维纳米结构的横截面进行可控周期性调制的新可能性。这些与外部辐照刺激原子的表面扩散这一事实有关。一方面,这种刺激应加速纳米线众所周知的自发热不稳定性(瑞利不稳定性)的发展,这会导致其分解成纳米团簇。另一方面,这会导致众所周知的粗糙化转变(RT)效应的强制发展。在正常情况下,这种效应在高于临界温度的特定晶面上表现出来。对准一维结构侧面这种效应的人工刺激决定了其表面动力学的许多不可预测的情况,这主要取决于纳米线轴相对于其内部晶体结构的取向。特别是,在没有外部辐照时观察到的长波瑞利破裂转变为横截面强烈明显的短波亚稳调制(一串波状曲面)。瑞利不稳定性和RT之间自洽关系的效应是有尺寸依赖性的,并且只能在相对较小的纳米线半径下观察到。分析了这样一个事实,即对于这种效应的表现,在刺激表面扩散时防止纳米线显著加热非常重要。一些已发展的理论概念已分别在对金和银纳米线进行电子和银离子辐照的实际实验中得到证实。
