Analysis of Correlation between Structure and Properties of Carboxymethyl Cellulose Film Loaded with Eu and Tb Fluorescence by Rheology at Different Drying Stages.

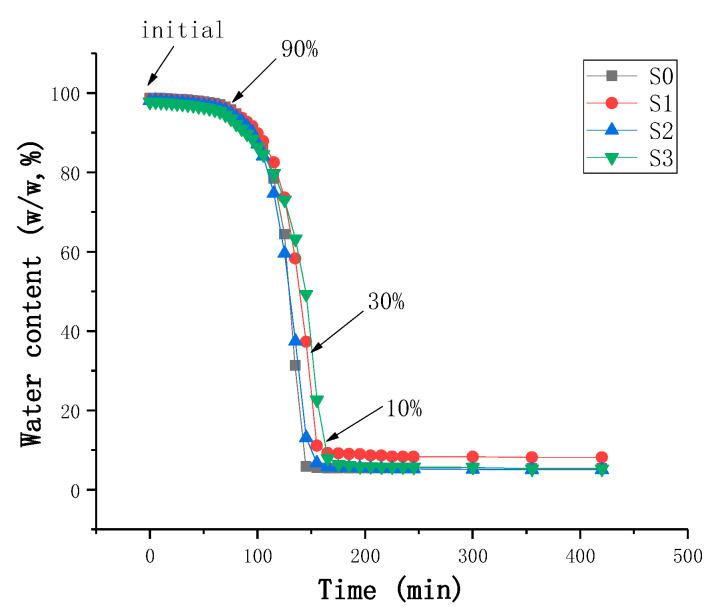

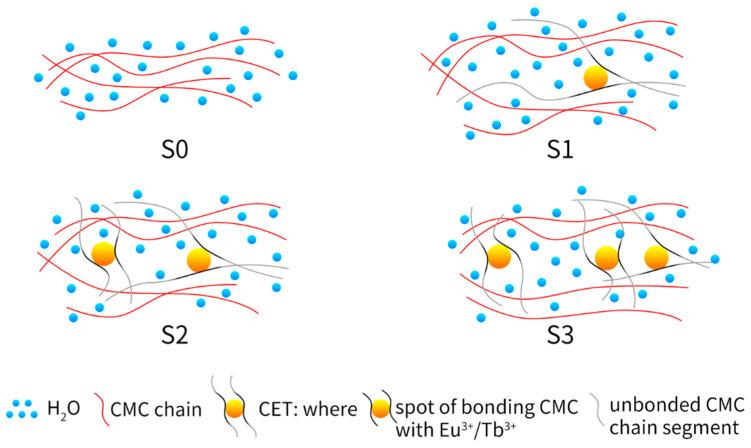

The influences of interactions between carboxymethyl cellulose (CMC) and CMC/europium (III)-terbium (III) (CET) on the structure and properties of the resultant CMC/CET films were investigated by rheology at three stages of the film-drying process. According to the water content at different drying times, the kinetics curves during the film-drying process were drawn. Then, the rheology properties of film-forming solutions during the drying process were characterized by dynamic modulus, Han plots, zero shear complex viscosity and relaxation time. When the water content was 90%, the film contained either 0.1 or 0.2 g of CET, which had good fluidity, while the film with 0.3 g of CET was elastic-dominated. Han plots and XRD analyses showed that the interactions between the CMC and CET were not hydrogen bonds but random entanglements. The zero-shear complex viscosity and relaxation time spectrum confirmed that the entanglements enhanced as the CET content increased. Meanwhile, aggregation formed in the solution of CMC with 0.3 g of CET. When CMC-CET films with different CET additions were compared, the film with 0.2 g of CET had an even and tight sheet structure, the greatest fluorescence intensity, and superior tensile strength of 78.76 MPa.
