Three-Dimensional Evaluation of Innominate Bone Rotation in Female Patients with Developmental Dysplasia of the Hip.

BACKGROUND

Patients with developmental dysplasia of the hip (DDH) are known to have abnormal pelvic morphologies; however, rotation of innominate bone features remains unclear. Thus, we investigated innominate bone rotation in patients with DDH by measuring the associated angles and distances using three-dimensional (3D) computed tomography.

METHODS

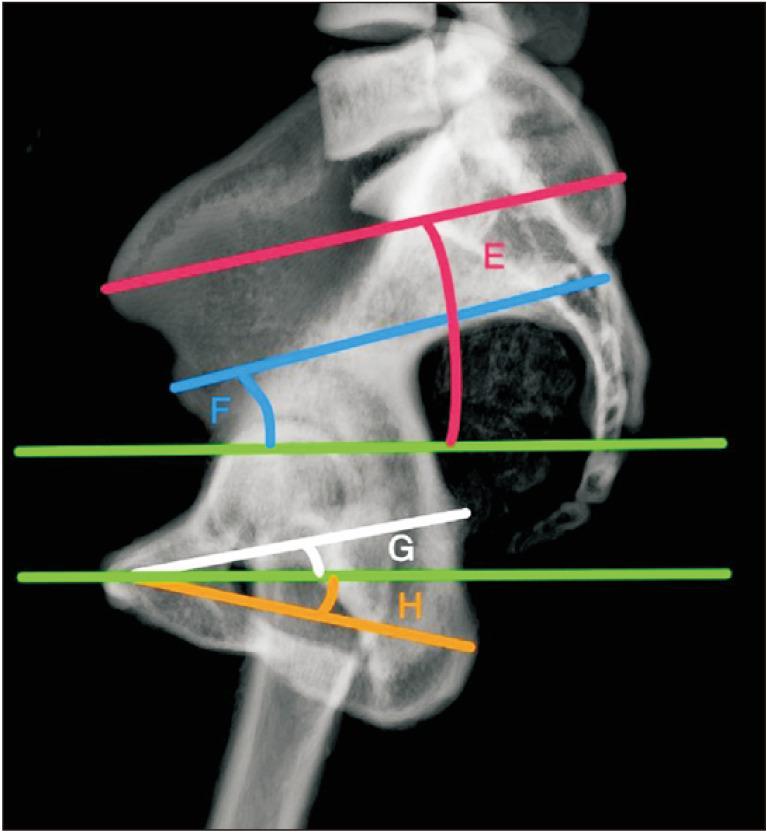

We defined four straight lines in pelvic 3D models: from the anterior superior iliac spine to the posterior superior iliac spine, from the anterior inferior iliac spine to the posterior inferior iliac spine, from the pubic tubercle to the ischial spine, and from the pubic tubercle to the ischial tuberosity. Similarly, we measured the angles formed by these lines using the vertical axis of the anterior pelvic plane on the horizontal plane and the horizontal axis on the sagittal plane. Additionally, we measured the distances between the femoral head centers and the acetabular centers in the coronal plane.

RESULTS

The difference in internal rotation angle between the superior and inferior parts of the iliac bone was significantly lower, by approximately 1.7°, in the DDH group than in the control group ( = 0.007); the difference between the inferior and superior parts of the ischiopubic bone was significantly higher, by approximately 1.5°, in the DDH group ( < 0.001). In the sagittal plane, the sum of the superior aspect of the iliac bone and the inferior aspect of the ischium was significantly lower in the DDH group ( = 0.001) than in the control group. The distances between the femoral heads and the acetabula were significantly greater in the DDH group than in the control group ( = 0.03, < 0.01, respectively).

CONCLUSIONS

Patients with DDH had a more internally rotated ilium and ischiopubic bone than normal individuals; however, it should be emphasized that internal rotation was reduced near the acetabulum, and the acetabulum was shifted laterally. Similarly, it was shown that patients with DDH had different rotations of the ilium and ischiopubic bone in the sagittal plane.
