聚(L-丙交酯-共-ε-己内酯)的激光辅助熔体静电纺丝:对制备纤维的加工行为和特性的分析

Laser-Assisted Melt Electrospinning of Poly(L-lactide-co-ε-caprolactone): Analyses on Processing Behavior and Characteristics of Prepared Fibers.

作者信息

Hou Zongzi, Kobayashi Haruki, Tanaka Katsufumi, Takarada Wataru, Kikutani Takeshi, Takasaki Midori

机构信息

Doctoral Program of Materials Chemistry, Graduate School of Science and Technology, Kyoto Institute of Technology, Matsugasaki, Sakyo-ku, Kyoto 606-8585, Japan.

Faculty of Materials Science and Engineering, Kyoto Institute of Technology, Matsugasaki, Sakyo-ku, Kyoto 606-8585, Japan.

出版信息

Polymers (Basel). 2022 Jun 20;14(12):2511. doi: 10.3390/polym14122511.

Abstract

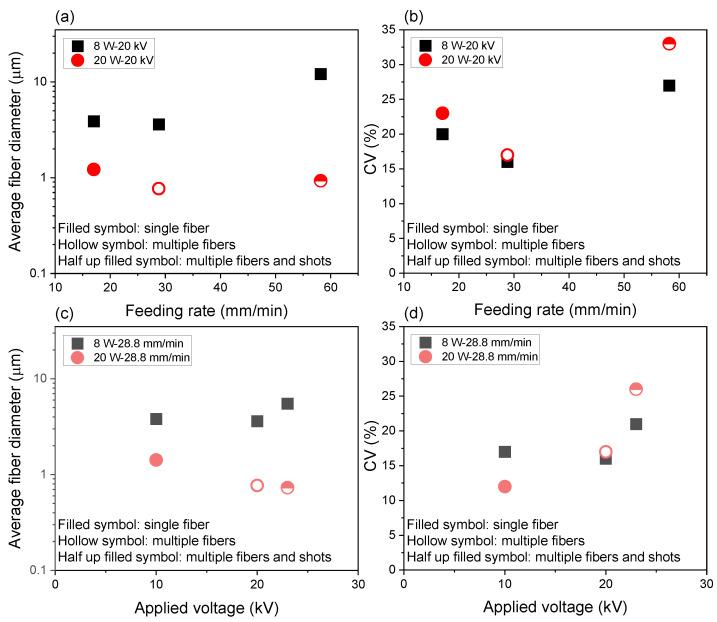

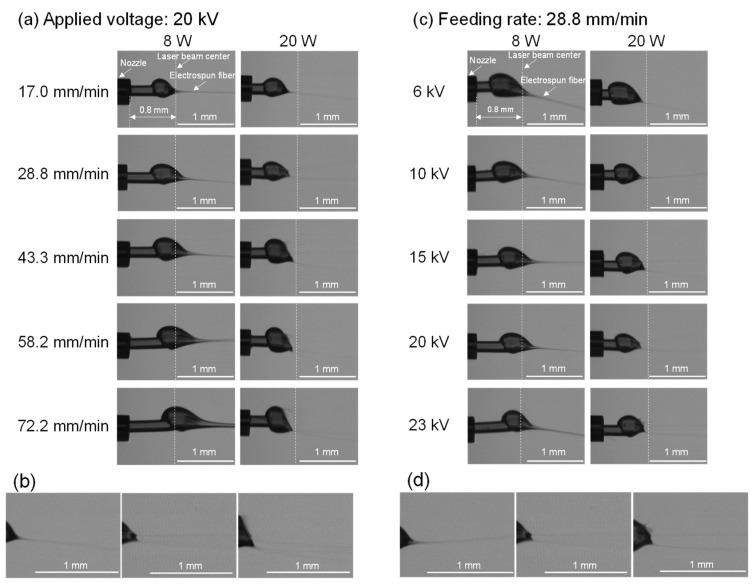

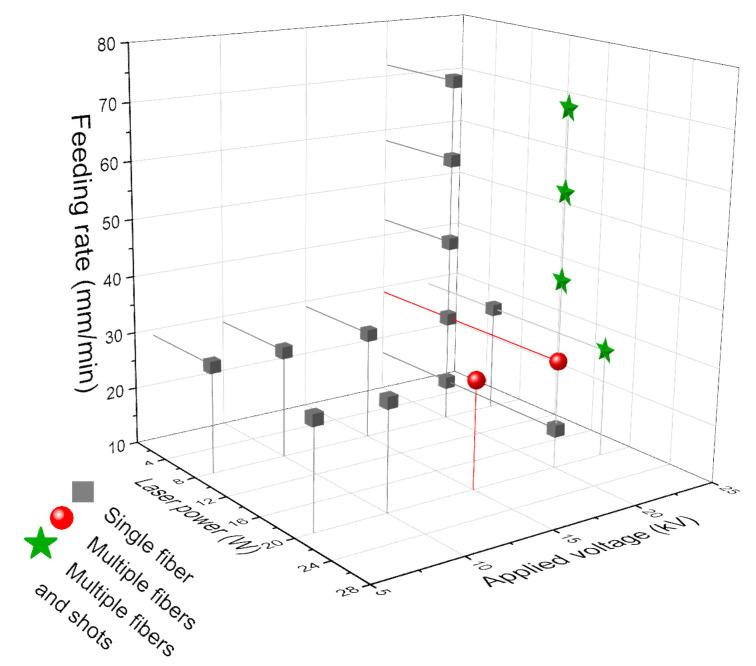

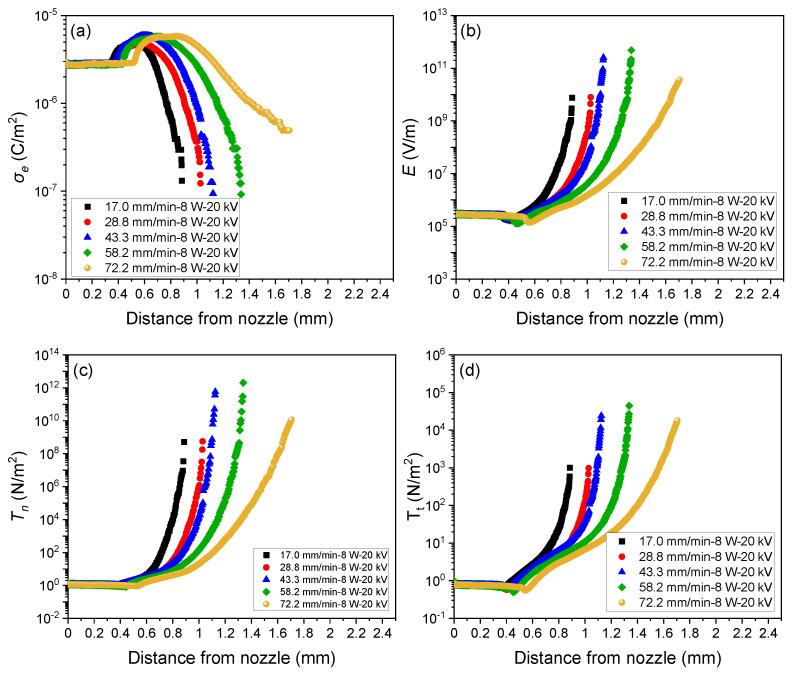

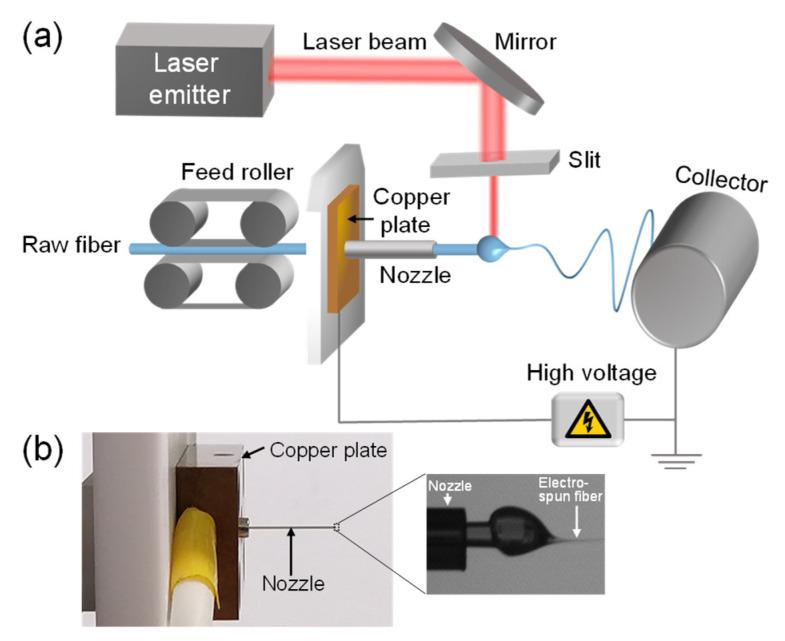

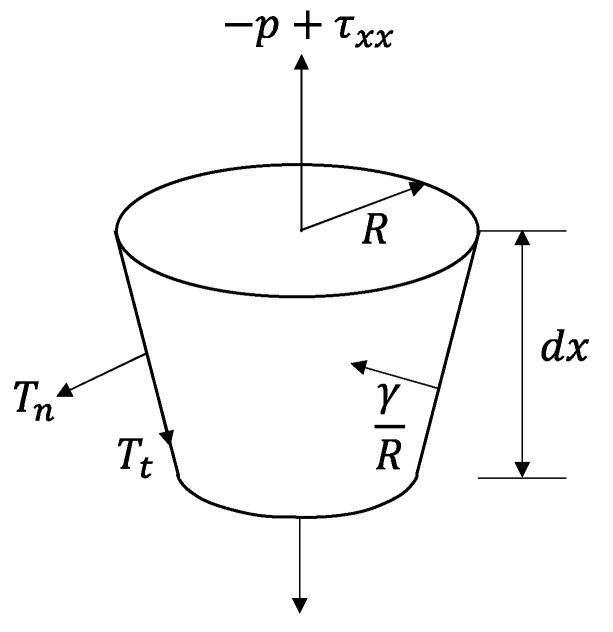

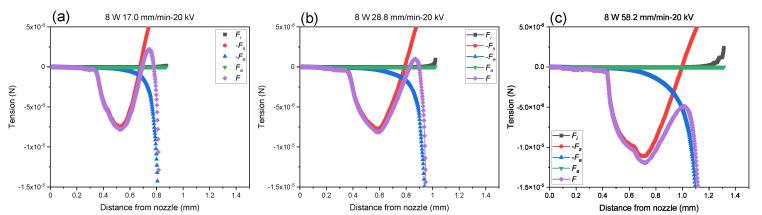

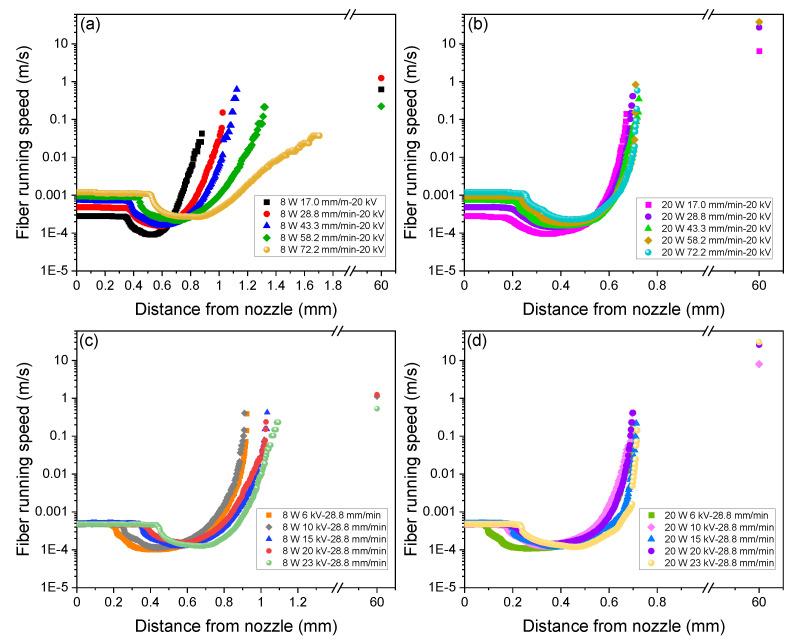

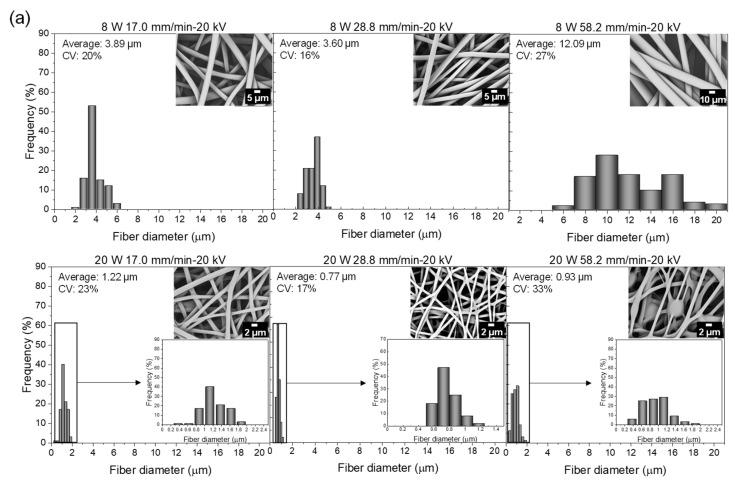

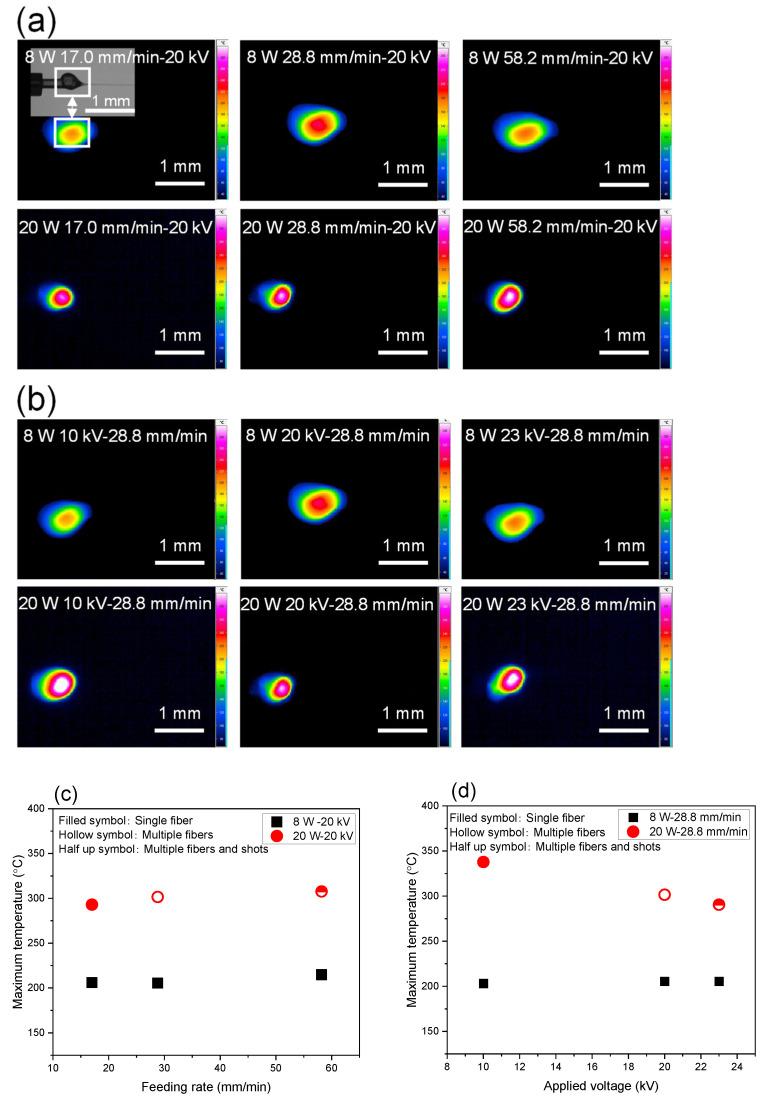

The laser-assisted melt electrospinning (LES) method was utilized for the preparation of poly(L-lactide-co-ε-caprolactone) (PLCL) fibers. During the process, a carbon dioxide laser was irradiated, and voltage was applied to the raw fiber of PLCL. In situ observation of fiber formation behavior revealed that only a single jet was formed from the swelling region under the conditions of low laser power and applied voltage and feeding rate, whereas multiple jets and shots were produced with increases in these parameters. The formation of multiple jets resulted in the preparation of thinner fibers, and under the optimum condition, an average fiber diameter of 0.77 μm and its coefficient of variation of 17% was achieved without the formation of shots. The estimation of tension and stress profiles in the spin-line was also carried out based on the result of in situ observation and the consideration that the forces originated from surface tension, electricity, air friction, and inertia. The higher peak values of tension and stress appearing near the apex of the swelling region corresponded to the formation of thinner fibers for the condition of single-jet ejection. Analyses of the molecular orientation and crystallization of as-spun fibers revealed the formation of a wide variation of higher order structure depending on the spinning conditions.

摘要

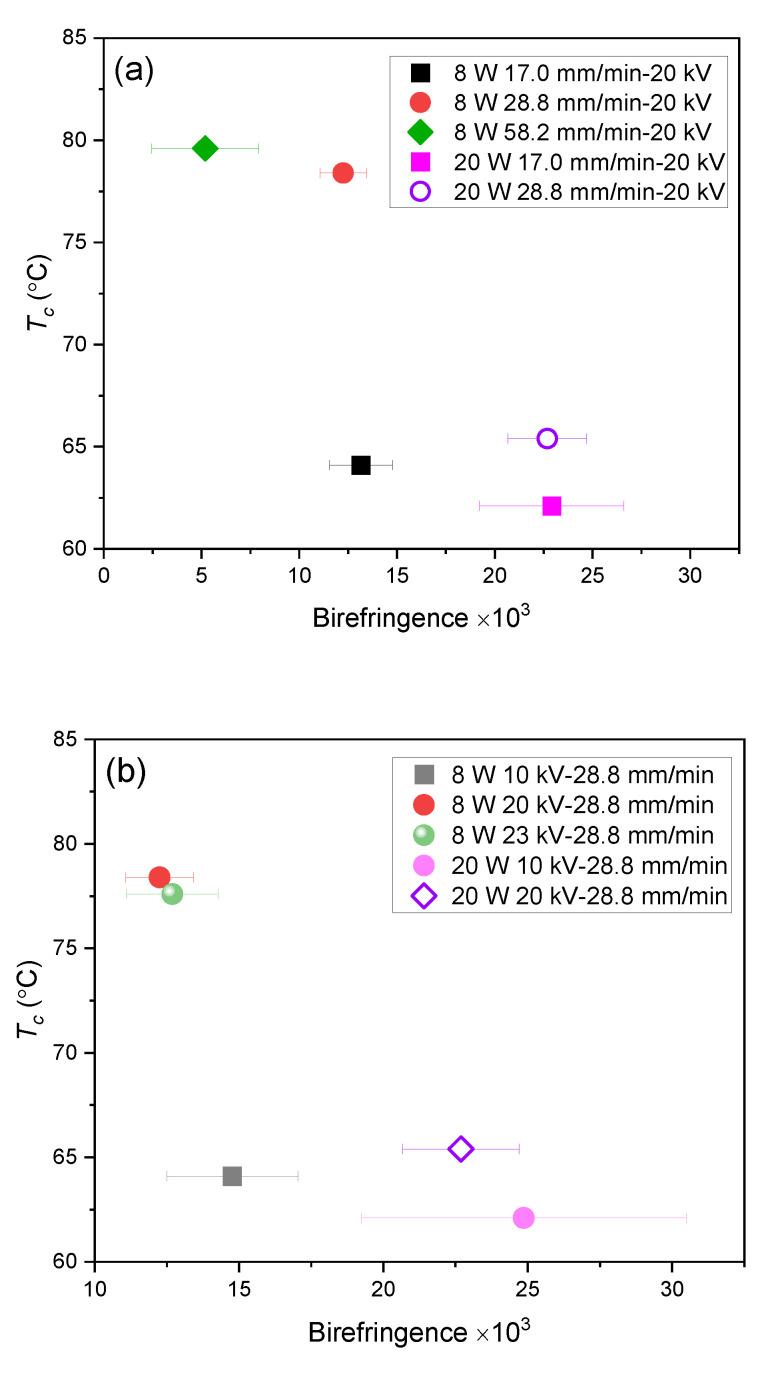

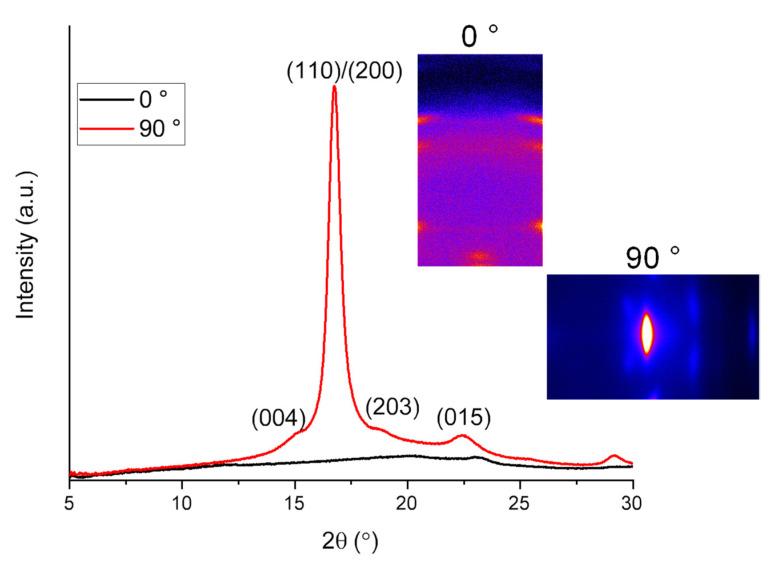

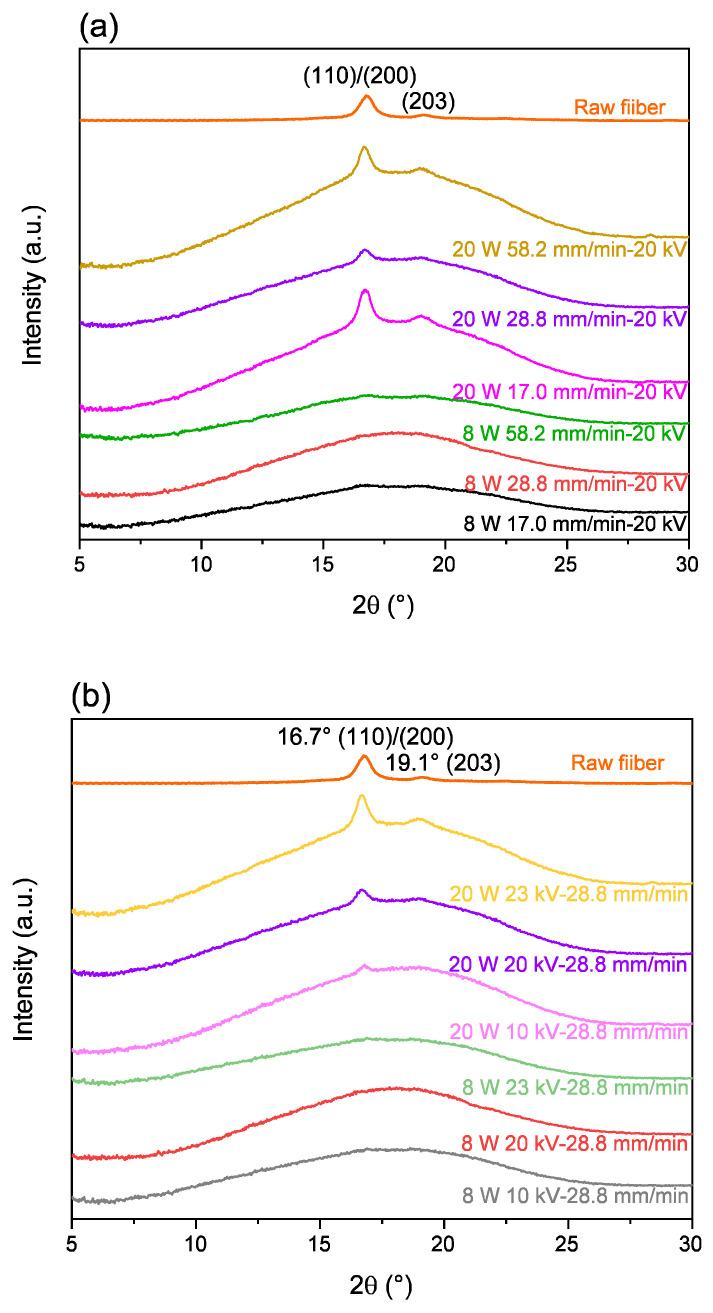

采用激光辅助熔体静电纺丝(LES)法制备聚(L-丙交酯-共-ε-己内酯)(PLCL)纤维。在此过程中,使用二氧化碳激光进行照射,并对PLCL原纤维施加电压。对纤维形成行为的原位观察表明,在低激光功率、施加电压和进料速率条件下,仅从溶胀区域形成单股射流,而随着这些参数的增加会产生多股射流和液滴。多股射流的形成导致制备出更细的纤维,在最佳条件下,可实现平均纤维直径为0.77μm,变异系数为17%,且不形成液滴。还基于原位观察结果以及对源自表面张力、电力、空气摩擦和惯性的力的考虑,对纺丝线上的张力和应力分布进行了估算。在溶胀区域顶点附近出现的较高张力和应力峰值对应于单股射流喷射条件下更细纤维的形成。对初生纤维的分子取向和结晶分析表明,根据纺丝条件会形成多种不同的高阶结构。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/10a1/9227632/4ec429d595dd/polymers-14-02511-g001.jpg
