一种基于智能眼镜的新型即时护理融合方法用于混合现实辅助靶向前列腺活检的评估:一项概念验证性试点研究。

Assessment of a novel smartglass-based point-of-care fusion approach for mixed reality-assisted targeted prostate biopsy: A pilot proof-of-concept study.

作者信息

Sparwasser P, Haack M, Frey L, Boehm K, Boedecker C, Huber T, Stroh K, Brandt M P, Mager R, Höfner T, Tsaur I, Haferkamp A, Borgmann H

机构信息

Department of Urology, University Medical Center Johannes Gutenberg University, Mainz, Germany.

Department of General, Visceral and Transplant Surgery, University Medical Center Johannes Gutenberg University, Mainz, Germany.

出版信息

Front Surg. 2022 Jul 22;9:892170. doi: 10.3389/fsurg.2022.892170. eCollection 2022.


DOI:10.3389/fsurg.2022.892170
PMID:35937598
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9354482/
Abstract

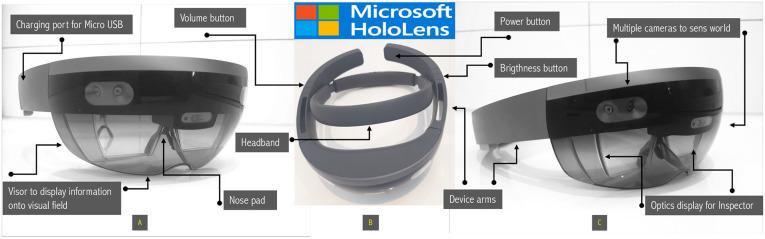

PURPOSE: While several biopsy techniques and platforms for magnetic resonance imaging (MRI)-guided targeted biopsy of the prostate have been established, none of them has proven definite superiority. Augmented and virtual reality (mixed reality) smartglasses have emerged as an innovative technology to support image-guidance and optimize accuracy during medical interventions. We aimed to investigate the benefits of smartglasses for MRI-guided mixed reality-assisted cognitive targeted biopsy of the prostate. METHODS: For prospectively collected patients with suspect prostate PIRADS lesions, multiparametric MRI was uploaded to a smartglass (Microsoft® Hololens I), and smartglass-assisted targeted biopsy (SMART TB) of the prostate was executed by generation of a cognitive fusion technology at the point-of-care. Detection rates of prostate cancer (PCA) were compared between SMART TB and 12-core systematic biopsy. Assessment of SMART-TB was executed by the two performing surgeons based on 10 domains on a 10-point scale ranging from bad (1) to excellent (10). RESULTS: SMART TB and systematic biopsy of the prostate were performed for 10 patients with a total of 17 suspect PIRADS lesions (PIRADS 3,  = 6; PIRADS 4, = 6; PIRADS 5,  = 5). PCA detection rate per core was significant ( < 0.05) higher for SMART TB (47%) than for systematic biopsy (19%). Likelihood for PCA according to each core of a PIRADS lesion (17%, PIRADS 3; 58%, PIRADS 4; 67%, PIRADS 5) demonstrated convenient accuracy. Feasibility scores for SMART TB were high for practicality (10), multitasking (10), execution speed (9), comfort (8), improvement of surgery (8) and image quality (8), medium for physical stress (6) and device handling (6) and low for device weight (5) and battery autonomy (4). CONCLUSION: SMART TB has the potential to increase accuracy for PCA detection and might enhance cognitive MRI-guided targeted prostate biopsy in the future.

摘要

目的:虽然已经建立了几种用于磁共振成像(MRI)引导下前列腺靶向活检的活检技术和平台,但没有一种被证明具有绝对优势。增强现实和虚拟现实(混合现实)智能眼镜已成为一种创新技术,可在医疗干预期间支持图像引导并优化准确性。我们旨在研究智能眼镜在MRI引导下混合现实辅助前列腺认知靶向活检中的益处。 方法:对于前瞻性收集的疑似前列腺PI-RADS病变患者,将多参数MRI上传到智能眼镜(微软®HoloLens I),并通过即时护理点的认知融合技术进行智能眼镜辅助的前列腺靶向活检(SMART TB)。比较SMART TB与12针系统活检的前列腺癌(PCA)检出率。由两位执行手术的外科医生根据10个领域对SMART-TB进行评估,评分范围从差(1)到优(10)。 结果:对10例患者共17个疑似PI-RADS病变(PI-RADS 3,=6;PI-RADS 4,=6;PI-RADS 5,=5)进行了SMART TB和前列腺系统活检。SMART TB的每针PCA检出率(47%)显著高于系统活检(19%)(<0.05)。根据PI-RADS病变的每针PCA可能性(17%,PI-RADS 3;58%,PI-RADS 4;67%,PI-RADS 5)显示出良好的准确性。SMART TB的可行性评分在实用性(10)、多任务处理(10)、执行速度(9)、舒适度(8)、手术改善(8)和图像质量(8)方面较高,在身体压力(6)和设备操作(6)方面中等,在设备重量(5)和电池续航(4)方面较低。 结论:SMART TB有可能提高PCA检测的准确性,并可能在未来增强MRI引导下的前列腺认知靶向活检。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5f6a/9354482/d594f6f47a86/fsurg-09-892170-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5f6a/9354482/cb67d7c2b5bc/fsurg-09-892170-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5f6a/9354482/d594f6f47a86/fsurg-09-892170-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5f6a/9354482/cb67d7c2b5bc/fsurg-09-892170-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5f6a/9354482/d594f6f47a86/fsurg-09-892170-g002.jpg
