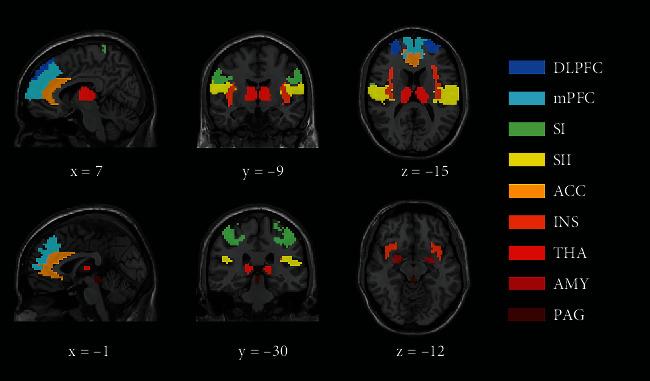

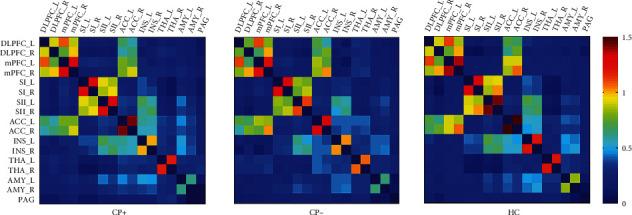

Bone metastatic pain is thought to be a severe type of cancer pain that has refractory characteristics and a long duration. This study is aimed at exploring the brain functional connectivity (FC) pattern in lung cancer patients with bone metastatic pain. In this study, 27 lung cancer patients with bone metastatic pain (CP+), 27 matched lung cancer patients without pain-related complaints (CP-), and 27 matched healthy controls (HC) were recruited. All participants underwent fMRI data acquisition and clinical assessments. One-way ANOVA or a Mann-Whitney test was applied to compare clinical data according to data distribution. Seventeen hypothesis-driven pain-related brain regions were selected as regions of interest (ROIs). FC values among pain-related brain regions across the three groups were computed by using ROI-ROI functional connectivity analysis. ANCOVA with a post hoc test was applied to compare FC differences among the three groups. < 0.05 indicated statistical significance. Correlation analysis was conducted to explore the potential relationship between the FC values and clinical characteristics. Except for years of education, no significant differences were revealed among the three groups in age, gender, or neuropsychological assessment. In the CP+ group, FC alterations were mainly concentrated in the dorsal lateral prefrontal cortex (DLPFC), anterior cingulate cortex (ACC), secondary somatosensory cortex (SII), and amygdala compared to the CP- group. Among these brain regions with statistical differences, FC between the right DLPFC and the right ACC showed a positive correlation with the duration of cancer pain in the CP+ group. In addition, in the CP- group, altered FC was found in the bilateral SII, ACC, and thalamus compared to the HC group. Altered FC in pain-related brain regions may be a brain pattern of bone metastatic pain and may be associated with the long duration of cancer pain.
