Synergistic Effect of Cerium Oxide for Improving the Fire-Retardant, Mechanical and Ultraviolet-Blocking Properties of EVA/Magnesium Hydroxide Composites.

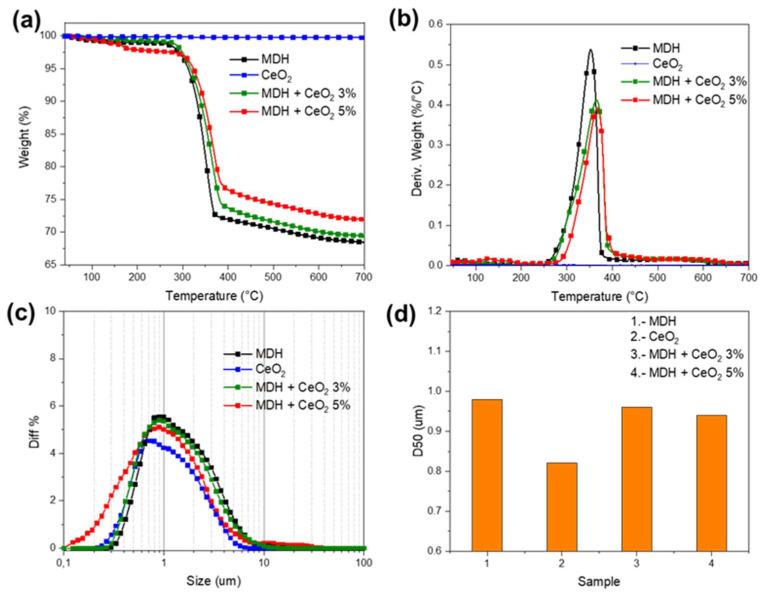

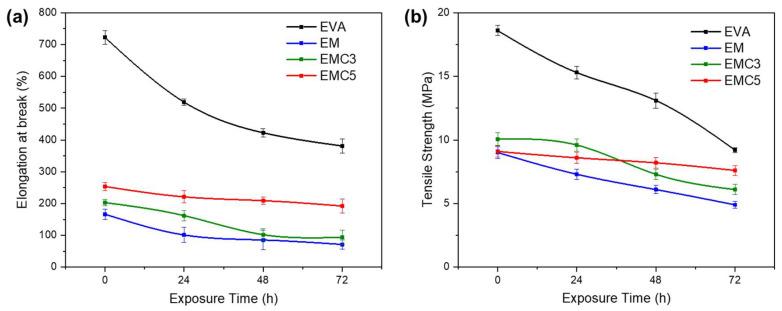

Rare earth oxide particles have received important attention in recent years, and due to the wide diversity of promising applications, the need for this kind of material is predicted to expand as the requirements to use the current resources become more demanding. In this work, cerium oxide (CeO) was introduced into ethylene-vinyl acetate (EVA)/magnesium hydroxide (MDH) composites for enhancing the flame retardancy, mechanical properties and anti-ultraviolet aging performance. The target EVA/MDH/CeO composites were prepared by extrusion and injection molding, and the effects of the addition of the CeO were explored by thermogravimetric analysis (TGA), Differential Scanning Calorimetry (DSC), X-ray Diffraction (XRD), limiting oxygen index (LOI), UL-94, cone calorimetry test, and anti-ultraviolet aging test. Typically, the incorporation of the CeO allows a significant increase of the elongation at break and Young's modulus compared with EVA/MDH by 52.25% and 6.85%, respectively. The pHRR remarkably decreased from 490.6 kW/m for EVA/MDH to 354.4 kW/m for EVA/MDH/CeO composite. It was found that the CeO presents excellent synergism with MDH in the composites for the anti-UV properties in terms of mechanical properties preservation. Notably, the combination of CeO with MDH is a novel and simple method to improve the filler-polymer interaction and dispersion, which resulted in the improvement of the mechanical properties, flame retardancy and the anti-ultraviolet aging performance of the composites.
