Iron Removal from Metallurgical Grade Silicon Melts Using Synthetic Slags and Oxygen Injection.

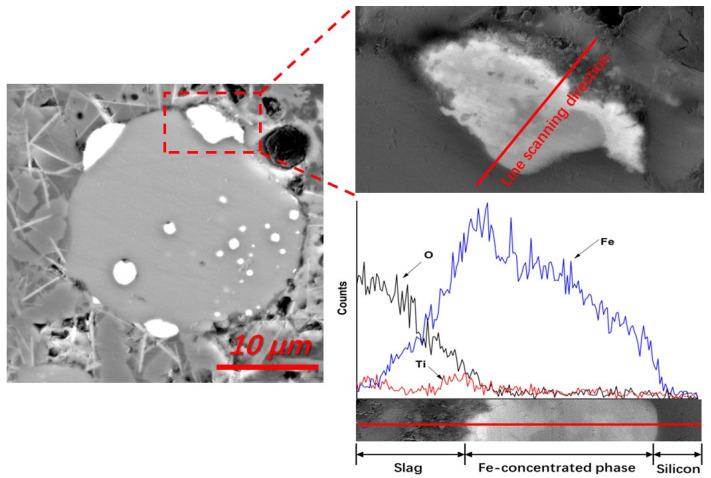

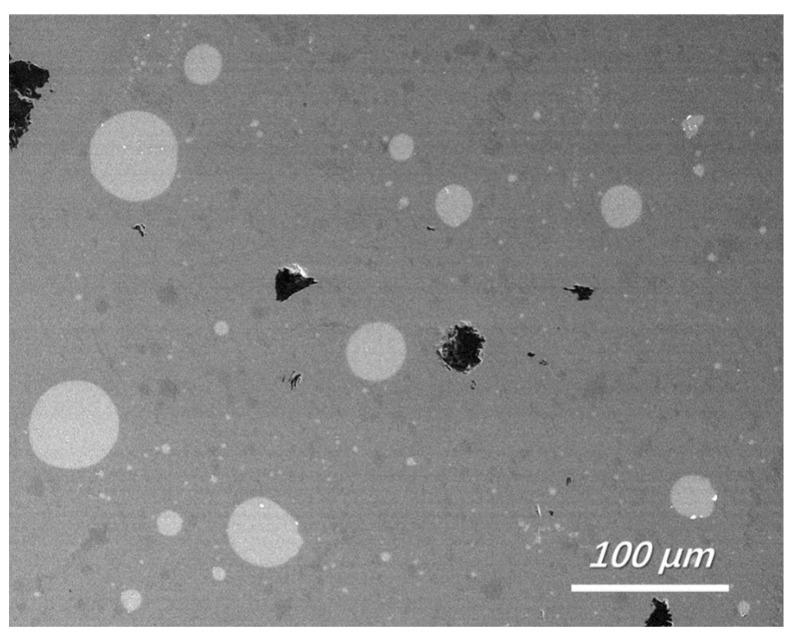

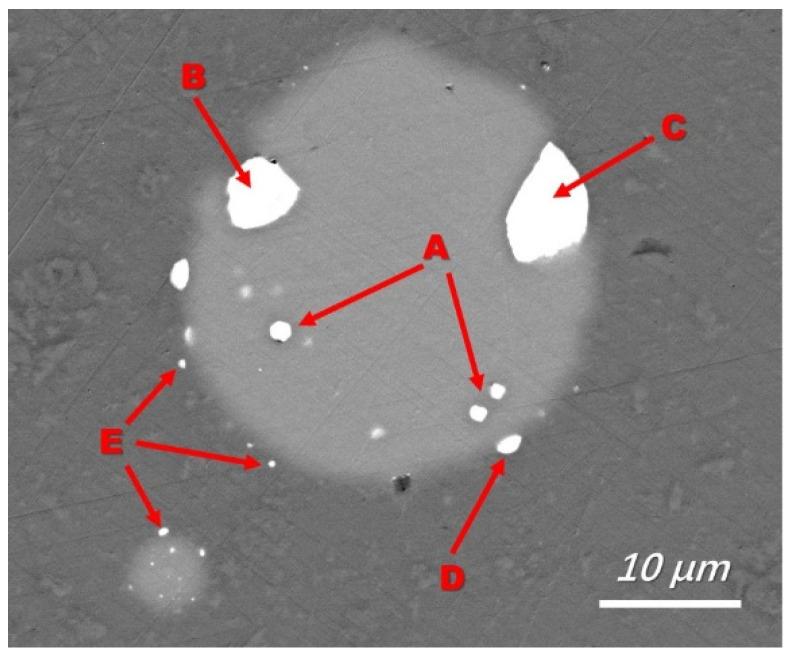

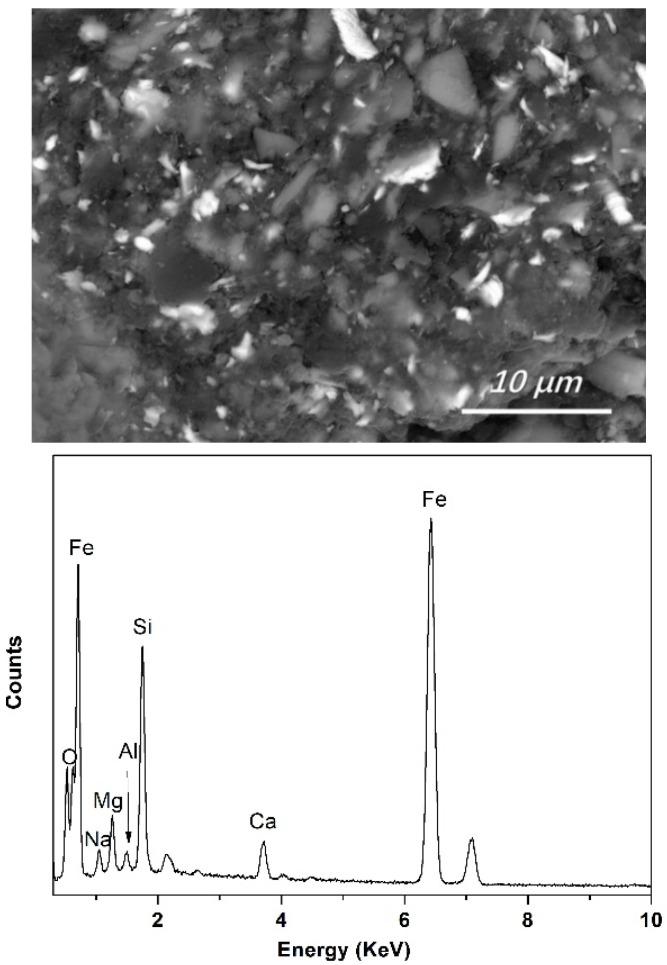

Novel SiO-CaO-CaF-RO-MgO based synthetic slags (RO represents alkali metal oxides) with varied binary basicity values were used with oxygen injection to refine silicon melts and remove Fe from metallurgical-grade silicon. Silicon samples and slags at the silicon-slag interfaces were obtained during refinement. The compositions of the silicon samples were analyzed, and the quenched slag samples and mild cooling slags from the final crucible were inspected using scanning electron microscopy and energy dispersive X-ray spectroscopy. After 15 min of refinement, the Fe removal rate ranged from 52.3 to 60.1 wt%. During the refining process, the Fe-concentrated phase formed within the silicon droplets and was then transferred to the silicon-slag interfaces and wetted with slags. The Fe-concentrated phase at the silicon-slag interface can dissolve directly in the slags. It can also be transferred into the slag phase in the form of droplets, which can be affected by the binary basicity of the slags. Ti removal demonstrated a similar mechanism. Fe-bearing crystals were not detected in the quenched slag samples obtained during refinement, while complex Fe-bearing phases were detected in the final slag. This study demonstrates Fe removal from metallurgical-grade Si using slag refining methods and reveals the removal mechanism during the refinement.
