Chauhan Nagendra S, Lebedev Oleg I, Kovnir Kirill, Pyrlin Sergey V, Marques Luis S A, Ramos Marta M D, Korgel Brian A, Kolen'ko Yury V
International Iberian Nanotechnology Laboratory (INL) Braga 4715-330 Portugal
Laboratoire CRISMAT, UMR 6508, CNRS-Ensicaen Caen 14050 France.
Nanoscale Adv. 2020 Nov 2;2(12):5699-5709. doi: 10.1039/d0na00691b. eCollection 2020 Dec 15.

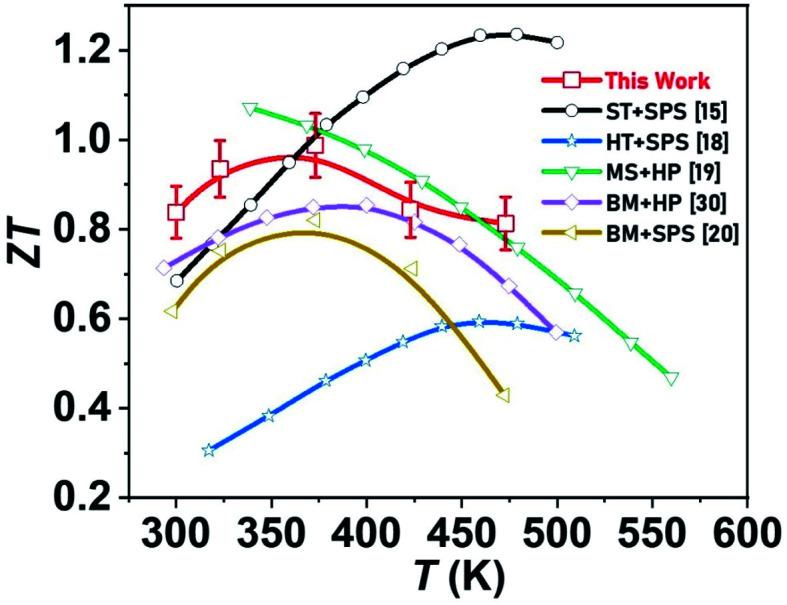

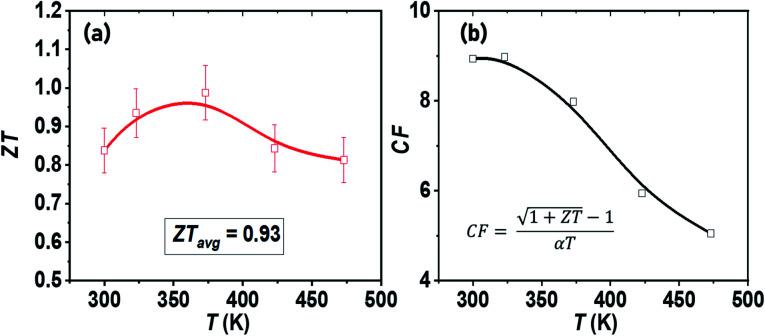

Colloidal synthesis is harnessed for the gram-scale preparation of hexagonal-shaped plate-like BiTeSe particles, yielding nearly 5 g of the product in one experiment. The resultant textured particles are highly crystalline, phase-pure, chemically uniform, and can serve as a starting material for the preparation of bulk thermoelectrics for room temperature applications. The consolidation occurs spark plasma sintering, which affords nanostructured n-type BiTeSe material exhibiting a high figure of merit ≈ 1 at 373 K with an average ≈ 0.93 (300-473 K). Our experimental and theoretical studies indicate that the high thermoelectric performance is attributed to a favorable combination of the resultant transport properties. Specifically, bottom-up formation of the plate-like particles results in the substantial reduction of thermal conductivity by nanostructuring as observed experimentally and can be ascribed to phonon scattering at grain boundaries and suppressed bipolar conduction. When coupled with high electrical conductivity, which is preserved at the bulk scale as confirmed by calculations, these factors boost the thermoelectric performance of the as-synthesized n-type BiTeSe bulk nanostructured alloy to the state-of-the-art level. The combination of a newly developed scalable colloidal synthesis with optimized spark plasma sintering constitutes a convenient route to nanostructured bulk thermoelectrics, which is an interesting pathway for the preparation of simple and complex thermoelectric chalcogenides.
胶体合成法用于克级制备六边形板状BiTeSe颗粒,一次实验可产出近5克产物。所得的纹理颗粒具有高度结晶性、相纯度高、化学性质均匀,可作为制备用于室温应用的块状热电材料的起始原料。通过火花等离子烧结进行固结,得到纳米结构的n型BiTeSe材料,在373 K时具有高优值≈1,平均优值≈0.93(300 - 473 K)。我们的实验和理论研究表明,高热电性能归因于所得传输特性的有利组合。具体而言,如实验观察到的那样,板状颗粒的自下而上形成通过纳米结构化导致热导率大幅降低,这可归因于晶界处的声子散射和抑制的双极传导。当与高电导率相结合时,计算结果证实其在块状尺度上得以保留,这些因素将合成的n型BiTeSe块状纳米结构合金的热电性能提升至先进水平。新开发的可扩展胶体合成与优化的火花等离子烧结相结合,构成了一条通往纳米结构块状热电材料的便捷途径,这是制备简单和复杂热电硫族化物的一条有趣途径。
