用于高效紫外光电探测器的聚合物纳米复合石墨烯量子点

Polymer Nanocomposite Graphene Quantum Dots for High-Efficiency Ultraviolet Photodetector.

作者信息

Vandana Molahalli, Devendrappa Hundekal, Padova Paola De, Hegde Gurumurthy

机构信息

Department of Chemistry, CHRIST (Deemed to Be University), Hosur Road, Bangalore 560029, India.

Centre for Advanced Research and Development (CARD), CHRIST (Deemed to Be University), Hosur Road, Bangalore 560029, India.

出版信息

Nanomaterials (Basel). 2022 Sep 13;12(18):3175. doi: 10.3390/nano12183175.

Abstract

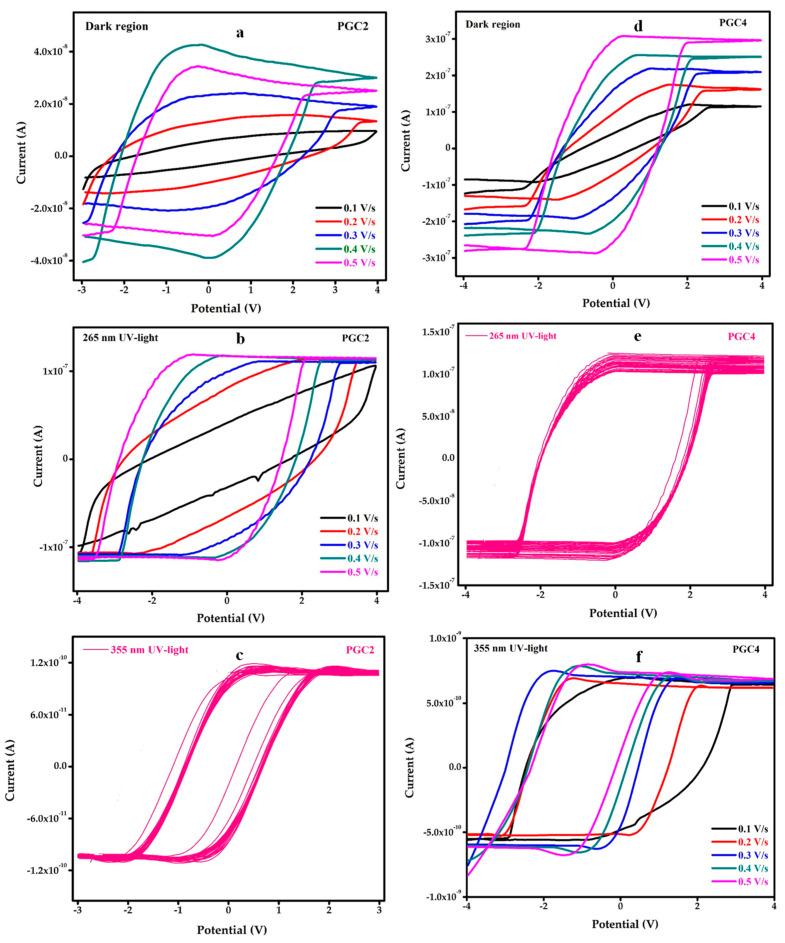

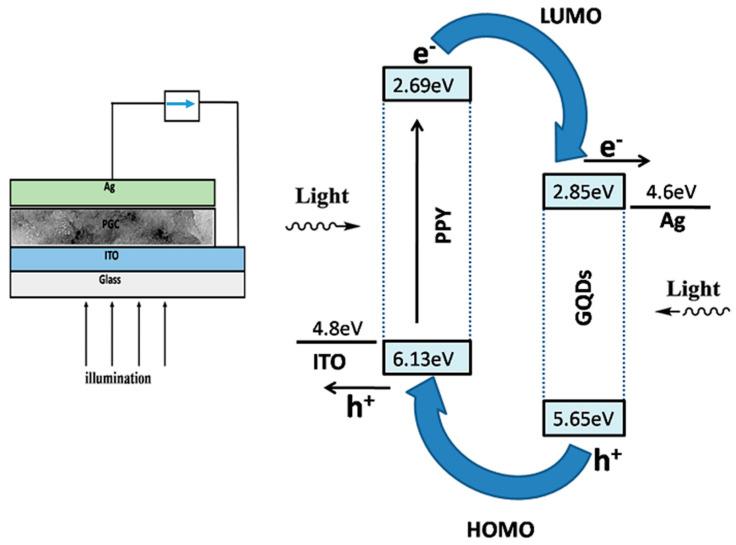

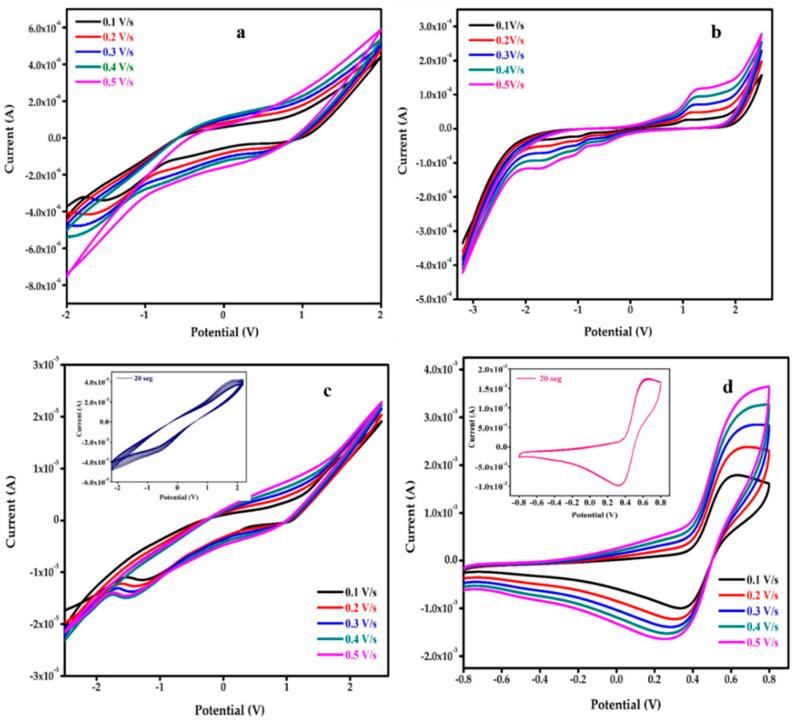

Influence on photocurrent sensitivity of hydrothermally synthesized electrochemically active graphene quantum dots on conjugated polymer utilized for a novel single-layer device has been performed. Fabrications of high-performance ultraviolet photodetector by depositing the polypyrrole-graphene quantum dots (PPy-GQDs) active layer of the ITO electrode were exposed to an Ultraviolet (UV) source with 265 and 355 nm wavelengths for about 200 s, and we examined the time-dependent photoresponse. The excellent performance of GQDs was exploited as a light absorber, acting as an electron donor to improve the carrier concentration. PGC4 exhibits high photoresponsivity up to the 2.33 µA/W at 6 V bias and the photocurrent changes from 2.9 to 18 µA. The electrochemical measurement was studied using an electrochemical workstation. The cyclic voltammetry (CV) results show that the hysteresis loop is optically tunable with a UV light source with 265 and 355 nm at 0.1 to 0.5 V/s. The photocurrent response in PPy-GQDs devices may be applicable to optoelectronics devices.

摘要

研究了水热合成的具有电化学活性的石墨烯量子点对用于新型单层器件的共轭聚合物光电流灵敏度的影响。通过在ITO电极上沉积聚吡咯-石墨烯量子点(PPy-GQDs)活性层来制备高性能紫外光电探测器,将其暴露于波长为265和355 nm的紫外(UV)光源下约200 s,我们研究了随时间变化的光响应。石墨烯量子点的优异性能被用作光吸收剂,作为电子供体来提高载流子浓度。PGC4在6 V偏压下表现出高达2.33 µA/W的高光响应率,光电流从2.9 µA变化到18 µA。使用电化学工作站进行了电化学测量。循环伏安法(CV)结果表明,在0.1至0.5 V/s的扫描速率下,265和355 nm的紫外光源可使滞后回线发生光学调谐。PPy-GQDs器件中的光电流响应可能适用于光电器件。
