Numerical simulation of the influence of building-tree arrangements on wind velocity and PM dispersion in urban communities.

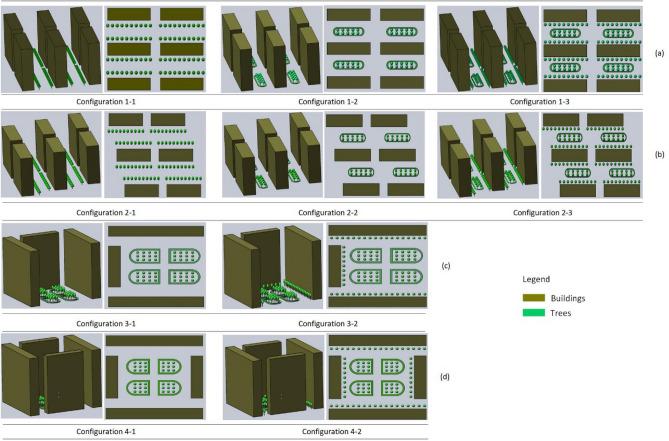

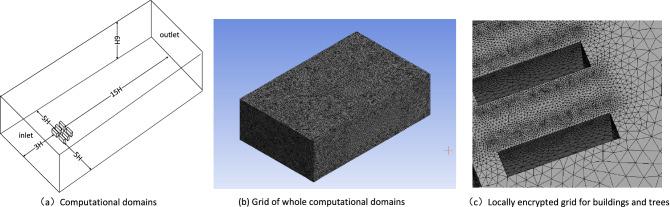

Airflow behavior and outdoor PM dispersion depend significantly on the building-tree layouts and orientation towards the prevailing wind conditions. To investigate this issue, the present work evaluates the aerodynamic effect of different building-tree layouts on the outdoor PM dispersions in the urban communities of Shijiazhuang City, China. The adopted numerical CFD technique was based on the standard k-ε model and the Disperse Phase Model (DPM). For this study, ten different building-tree arrangements were conceptualized and all these configurations were simulated by using Ansys Fluent software to quantify the implications on the outdoor PM dispersion due to their presence. The results have shown that: (1) a wide building interval space could benefit the air ventilation and thus decrease PM concentrations, however, this effectiveness is highly influenced by the presence of the trees; (2) the trees on the leeward side of a building tend to increase the local wind velocity and decrease the pedestrian-level PM concentrations, while those on the windward side tend to decrease the wind velocity. The small distance with trees in the central space of the community forms a wind shelter, hindering the particle dispersion; and (3) the configuration of parallel type buildings with clustered tree layouts in the narrow central space is most unfavorable to the air ventilation, leading to larger areas affected by excessive PM concentration.
