Real-time acoustic monitoring with telemetry to mitigate potential effects of seismic survey sounds on marine mammals: a case study offshore Sakhalin Island.

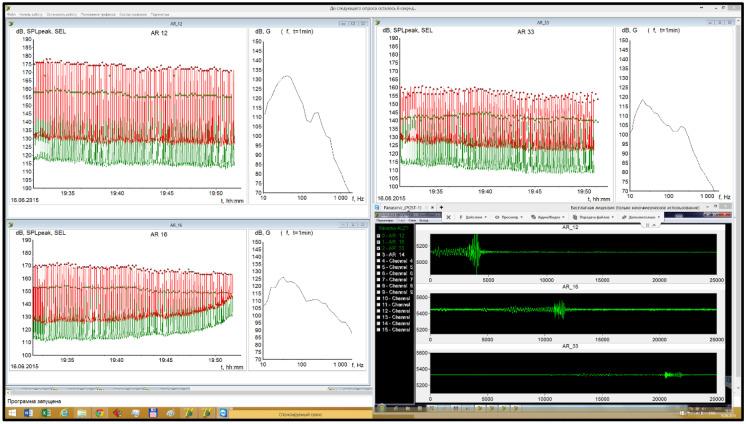

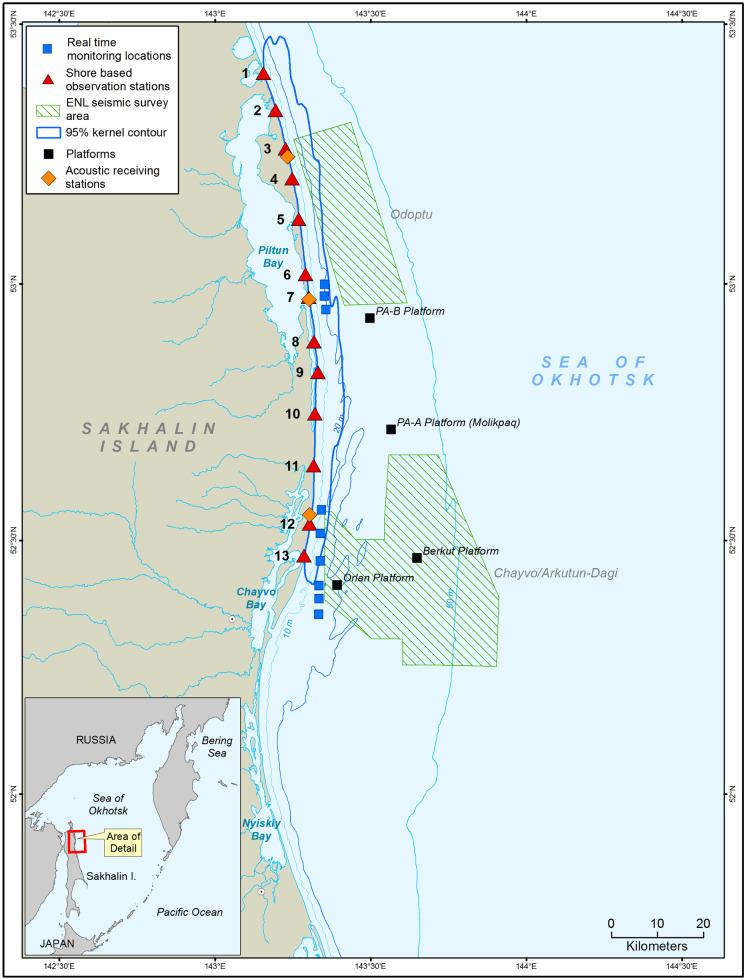

Exxon Neftegas Ltd. (ENL) carried out three 4D seismic surveys during the summer of 2015. Seismic operations in two of these fields (Odoptu and Chayvo) ensonified the nearshore feeding area of Korean-Okhotsk (western) gray whales (Eschrichtius robustus), potentially disturbing feeding activities. Following model-based optimization of the source design to minimize its lateral acoustic footprint, pre-season modeling was used to compute the acoustic exposure along each survey line. Real-time acoustic data facilitated implementation of mitigation measures aimed to minimize disturbance of whales. Acoustic data originated from underwater recorders deployed on the seafloor. Two complementary approaches were used to transmit recorded sound data to a computer housed at the Central Post (CP), where decisions regarding mitigation shut downs were made. In the first approach, a limited bandwidth (2-2000 Hz) sampling of the data was transmitted via cable to a surface buoy, which relayed these data to a shore station up to 15 km away via digital VHF telemetry. At the shore station, acoustic impulses from the seismic surveys were processed to compute impulse characteristics in the form of estimates of sound exposure level and peak sound pressure level, as well as one-minute-average 1/3-octave power spectral density coefficients, which were then transmitted to the CP via the internet. In the second, the pulse characteristics were computed through algorithms running on an onboard processor in each recorder's surface buoy and sent directly to the CP computer via an Iridium satellite uplink. Both methods of data transfer proved viable, but Iridium transmission achieved the goal without the need for any shore based relay stations and is therefore more operationally efficient than VHF transmission. At the CP, analysts used the real-time acoustic data to calibrate and adjust the output of pre-season acoustical model runs. The acoustic footprint for the active seismic source, advancing synchronously with the motion of the seismic vessel and changing as the sound propagation environment changed, was computed from the calibrated and adjusted model output and integrated through the software Pythagoras with locations of gray whales provided by shore-based observers. This enabled analysts to require air gun array shutdowns before whales were exposed to mean square sound pressure levels greater than the behavioral response threshold of 163 dB re 1 μPa. The method described here provides a realistic means of mitigating the possible effects of air guns at a behavioral response level, whereas most seismic surveys rely on pre-established mitigation radii to manage the risk of injury to a whale.
