Simulation of a Miniature Linear Ion Trap with Half-Round Rod Electrodes.

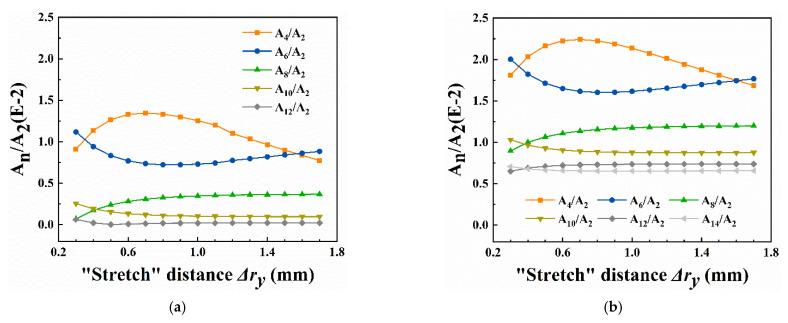

The miniaturization of ion trap mass analyzers is an important direction in the development of mass spectrometers. In this work, we proposed two models of miniaturized HreLIT with a field radius of about 2 mm based on the existing research on conventional HreLIT and other ion traps, one with ions ejection slits on one pair of electrodes only (2-slit model) and the other with the same slits on all electrodes (4-slit model). The relationship of mass resolution with and the "stretch" distance of electrodes in the ejection direction is investigated by theoretical simulations. Trends of electric fields inside the ion traps were discussed as well. The comparable maximum resolution is observed at = 2/1.4 in both models, but stretching simulations revealed that the peak resolution of the 2-slit model was higher than that of the other model by about 8%. The highest value of 517 was obtained when stretching 1.1 mm. Furthermore, the resolution of ions with / = 119 could exceed 1000 when the scan rate was reduced to 800 Th/s. The mass spectrometry capability of miniature HreLIT has been confirmed theoretically, and it laid the foundation for the subsequent fabrication with MEMS technology.
