Câmara Cardozo Jussara, da Silva Djalma R, Martínez-Huitle Carlos A, Quiroz Marco A, Dos Santos Elisama V
Institute of Chemistry, Federal University of Rio Grande do Norte, Lagoa Nova, Natal 59078-970, Brazil.
National Institute for Alternative Technologies of Detection, Toxicological Evaluation and Removal of Micropollutants and Radioactives (INCT-DATREM), UNESP, Araraquara 14800-900, Brazil.
Materials (Basel). 2022 Oct 24;15(21):7445. doi: 10.3390/ma15217445.

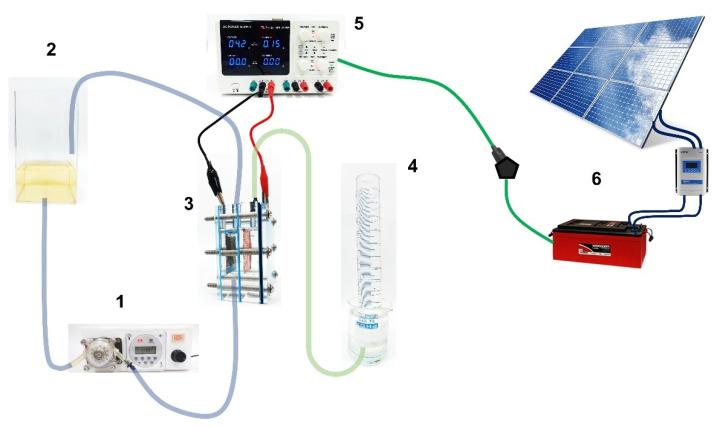

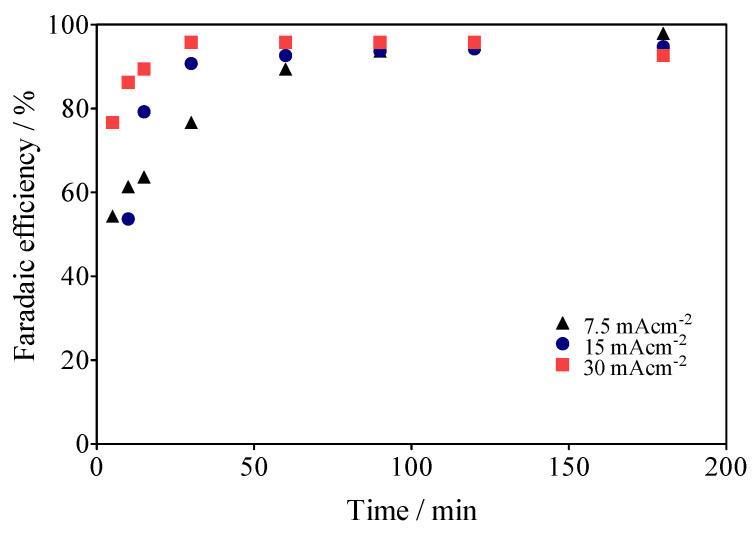

In this study, for the first time, the production of green hydrogen gas (H) in the cathodic compartment, in concomitance with the electrochemical oxidation (EO) of an aqueous solution containing Calcon dye at the anodic compartment, was studied in a PEM-type electrochemical cell driven by a photovoltaic (PV) energy source. EO of Calcon was carried out on a Nb/BDD anode at different current densities (7.5, 15 and 30 mA cm), while a stainless steel (SS) cathode was used for green H production. The results of the analysis by UV-vis spectroscopy and total organic carbon (TOC) clearly showed that the electrochemical oxidation (EO) of the Calcon dye after 180 min of electrolysis time by applying 30 mA cm reached up to 90% of degradation and 57% of TOC removal. Meanwhile, under these experimental conditions, a green H production greater than 0.9 L was achieved, with a Faradaic efficiency of 98%. The hybrid electrolysis strategy is particularly attractive in the context of a circular economy, as these can be coupled with the use of more complex water matrices to transform organic depollution into an energy resource to produce H as a chemical energy carrier.
在本研究中,首次在由光伏(PV)能源驱动的质子交换膜(PEM)型电化学电池中,研究了在阴极室产生绿色氢气(H),同时在阳极室对含有钙黄绿素染料的水溶液进行电化学氧化(EO)的情况。在不同电流密度(7.5、15和30 mA cm)下,在Nb/BDD阳极上对钙黄绿素进行电化学氧化,同时使用不锈钢(SS)阴极来产生绿色氢气。紫外可见光谱分析和总有机碳(TOC)分析结果清楚地表明,在施加30 mA cm的电流密度下电解180分钟后,钙黄绿素染料的电化学氧化降解率达到90%,TOC去除率达到57%。同时,在这些实验条件下,绿色氢气产量超过0.9 L,法拉第效率为98%。在循环经济背景下,这种混合电解策略特别具有吸引力,因为它可以与使用更复杂的水基质相结合,将有机污染物转化为能源资源,以产生氢气作为化学能量载体。
