通过对双表面改性AlO/SiO叠层AlGaN/GaN MOS-HEMT中泄漏传导机制的明确研究,实现了I的显著降低。

Remarkable Reduction in I with an Explicit Investigation of the Leakage Conduction Mechanisms in a Dual Surface-Modified AlO/SiO Stack Layer AlGaN/GaN MOS-HEMT.

作者信息

Mazumder Soumen, Pal Parthasarathi, Lee Kuan-Wei, Wang Yeong-Her

机构信息

Department of Electrical Engineering, Institute of Microelectronics, National Cheng-Kung University, Tainan 701, Taiwan.

Department of Electronic Engineering, I-Shou University, Kaohsiung 840, Taiwan.

出版信息

Materials (Basel). 2022 Dec 19;15(24):9067. doi: 10.3390/ma15249067.

Abstract

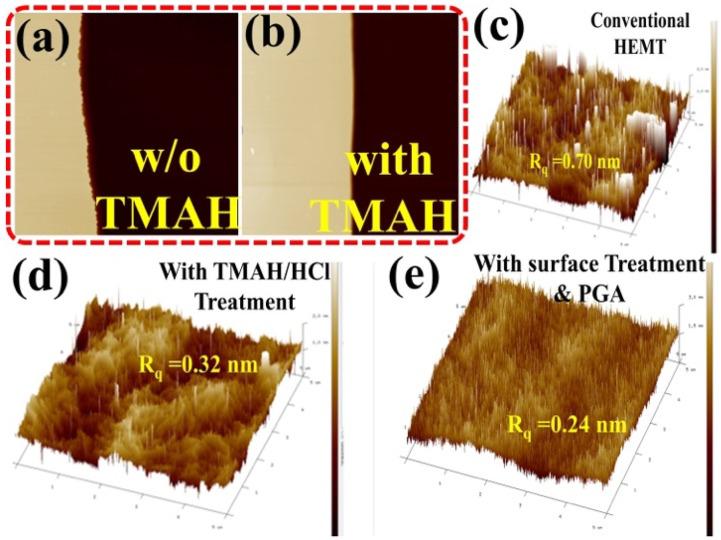

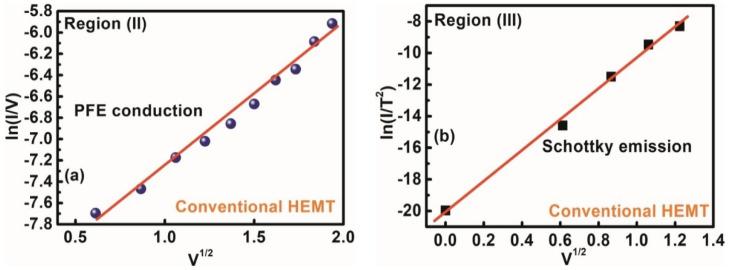

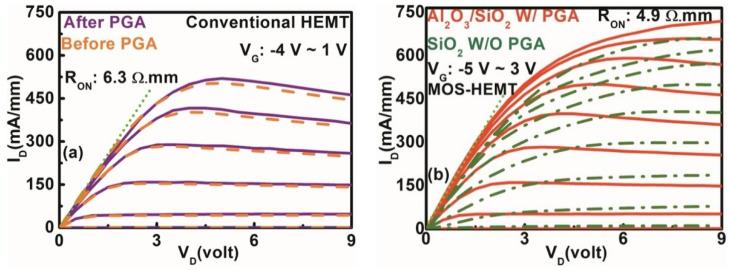

We demonstrated the performance of an Al2O3/SiO2 stack layer AlGaN/GaN metal−oxide semiconductor (MOS) high-electron-mobility transistor (HEMT) combined with a dual surface treatment that used tetramethylammonium hydroxide (TMAH) and hydrochloric acid (HCl) with post-gate annealing (PGA) modulation at 400 °C for 10 min. A remarkable reduction in the reverse gate leakage current (IG) up to 1.5×10−12 A/mm (@ VG = −12 V) was observed in the stack layer MOS-HEMT due to the combined treatment. The performance of the dual surface-treated MOS−HEMT was significantly improved, particularly in terms of hysteresis, gate leakage, and subthreshold characteristics, with optimized gate annealing treatment. In addition, an organized gate leakage conduction mechanism in the AlGaN/GaN MOS−HEMT with the Al2O3/SiO2 stack gate dielectric layer was investigated before and after gate annealing treatment and compared with the conventional Schottky gate. The conduction mechanism in the reverse gate bias was Poole−Frankel emission for the Schottky-gate HEMT and the MOS−HEMT before annealing. The dominant conduction mechanism was ohmic/Poole-Frankel at low/medium forward bias. Meanwhile, gate leakage was governed by the hopping conduction mechanism in the MOS−HEMT without gate annealing modulation at a higher forward bias. After post-gate annealing (PGA) treatment, however, the leakage conduction mechanism was dominated by trap-assisted tunneling at the low to medium forward bias region and by Fowler−Nordheim tunneling at the higher forward bias region. Moreover, a decent product of maximum oscillation frequency and gate length (fmax × LG) was found to reach 27.16 GHz∙µm for the stack layer MOS−HEMT with PGA modulation. The dual surface-treated Al2O3/SiO2 stack layer MOS−HEMT with PGA modulation exhibited decent performance with an IDMAX of 720 mA/mm, a peak extrinsic transconductance (GMMAX) of 120 mS/mm, a threshold voltage (VTH) of −4.8 V, a higher ION/IOFF ratio of approximately 1.2×109, a subthreshold swing of 82 mV/dec, and a cutoff frequency(ft)/maximum frequency of (fmax) of 7.5/13.58 GHz.

摘要

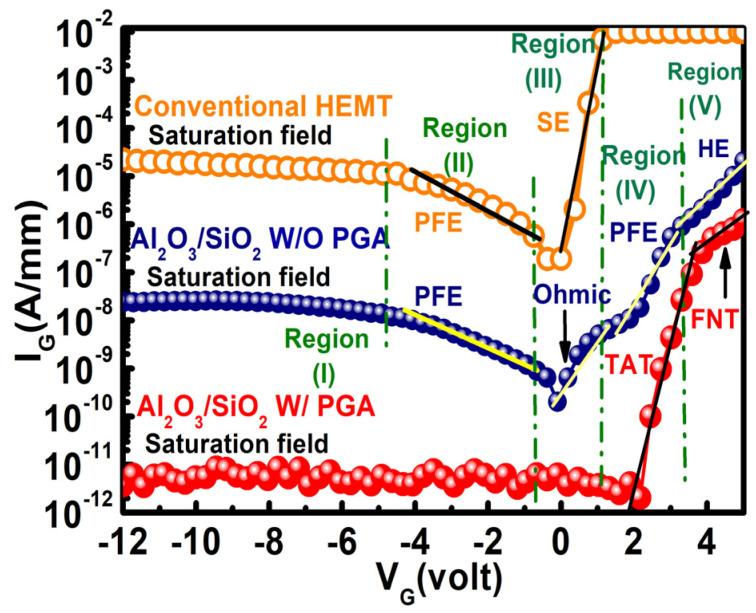

我们展示了一种Al2O3/SiO2叠层AlGaN/GaN金属氧化物半导体(MOS)高电子迁移率晶体管(HEMT)的性能,该晶体管结合了双重表面处理,即使用氢氧化四甲铵(TMAH)和盐酸(HCl),并在400°C下进行10分钟的栅极后退火(PGA)调制。由于这种联合处理,在叠层MOS-HEMT中观察到反向栅极漏电流(IG)显著降低,在VG = -12 V时降至1.5×10−12 A/mm。经过优化的栅极退火处理后,双重表面处理的MOS-HEMT的性能得到了显著改善,特别是在滞后、栅极泄漏和亚阈值特性方面。此外,研究了具有Al2O3/SiO2叠层栅极介质层的AlGaN/GaN MOS-HEMT在栅极退火处理前后的有序栅极泄漏传导机制,并与传统肖特基栅极进行了比较。对于肖特基栅极HEMT和退火前的MOS-HEMT,反向栅极偏置下的传导机制为普尔-弗兰克尔发射。在低/中等正向偏置下,主导传导机制为欧姆/普尔-弗兰克尔。同时,在较高正向偏置下,无栅极退火调制的MOS-HEMT中的栅极泄漏由跳跃传导机制控制。然而,经过栅极后退火(PGA)处理后,低至中等正向偏置区域的泄漏传导机制主要由陷阱辅助隧穿主导,而在较高正向偏置区域则由福勒-诺德海姆隧穿主导。此外,对于具有PGA调制的叠层MOS-HEMT,发现最大振荡频率与栅极长度的乘积(fmax × LG)达到27.16 GHz∙µm。具有PGA调制的双重表面处理的Al2O3/SiO2叠层MOS-HEMT表现出良好的性能,IDMAX为720 mA/mm,峰值本征跨导(GMMAX)为120 mS/mm,阈值电压(VTH)为 -4.8 V,更高的ION/IOFF比约为1.2×109,亚阈值摆幅为82 mV/dec,截止频率(ft)/最大频率(fmax)为7.5/13.58 GHz。
