一种基于十字形介质带谐振器的双频段、双极化滤波天线。

A Dual-Band, Dual-Polarized Filtering Antenna Based on Cross-Shaped Dielectric Strip Resonator.

作者信息

Jin Lixin, Tang Hui, Shi Jin, Lin Longlong, Xu Kai

机构信息

School of Information Science and Technology, Nantong University, Nantong 226019, China.

Research Center for Intelligent Information Technology, Nantong University, Nantong 226019, China.

出版信息

Micromachines (Basel). 2022 Nov 25;13(12):2069. doi: 10.3390/mi13122069.

Abstract

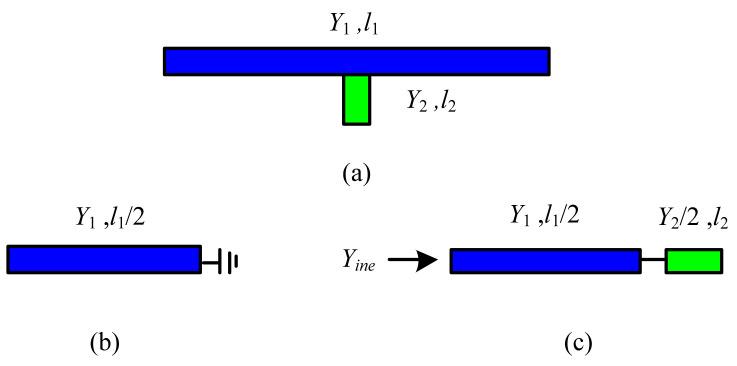

A dual-band, dual-polarized filtering antenna with a cross-shaped dielectric strip resonator is proposed. The dual-band filtering radiation function is achieved by utilizing the odd and even modes of the stub loaded microstrip resonator to excite the TM and TM mode in each polarization direction of the cross-shaped dielectric strip resonator. The cross-shaped dielectric strip resonator is synthesized by the E-field distributions and the magnitude comparison along different polarization directions, which can ensure the isolation between two polarizations. Compared with dual-band filtering dielectric antennas, the proposed antenna has the characteristic of dual-polarized radiation, as well as a low profile. A prototype is fabricated and measured, which operates at 3.5 GHz and 4.9 GHz with the fractional bandwidths (FBW) of 5.40% and 2.03%, respectively, and the gains of these two bands are 6.4 dBi and 6.2 dBi, respectively. The two radiation nulls are located at 4.4 GHz and 5.1 GHz. Furthermore, the measured isolation between the two ports in the frequency band can achieve 16 dB.

摘要

提出了一种具有十字形介质带谐振器的双频、双极化滤波天线。通过利用加载短截线的微带谐振器的奇模和偶模来激发十字形介质带谐振器每个极化方向上的TM和TM模,实现了双频滤波辐射功能。十字形介质带谐振器是根据电场分布和沿不同极化方向的幅度比较合成的,这可以确保两个极化之间的隔离。与双频滤波介质天线相比,所提出的天线具有双极化辐射特性以及低剖面特性。制作并测量了一个原型,其工作在3.5GHz和4.9GHz,分数带宽(FBW)分别为5.40%和2.03%,这两个频段的增益分别为6.4dBi和6.2dBi。两个辐射零点位于4.4GHz和5.1GHz。此外,在该频段内两个端口之间的测量隔离度可达到16dB。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fc6b/9784387/95ba6715edca/micromachines-13-02069-g001.jpg
