针对前列腺癌 TomoHelical 计划中几何不确定性的鲁棒优化的有效性。

Effectiveness of robust optimization against geometric uncertainties in TomoHelical planning for prostate cancer.

机构信息

Department of Medical Physics, Shonan Kamakura General Hospital, Kamakura City, Kanagawa, Japan.

Graduate School of Human Health Sciences, Tokyo Metropolitan University, Arakawa-ku, Tokyo, Japan.

出版信息

J Appl Clin Med Phys. 2023 Apr;24(4):e13881. doi: 10.1002/acm2.13881. Epub 2022 Dec 28.

Abstract

BACKGROUND

Geometrical uncertainties in patients can severely affect the quality of radiotherapy.

PURPOSE

We evaluated the dosimetric efficacy of robust optimization for helical intensity-modulated radiotherapy (IMRT) planning in the presence of patient setup uncertainty and anatomical changes.

METHODS

Two helical IMRT plans for 10 patients with localized prostate cancer were created using either minimax robust optimization (robust plan) or a conventional planning target volume (PTV) margin approach (PTV plan). Plan robustness was evaluated by creating perturbed dose plans with setup uncertainty from isocenter shifts and anatomical changes due to organ variation. The magnitudes of the geometrical uncertainties were based on the patient setup uncertainty considered during robust optimization, which was identical to the PTV margin. The homogeneity index, and target coverage (TC, defined as the V100% of the clinical target volume), and organs at risk (OAR; rectum and bladder) doses were analyzed for all nominal and perturbed plans. A statistical t-test was performed to evaluate the differences between the robust and PTV plans.

RESULTS

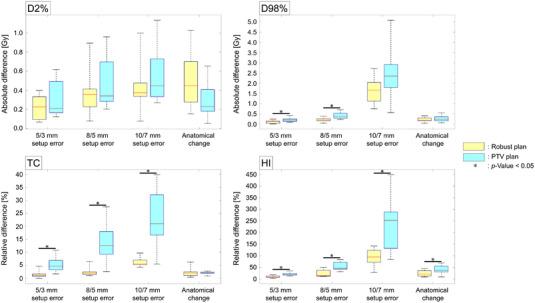

Comparison of the nominal plans showed that the robust plans had lower OAR doses and a worse homogeneity index and TC than the PTV plans. The evaluations of robustness that considered setup errors more than the PTV margin demonstrated that the worst-case perturbed scenarios for robust plans had significantly higher TC while maintaining lower OAR doses. However, when anatomical changes were considered, improvement in TC from robust optimization was not observed in the worst-case perturbed plans.

CONCLUSIONS

For helical IMRT planning in localized prostate cancer, robust optimization provides benefits over PTV margin-based planning, including better OAR sparing, and increased robustness against systematic patient-setup errors.

摘要

背景

患者的几何不确定性会严重影响放射治疗的质量。

目的

我们评估了在存在患者摆位不确定性和解剖结构变化的情况下,螺旋强度调制放疗(IMRT)计划中稳健优化的剂量学效果。

方法

为 10 例局部前列腺癌患者分别创建了两种螺旋 IMRT 计划,一种使用最小最大稳健优化(稳健计划),另一种使用常规计划靶区(PTV)边界方法(PTV 计划)。通过创建带有摆位不确定性的扰动剂量计划来评估计划的稳健性,摆位不确定性源于等中心偏移和器官变异引起的解剖结构变化。几何不确定性的幅度基于稳健优化期间考虑的患者摆位不确定性,这与 PTV 边界相同。对所有名义和扰动计划的均匀性指数、靶区覆盖(TC,定义为临床靶区体积的 V100%)和危及器官(直肠和膀胱)剂量进行了分析。采用 t 检验对稳健和 PTV 计划之间的差异进行了评估。

结果

对名义计划的比较表明,与 PTV 计划相比,稳健计划的 OAR 剂量更低,均匀性指数和 TC 更差。考虑到超过 PTV 边界的摆位误差的稳健性评估表明,稳健计划最坏情况下的扰动场景具有显著更高的 TC,同时保持更低的 OAR 剂量。然而,当考虑到解剖结构变化时,在最坏情况下的扰动计划中,稳健优化并没有改善 TC。

结论

对于局部前列腺癌的螺旋 IMRT 计划,稳健优化相对于 PTV 边界方法具有优势,包括更好的 OAR 保护和对系统患者摆位误差的更高稳健性。
