Finite element analysis of stress in oral mucosa and titanium mesh interface.

BACKGROUND

The stiffness of titanium mesh is a double-blade sword to repair larger alveolar ridges defect with excellent space maintenance ability, while invade the surrounding soft tissue and lead to higher mesh exposure rates. Understanding the mechanical of oral mucosa/titanium mesh/bone interface is clinically meaningful. In this study, the above relationship was analyzed by finite elements and verified by setting different keratinized tissue width in oral mucosa.

METHODS

Two three-dimensional finite element models were constructed with 5 mm keratinized tissue in labial mucosa (KM cases) and 0 mm keratinized tissue in labial mucosa (LM cases). Each model was composed of titanium mesh, titanium screws, graft materials, bone, teeth and oral mucosa. After that, a vertical (30 N) loadings were applied from both alveolar ridges direction and labial mucosa direction to stimulate the force from masticatory system. The displacements and von Mises stress of each element at the interfaces were analyzed.

RESULTS

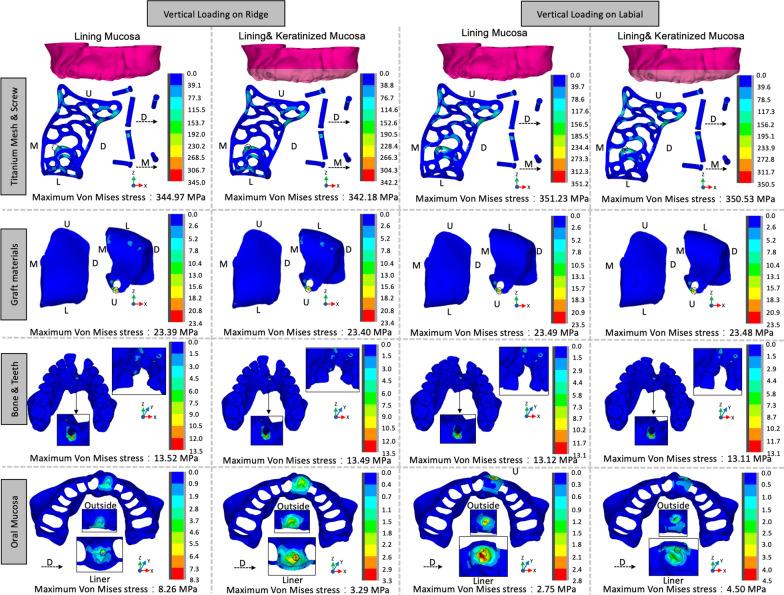

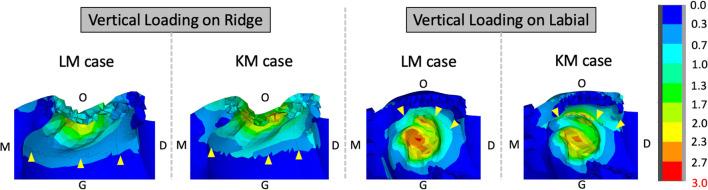

Little displacements were found for titanium mesh, titanium screws, graft materials, bone and teeth in both LM and KM cases under different loading conditions. The maximum von Mises stress was found around the lingual titanium screw insertion place for those elements in all cases. The keratinized tissue decreased the displacement of oral mucosa, decreased the maximum von Mises stress generated by an alveolar ridges direction load, while increased those stress from labial mucosa direction load. Only the von Mises stress of the KM cases was all lower than the tensile strength of the oral mucosa.

CONCLUSION

The mucosa was vulnerable under the increasing stress generated by the force from masticatory system. The adequate buccal keratinized mucosa width are critical factors in reducing the stress beyond the titanium mesh, which might reduce the titanium exposure rate.
