A novel microfluidic device with parallel channels for sperm separation using spermatozoa intrinsic behaviors.

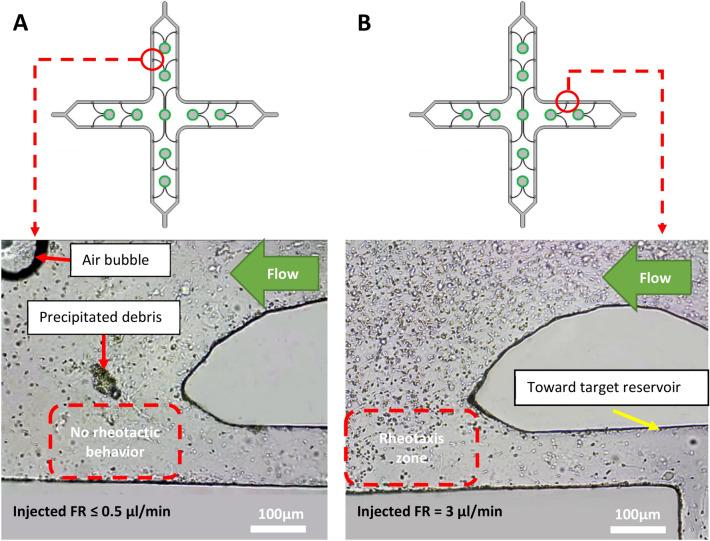

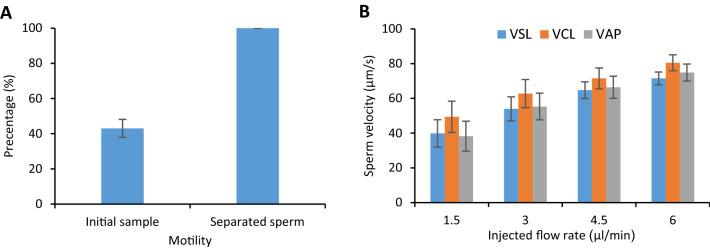

Isolating high-quality motile sperm cells is considered to be the main prerequisite for a successful artificial pregnancy. Microfluidics has emerged as a promising platform capable of mimicking in-vivo environments to separate motile sperm cells and bypassing the need for the current invasive clinical sperm separation methods. In this study, the proposed microfluidic device exploits the parallelization concept through symmetry to increase both the processed sample volume and the injected flow rate compared with the previous conventional devices, which used rheotaxis as their primary method of sperm separation. Using the finite element method (FEM) and flow simulations, the trajectories of sperm cells exhibiting rheotaxis behavior were predicted inside the proposed device. Different flow rates, including 0, 0.5, 1.5, 3, 4.5 and 6 μl/min, were experimentally injected into the device, and the effect of flow rate on the size of the hypothetical rheotaxis zone and the number of isolated sperm cells was investigated. Furthermore, it was illustrated that 100% of the isolated motile sperm cells are motile, and by manipulating the injected flow rate into the device, different classes of sperm cells in terms of motility parameters can be separated and utilized for further uses.
