宽带空气耦合超声发射器和接收器可实现对固体厚度和声速的同步测量。

Broadband Air-Coupled Ultrasound Emitter and Receiver Enable Simultaneous Measurement of Thickness and Speed of Sound in Solids.

机构信息

Bundesanstalt für Materialforschung und -prüfung BAM, 8.4 Acoustic and Electromagnetic Methods, Unter den Eichen 87, 12205 Berlin, Germany.

Health and Medical University, Olympischer Weg 1, 14471 Potsdam, Germany.

出版信息

Sensors (Basel). 2023 Jan 26;23(3):1379. doi: 10.3390/s23031379.


DOI:10.3390/s23031379
PMID:36772419
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9919981/
Abstract

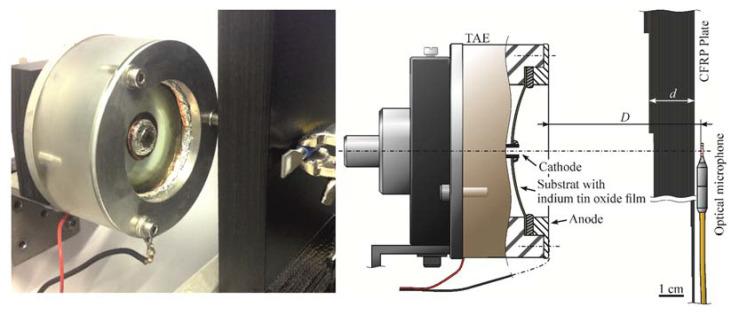

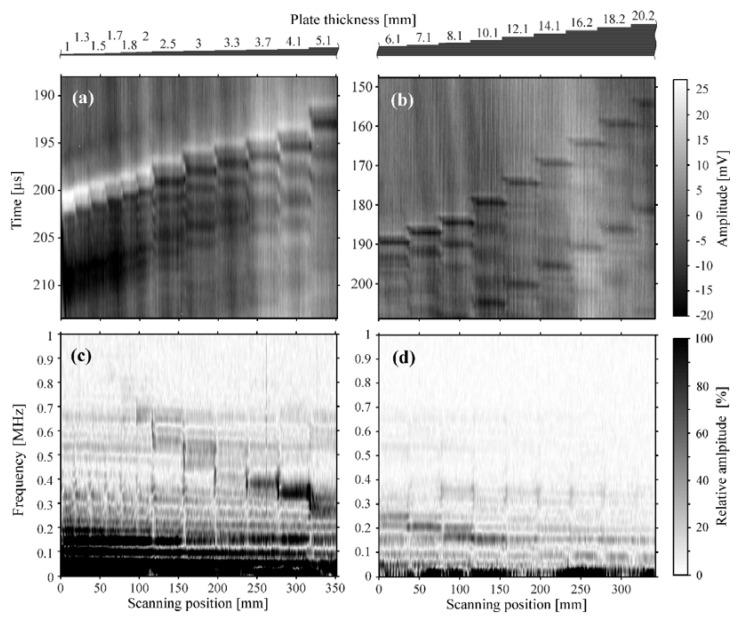

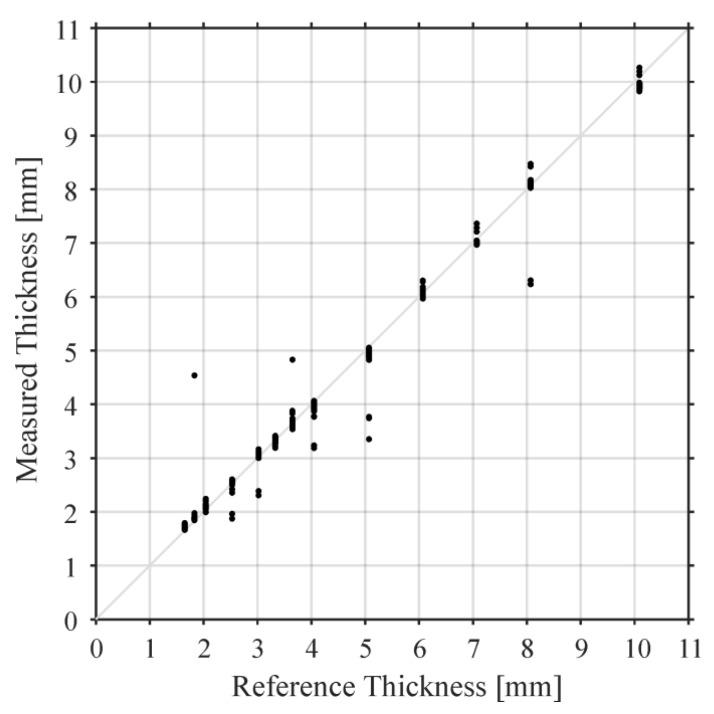

Air-coupled ultrasound sensors have advantages over contact ultrasound sensors when a sample should not become contaminated or influenced by the couplant or the measurement has to be a fast and automated inline process. Thereby, air-coupled transducers must emit high-energy pulses due to the low air-to-solid power transmission ratios (10 to 10). Currently used resonant transducers trade bandwidth-a prerequisite for material parameter analysis-against pulse energy. Here we show that a combination of a non-resonant ultrasound emitter and a non-resonant detector enables the generation and detection of pulses that are both high in amplitude (130 dB) and bandwidth (2 µs pulse width). We further show an initial application: the detection of reflections inside of a carbon fiber reinforced plastic plate with thicknesses between 1.7 mm and 10 mm. As the sensors work contact-free, the time of flight and the period of the in-plate reflections are independent parameters. Hence, a variation of ultrasound velocity is distinguishable from a variation of plate thickness and both properties are determined simultaneously. The sensor combination is likely to find numerous industrial applications necessitating high automation capacity and opens possibilities for air-coupled, single-side ultrasonic inspection.

摘要

当样品不应受到耦合剂的污染或影响,或者测量必须快速且自动化的在线进行时,空气耦合超声传感器比接触式超声传感器具有优势。因此,由于空气与固体之间的功率传输比(10 比 1)较低,空气耦合换能器必须发射高能脉冲。目前使用的谐振换能器在带宽(材料参数分析的前提)和脉冲能量之间进行权衡。在这里,我们展示了一种非谐振超声发射器和非谐振探测器的组合,可以产生和检测幅度(130dB)和带宽(2µs 脉冲宽度)都很高的脉冲。我们进一步展示了一个初始应用:检测厚度在 1.7mm 到 10mm 之间的碳纤维增强塑料板内的反射。由于传感器无需接触即可工作,因此飞行时间和板内反射的周期是独立的参数。因此,可以区分超声速度的变化与板厚度的变化,并且可以同时确定这两个特性。这种传感器组合可能会在需要高自动化能力的众多工业应用中找到,并为空气耦合、单面超声检测开辟可能性。
