Arabic Gum-Grafted-Hydrolyzed Polyacrylonitrile@ZnFeO as a Magnetic Adsorbent for Remediation of Levofloxacin Antibiotic from Aqueous Solutions.

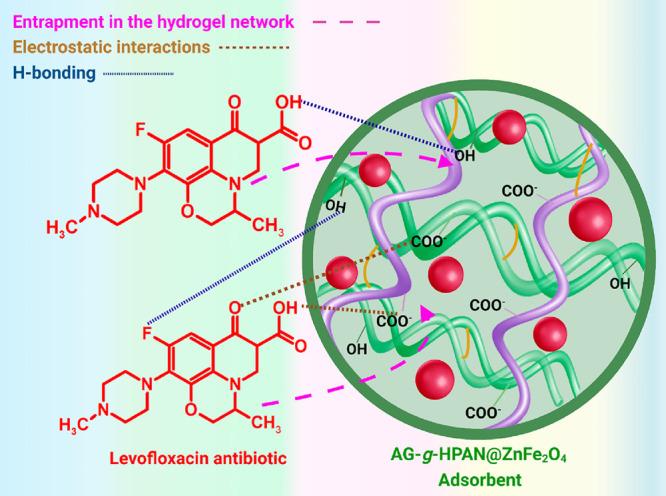

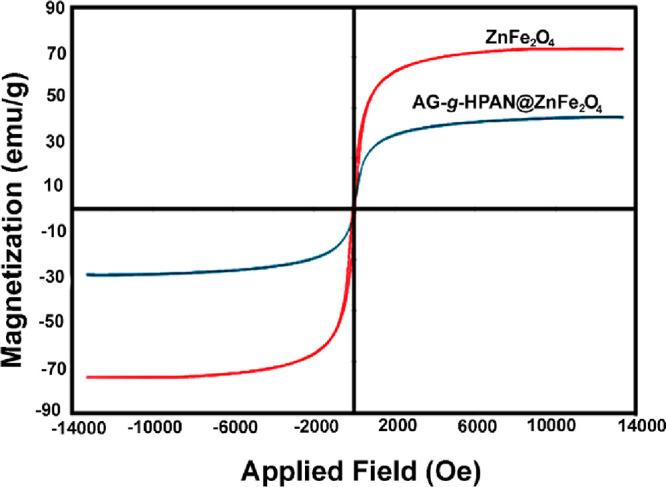

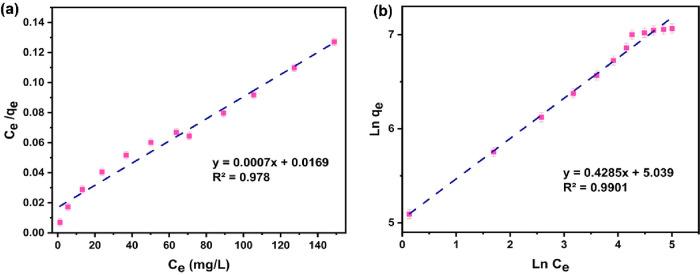

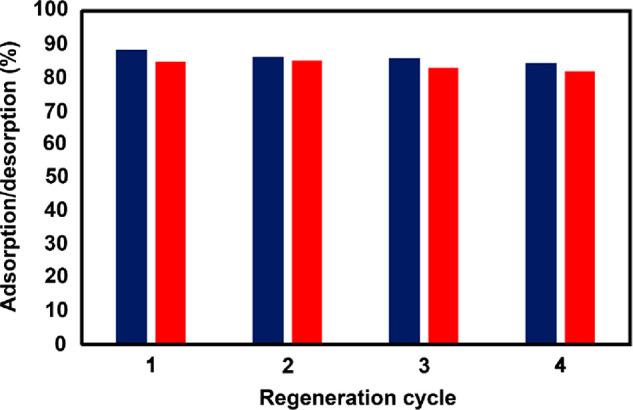

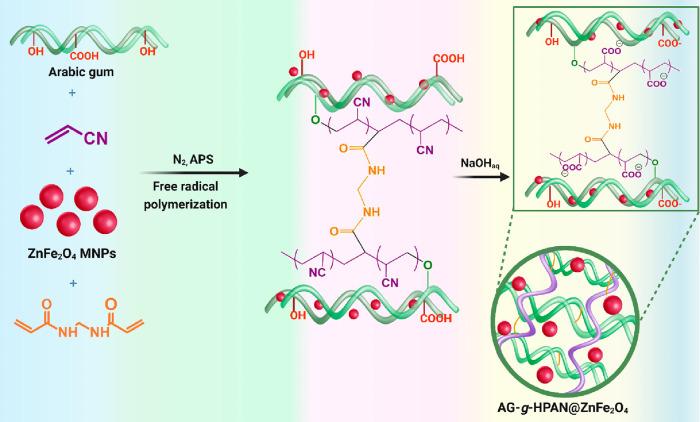

The Arabic gum--hydrolyzed polyacrylonitrile/ZnFeO (AG--HPAN@ZnFeO) as organic/inorganic adsorbent was obtained in three steps using grafted PAN onto Arabic gum in the presence of ZnFeO magnetic nanoparticles and then hydrolysis by alkaline solution. Fourier transform infrared (FT-IR), energy-dispersive X-ray analysis (EDX), field emission scanning electron microscopy (FESEM), X-ray diffraction (XRD), thermogravimetric analysis (TGA), vibrating sample magnetometer (VSM), and the Brunauer-Emmett-Teller (BET) analysis analyses were used to characterize the chemical, morphological, thermal, magnetic, and textural properties of the hydrogel nanocomposite. The obtained result demonstrated that the AG--HPAN@ZnFeO adsorbent showed acceptable thermal stability with 58% char yields and superparamagnetic property with magnetic saturation (Ms) of 24 emu g. The XRD pattern showed that the semicrystalline structure with the presence of ZnFeO has distinct peaks which displayed that the addition of zinc ferrite nanospheres to amorphous AG--HPAN increased its crystallinity. The AG--HPAN@ZnFeO surface morphology exhibits uniform dispersion of zinc ferrite nanospheres throughout the smooth surface of the hydrogel matrix, and its BET surface area was measured at 6.86 m/g, which was higher than that of AG--HPAN as a result of zinc ferrite nanosphere incorporation. The adsorption effectiveness of AG--HPAN@ZnFeO for eliminating a quinolone antibiotic (levofloxacin) from aqueous solutions was investigated. The effectiveness of adsorption was assessed under several experimental conditions, including solution pH (2-10), adsorbent dose (0.0015-0.02 g) contact duration (10-60 min), and initial concentration (50-500 mg/L). The maximum adsorption capacity ( ) of the produced adsorbent for levofloxacin was found to be 1428.57 mg/g (at 298 k), and the experimental adsorption data were well explained by the Freundlich isotherm model. The pseudo-second-order model satisfactorily described the adsorption kinetic data. The levofloxacin was mostly adsorbed onto the AG--HPAN@ZnFeO adsorbent via electrostatic contact and hydrogen bonding. Adsorption-desorption studies demonstrated that the adsorbent could be efficiently recovered and reused after four consecutive runs with no significant loss in adsorption performance.
