Numerical Study of Flow Boiling of ADN-Based Liquid Propellant in a Capillary.

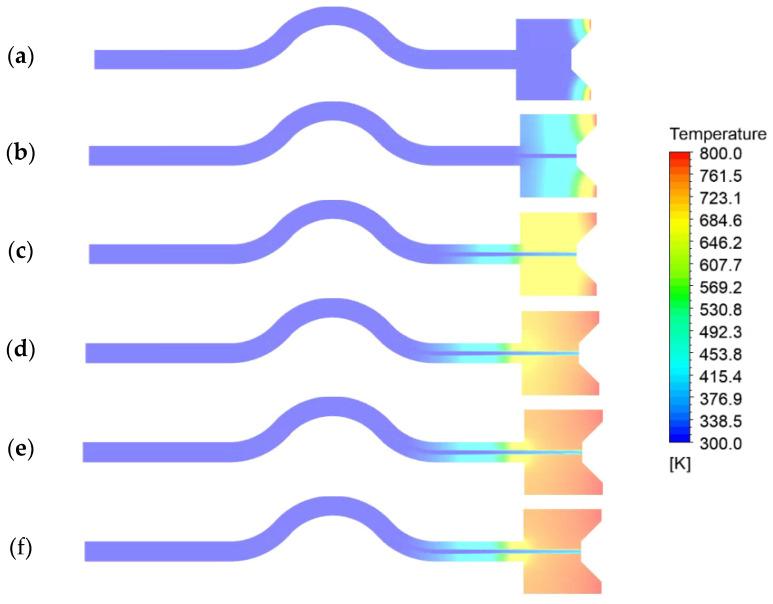

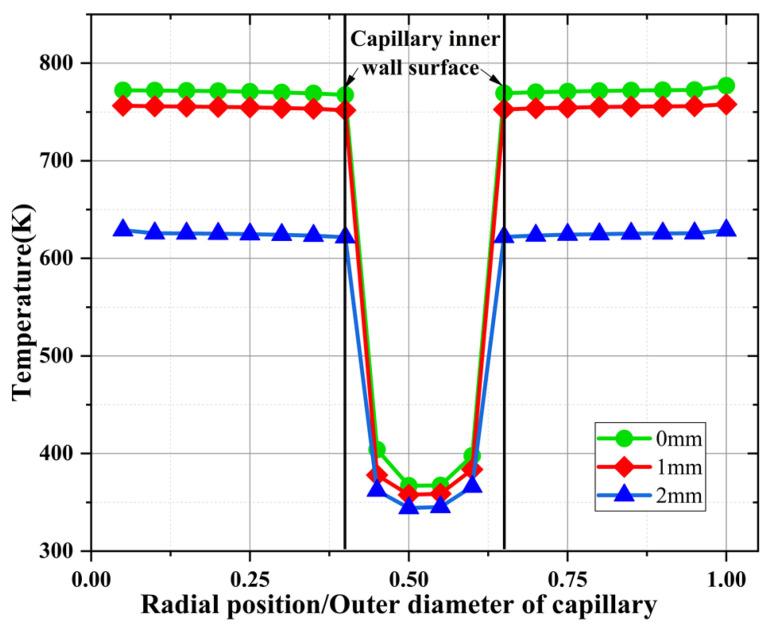

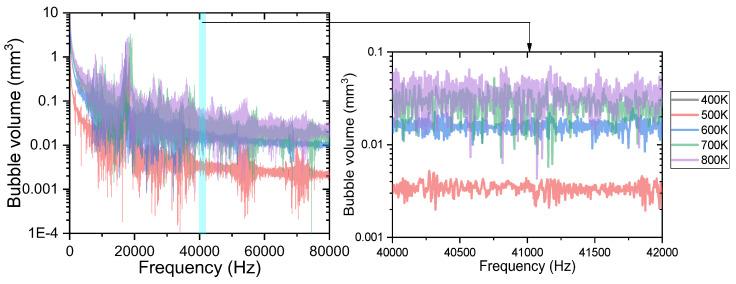

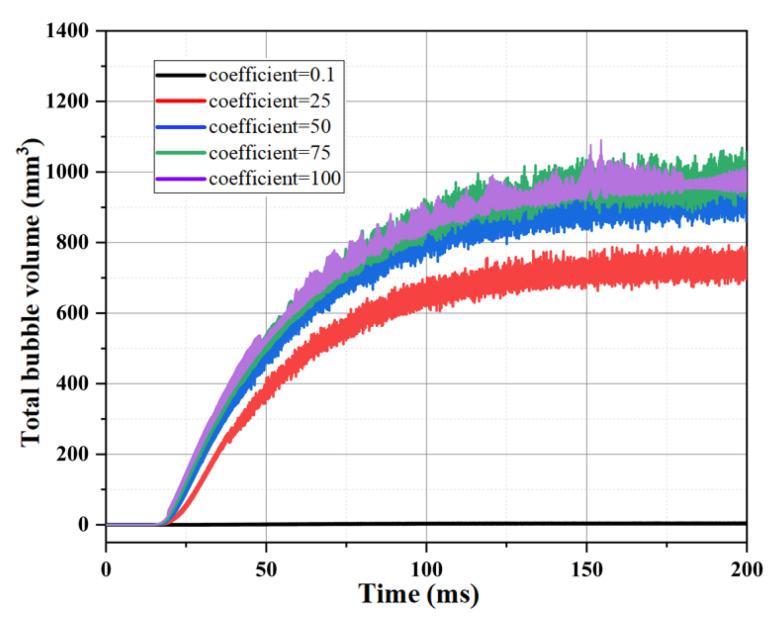

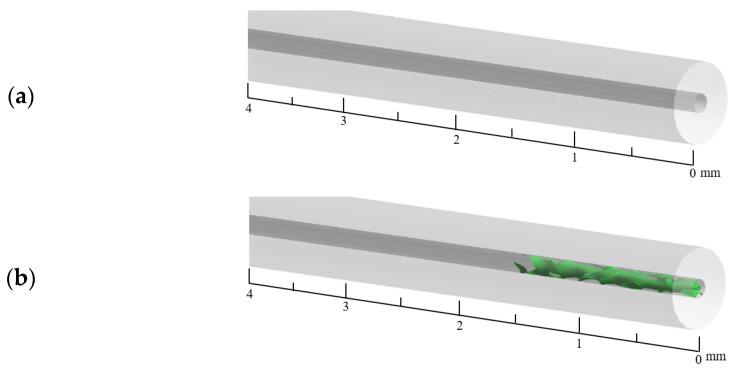

During the operation of ADN (ammonium dinitramide, (NHN(NO)))-based thrusters, the ADN-based liquid propellant, a non-toxic green energetic material, tends to flow boil in the capillary tube due to heat transfer from the wall. A three-dimensional transient numerical simulation of the flow boiling of ADN-based liquid propellant in the capillary tube was carried out using the VOF (Volume of Fluid) coupled Lee model. The flow-solid temperature and the gas-liquid two-phase distribution and the wall heat flux at different heat reflux temperatures were analyzed. The results show that the magnitude of the mass transfer coefficient of the Lee model significantly influences the gas-liquid distribution in the capillary tube. The total bubble volume increased from 0 mm to 957.4 mm when the heat reflux temperature was increased from 400 K to 800 K. The bubble formation position moves upwards along the inner wall surface of the capillary tube. Increasing the heat reflux temperature intensifies the boiling phenomenon. When the outlet temperature exceeded 700 K, the transient liquid mass flow rate in the capillary tube was already reduced by more than 50%. The results of the study can be used as a reference for the design of ADN-based thruster.
