Effects of Automotive Test Parameters on Dry Friction Fiber-Reinforced Clutch Facing Surface Microgeometry and Wear-Part 3 Tribological Parameter Correlations and Simulation of Thermo-Mechanical Tribological Contact Behavior.

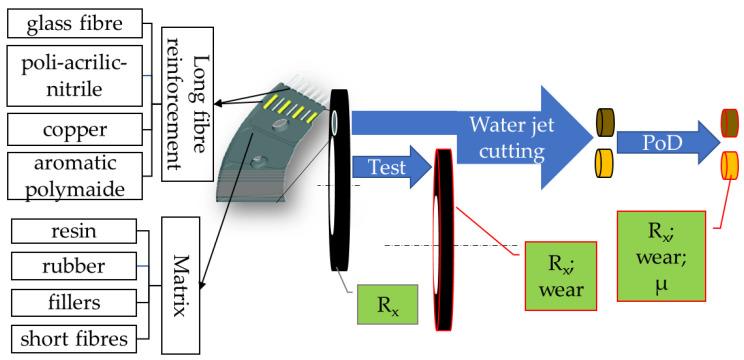

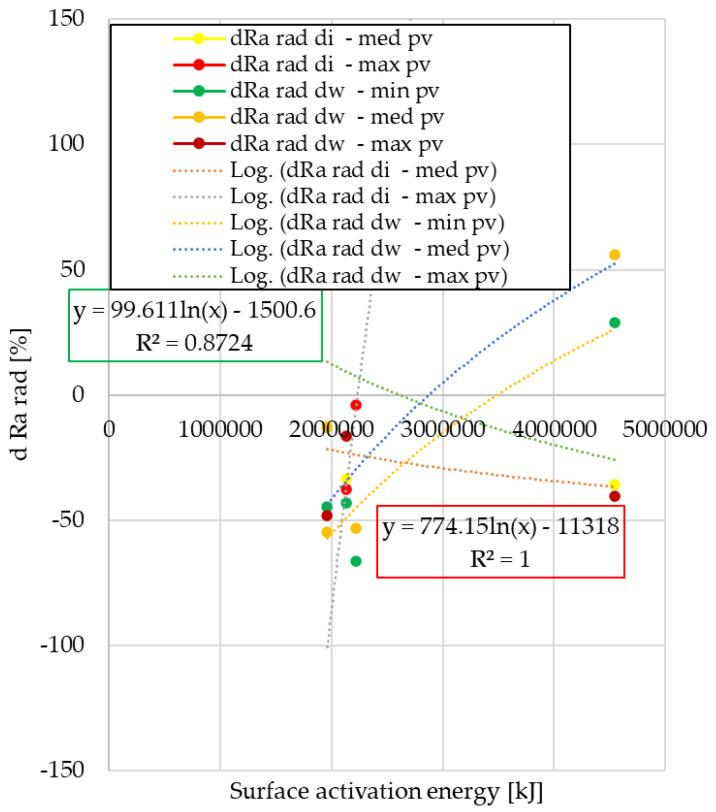

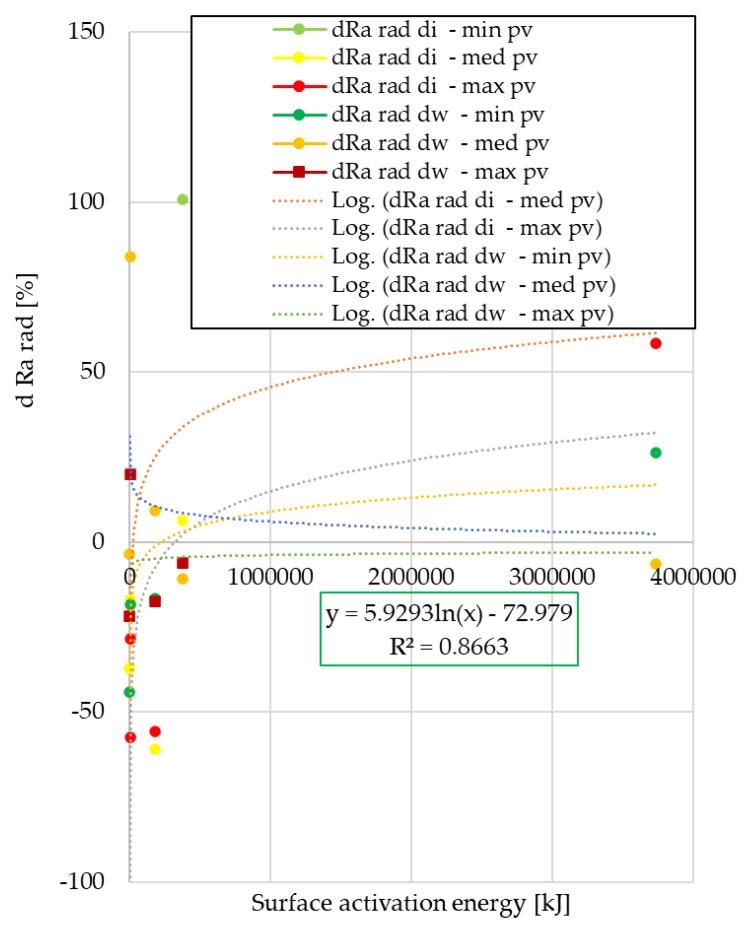

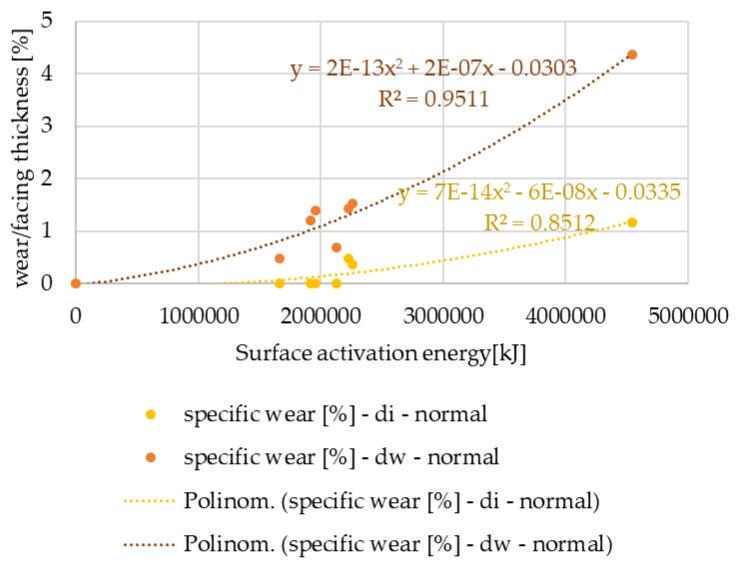

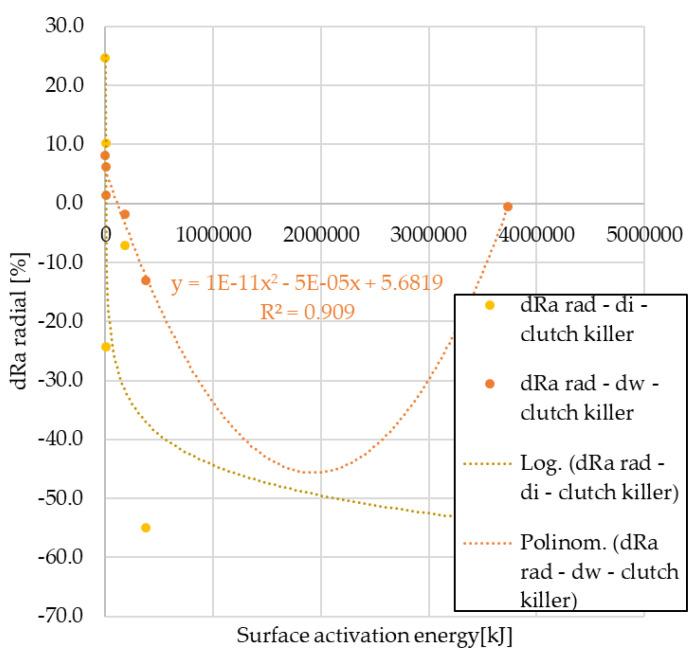

Correlations among previously determined tribological properties, such as the coefficient of friction values, wear and surface roughness differences of hybrid composite dry friction clutch facings are revealed after pin-on-disk test apparatus examinations under three loads, where samples are cut from a reference, unused, and several differently aged and dimensioned, used-according to two different trends: dry friction fiber-reinforced hybrid composite clutch facings. In 'normal use' facings, increasing specific wear trend is detected as a function of activation energy according to a second-degree function, while a logarithmic trend line can be fitted to the values of the clutch killer facings, showing that even at low activation energy levels, significant (~3%) wear occurs. The specific wear rate also varies as a function of the radius of the friction facing, with the relative wear values measured on the working friction diameter being higher regardless of the usage trend. In terms of surface roughness variation measured in the radial direction, normal use facings show a varying roughness difference according to a third-degree function, while clutch killer facings follow a second-degree or logarithmic trend depending on the diameter (di or dw). From the statistical analysis of the steady-state, we find three different clutch engagement phase characterizing level pin-on-disk tribological test results for the specific wear of the clutch killer and normal use facings, and significantly different trend curves with three different sets of functions were obtained, showing that the wear intensity can be described as a function of the value and the friction diameter. In terms of radial direction surface roughness difference, the values of clutch killer and normal use samples can be described by three different sets of function showing the effects of the friction radius and .
