SPECT Imaging with Tc-99m-Labeled HYNIC-FAPI-04 to Extend the Differential Time Window in Evaluating Tumor Fibrosis.

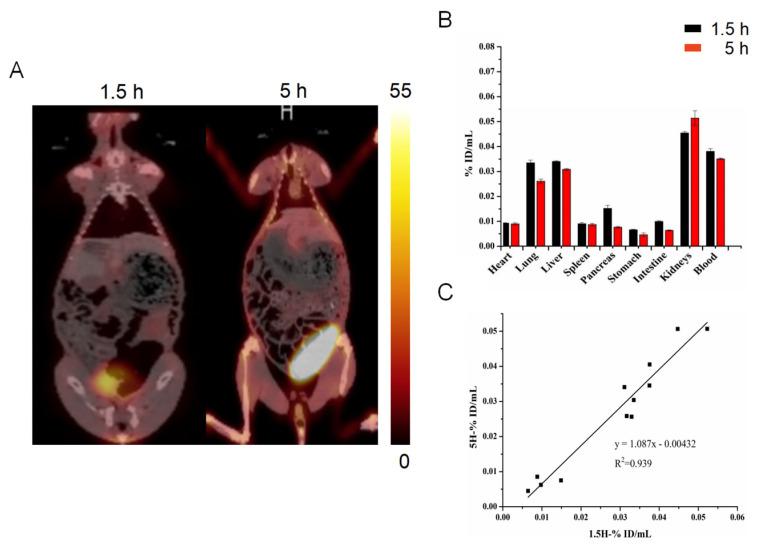

The so-far used Ga-68- or F-18-labelled tracers are of a relative short time window in differentiating tumor fibrosis. SPECT applicable imaging probe, Tc-HYNIC-FAPI-04, was synthesized and evaluated in tumor cells and animal models of FAP-positive glioma and FAP-negative hepatoma, and then compared with F-FDG or Ga-FAPI-04 PET/CT. The radio-labeling rate of Tc-HYNIC-FAPI-04 was greater than 90%, and the radiochemical purity was >99% after purification with sep-pak C18 column. In vitro cell uptake experiments of Tc-HYNIC-FAPI-04 showed good FAP binding specificity, and the cellular uptake significantly decreased when blocked by DOTA-FAPI-04, reflecting the similar targeting mechanism of HYNIC-FAPI-04 and DOTA-FAPI-04. SPECT/CT imaging showed that U87MG tumor was distinguishable and of a high uptake of Tc-HYNIC-FAPI-04 (2.67 ± 0.35 %ID/mL at 1.5 h post injection (h P.I.), while tumor signal of FAP-negative HUH-7 was as low as 0.34 ± 0.06 %ID/mL. At 5 h P.I., U87MG tumor was still distinguishable (1.81 ± 0.20 %ID/mL). In comparison, although U87MG tumor was of obvious Ga-FAPI-04 uptake and clearly visible at 1 h P.I., the tumorous radioactive signals were fuzzy at 1.5 h P.I. Tc-HYNIC-FAPI-04 specifically bound to FAP-positive tumors and qualified with the ability of evaluating tumor fibrosis over longer time windows.
