Lacy Spencer C, Benjamin Mina M, Osman Mohammed, Syed Mushabbar A, Kinno Menhel
Department of Internal Medicine, Loyola University Medical Center, Maywood, IL, USA.
Division of Cardiovascular Medicine, Loyola University Medical Center, Maywood, IL, USA.
J Cardiovasc Imaging. 2023 Apr;31(2):108-115. doi: 10.4250/jcvi.2022.0108.
Minimizing contrast dose and radiation exposure while maintaining image quality during computed tomography angiography (CTA) for transcatheter aortic valve replacement (TAVR) is desirable, but not well established. This systematic review compares image quality for low contrast and low kV CTA versus conventional CTA in patients with aortic stenosis undergoing TAVR planning.
We performed a systematic literature review to identify clinical studies comparing imaging strategies for patients with aortic stenosis undergoing TAVR planning. The primary outcomes of image quality as assessed by the signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR) were reported as random effects mean difference with 95% confidence interval (CI).

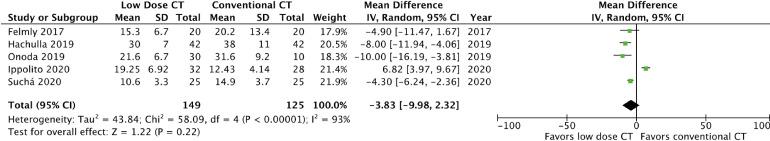

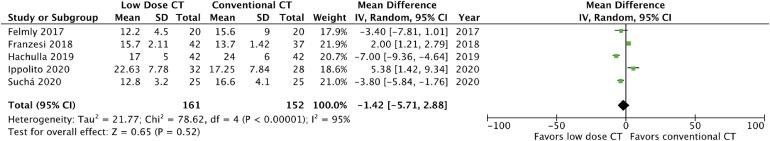

We included 6 studies reporting on 353 patients. There was no difference in cardiac SNR (mean difference, -1.42; 95% CI, -5.71 to 2.88; p = 0.52), cardiac CNR (mean difference, -3.83; 95% CI, -9.98 to 2.32; p = 0.22), aortic SNR (mean difference, -0.23; 95% CI, -7.83 to 7.37; p = 0.95), aortic CNR (mean difference, -3.95; 95% CI, -12.03 to 4.13; p = 0.34), and ileofemoral SNR (mean difference, -6.09; 95% CI, -13.80 to 1.62; p = 0.12) between the low dose and conventional protocols. There was a difference in ileofemoral CNR between the low dose and conventional protocols with a mean difference of -9.26 (95% CI, -15.06 to -3.46; p = 0.002). Overall, subjective image quality was similar between the 2 protocols.
This systematic review suggests that low contrast and low kV CTA for TAVR planning provides similar image quality to conventional CTA.
在经导管主动脉瓣置换术(TAVR)的计算机断层扫描血管造影(CTA)过程中,在保持图像质量的同时尽量减少对比剂剂量和辐射暴露是理想的,但尚未得到充分证实。本系统评价比较了低对比剂剂量和低千伏CTA与传统CTA在接受TAVR规划的主动脉瓣狭窄患者中的图像质量。
我们进行了一项系统的文献综述,以确定比较接受TAVR规划的主动脉瓣狭窄患者成像策略的临床研究。通过信噪比(SNR)和对比噪声比(CNR)评估的图像质量主要结果报告为随机效应平均差及95%置信区间(CI)。
我们纳入了6项涉及353例患者的研究报告。低剂量方案与传统方案在心脏SNR(平均差,-1.42;95%CI,-5.71至2.88;p = 0.52)、心脏CNR(平均差,-3.83;95%CI,-9.98至2.32;p = 0.22)、主动脉SNR(平均差,-0.23;95%CI,-7.83至7.37;p = 0.95)、主动脉CNR(平均差,-3.95;95%CI,-12.03至4.13;p = 0.34)以及髂股动脉SNR(平均差,-6.09;95%CI,-13.80至1.62;p = 0.12)方面均无差异。低剂量方案与传统方案在髂股动脉CNR方面存在差异,平均差为-9.26(95%CI,-15.06至-3.46;p = 0.002)。总体而言,两种方案的主观图像质量相似。
本系统评价表明,用于TAVR规划的低对比剂剂量和低千伏CTA与传统CTA具有相似的图像质量。
