MacDonald David, van Veggel Frank C J M, Tomanek Boguslaw, Blasiak Barbara
Institute of Nuclear Physics Polish Academy of Science, Radzikowskiego 152, 31-342 Krakow, Poland.
Department of Chemistry, Centre for Advanced Materials & Related Technologies (CAMTEC), University of Victoria, Victoria, BC V8P 5C2, Canada.
Materials (Basel). 2023 Apr 14;16(8):3096. doi: 10.3390/ma16083096.

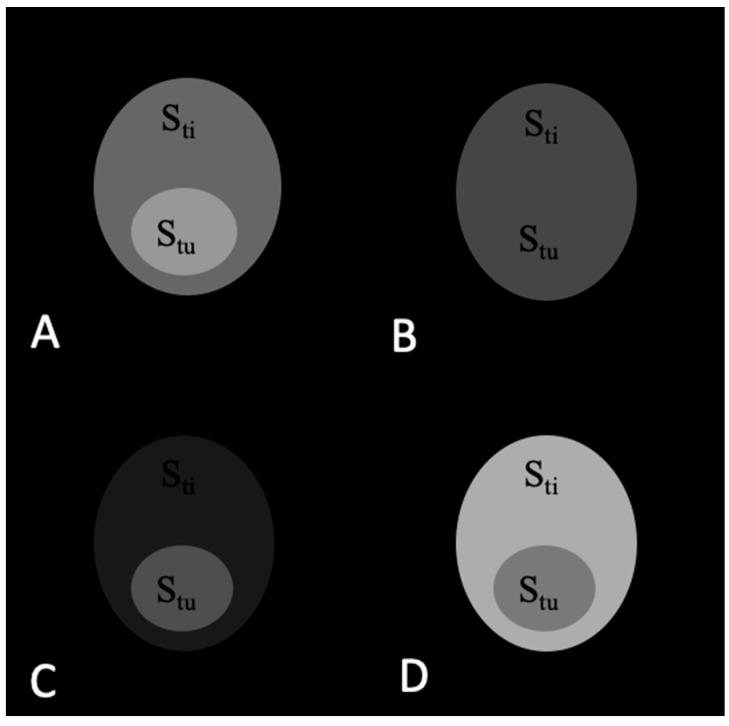

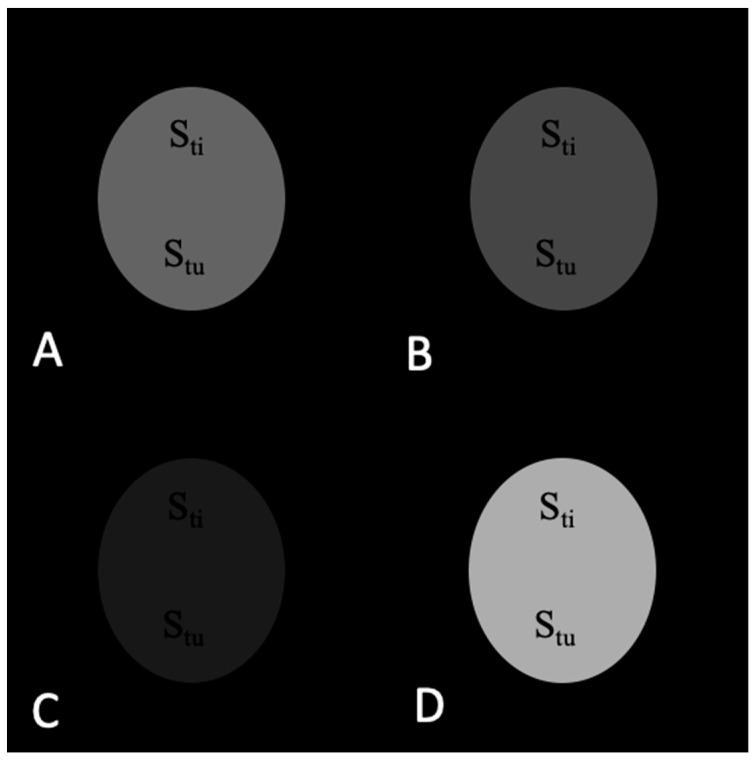

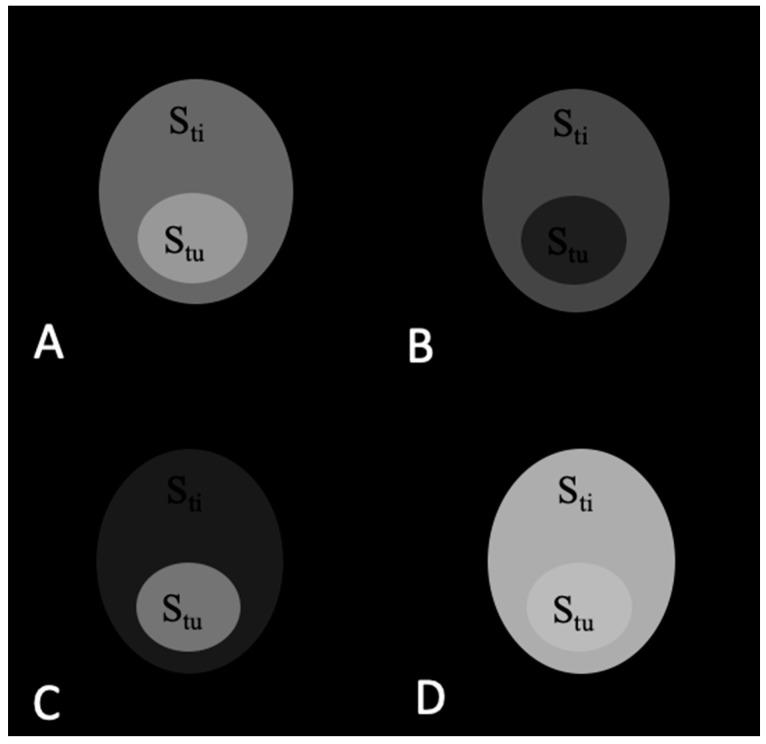

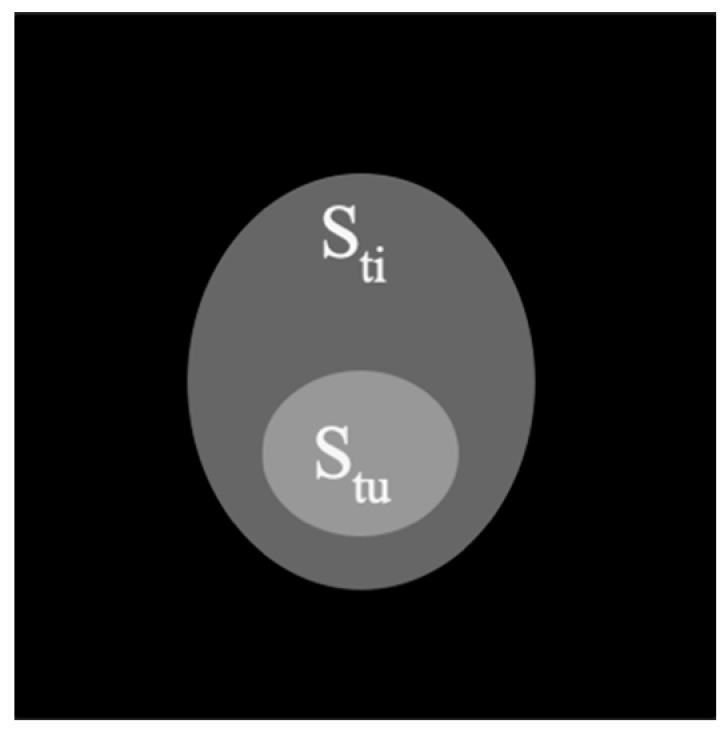

Gd- and Fe-based contrast agents reduce T and T relaxation times, respectively, are frequently used in MRI, providing improved cancer detection. Recently, contrast agents changing both T/T times, based on core/shell nanoparticles, have been introduced. Although advantages of the T/T agents were shown, MR image contrast of cancerous versus normal adjacent tissue induced by these agents has not yet been analyzed in detail as authors considered changes in cancer MR signal or signal-to-noise ratio after contrast injection rather than changes in signal differences between cancer and normal adjacent tissue. Furthermore, the potential advantages of T/T contrast agents using image manipulation such as subtraction or addition have not been yet discussed in detail. Therefore, we performed theoretical calculations of MR signal in a tumor model using T-weighted, T-weighted, and combined images for T-, T-, and T/T-targeted contrast agents. The results from the tumor model are followed by in vivo experiments using core/shell NaDyF/NaGdF nanoparticles as T/T non-targeted contrast agent in the animal model of triple negative breast cancer. The results show that subtraction of T-weighted from T-weighted MR images provides additional increase in the tumor contrast: over two-fold in the tumor model and 12% in the in vivo experiment.
基于钆(Gd)和铁(Fe)的造影剂分别缩短T1和T2弛豫时间,常用于磁共振成像(MRI),以改善癌症检测。最近,基于核壳纳米颗粒的、能同时改变T1/T2时间的造影剂已被引入。尽管已显示出T1/T2造影剂的优势,但这些造影剂所诱导的癌组织与相邻正常组织的磁共振图像对比度尚未得到详细分析,因为作者关注的是注射造影剂后癌症磁共振信号或信噪比的变化,而非癌症与相邻正常组织之间信号差异的变化。此外,使用减法或加法等图像处理方法的T1/T2造影剂的潜在优势尚未得到详细讨论。因此,我们使用针对T1、T2和T1/T2的造影剂,通过T1加权、T2加权和组合图像,对肿瘤模型中的磁共振信号进行了理论计算。在肿瘤模型实验结果之后,我们在三阴性乳腺癌动物模型中使用核壳NaDyF4/NaGdF4纳米颗粒作为T1/T2非靶向造影剂进行了体内实验。结果表明,从T2加权磁共振图像中减去T1加权图像可使肿瘤对比度进一步增加:在肿瘤模型中增加两倍以上,在体内实验中增加12%。
