Ueda Junpei, Saito Shigeyoshi
Department of Medical Physics and Engineering, Division of Health Sciences, Osaka University Graduate School of Medicine, Suita 560-0871, Osaka, Japan.
Department of Advanced Medical Technologies, National Cardiovascular and Cerebral Research Center, Suita 564-8565, Osaka, Japan.
Diagnostics (Basel). 2023 Apr 19;13(8):1472. doi: 10.3390/diagnostics13081472.

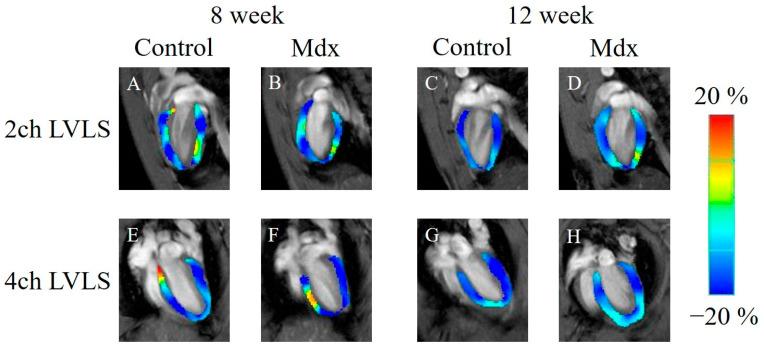

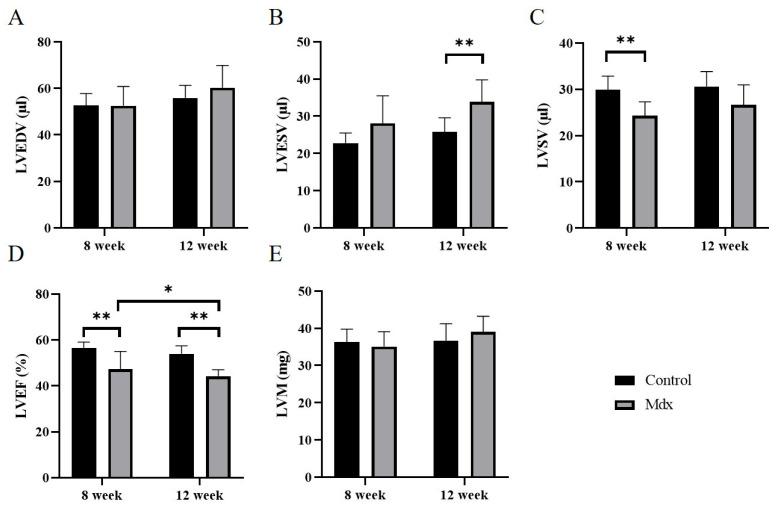

This study aimed to evaluate cardiac function in a young mouse model of Duchenne muscular dystrophy (mdx) using cardiac magnetic resonance imaging (MRI) with feature tracking and self-gated magnetic resonance cine imaging. Cardiac function was evaluated in mdx and control mice (C57BL/6JJmsSlc mice) at 8 and 12 weeks of age. Preclinical 7-T MRI was used to capture short-axis, longitudinal two-chamber view and longitudinal four-chamber view cine images of mdx and control mice. Strain values were measured and evaluated from cine images acquired using the feature tracking method. The left ventricular ejection fraction was significantly less ( < 0.01 each) in the mdx group at both 8 (control, 56.6 ± 2.3% mdx, 47.2 ± 7.4%) and 12 weeks (control, 53.9 ± 3.3% mdx, 44.1 ± 2.7%). In the strain analysis, all strain value peaks were significantly less in mdx mice, except for the longitudinal strain of the four-chamber view at both 8 and 12 weeks of age. Strain analysis with feature tracking and self-gated magnetic resonance cine imaging is useful for assessing cardiac function in young mdx mice.
本研究旨在利用具有特征追踪和自门控磁共振电影成像的心脏磁共振成像(MRI),评估杜兴氏肌营养不良症(mdx)幼鼠模型的心脏功能。在8周龄和12周龄时,对mdx小鼠和对照小鼠(C57BL/6JJmsSlc小鼠)的心脏功能进行评估。使用临床前7-T MRI采集mdx小鼠和对照小鼠的短轴、纵向两腔视图和纵向四腔视图电影图像。从使用特征追踪方法采集的电影图像中测量并评估应变值。在8周龄(对照,56.6±2.3%;mdx,47.2±7.4%)和12周龄(对照,53.9±3.3%;mdx,44.1±2.7%)时,mdx组的左心室射血分数均显著降低(均P<0.01)。在应变分析中,除了8周龄和12周龄时四腔视图的纵向应变外,mdx小鼠的所有应变值峰值均显著降低。利用特征追踪和自门控磁共振电影成像进行应变分析,有助于评估mdx幼鼠的心脏功能。
