残留 3D 打印金属粉末对免疫反应和骨再生的影响:一项体内研究。
Impacts of residual 3D printing metal powders on immunological response and bone regeneration: an in vivo study.
机构信息
Department of Materials Science and Engineering, Southern University of Science and Technology, Shenzhen, 518055, China.
The Eighth Affiliated Hospital, Sun Yat- sen University, Shenzhen, 518033, China.
出版信息
J Mater Sci Mater Med. 2023 May 25;34(6):29. doi: 10.1007/s10856-023-06727-1.

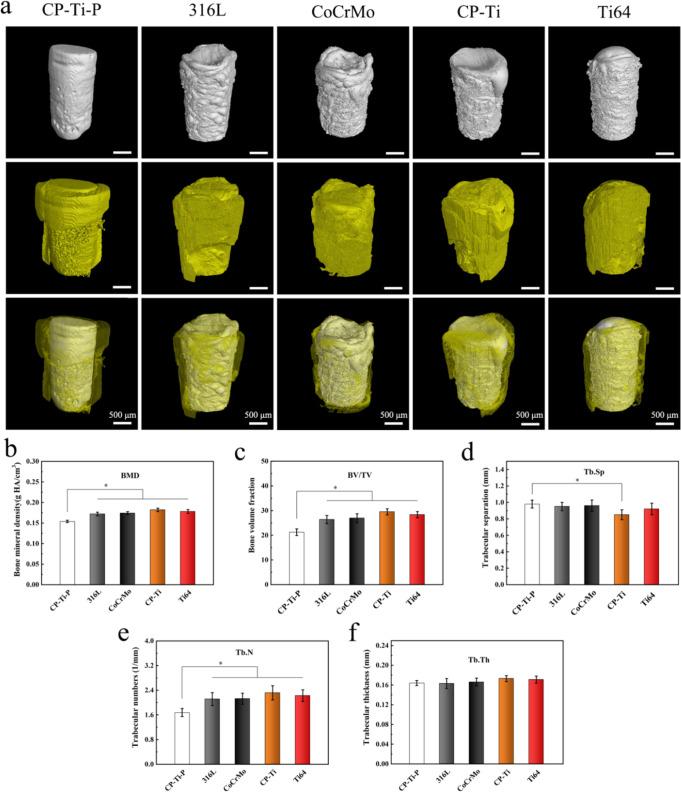

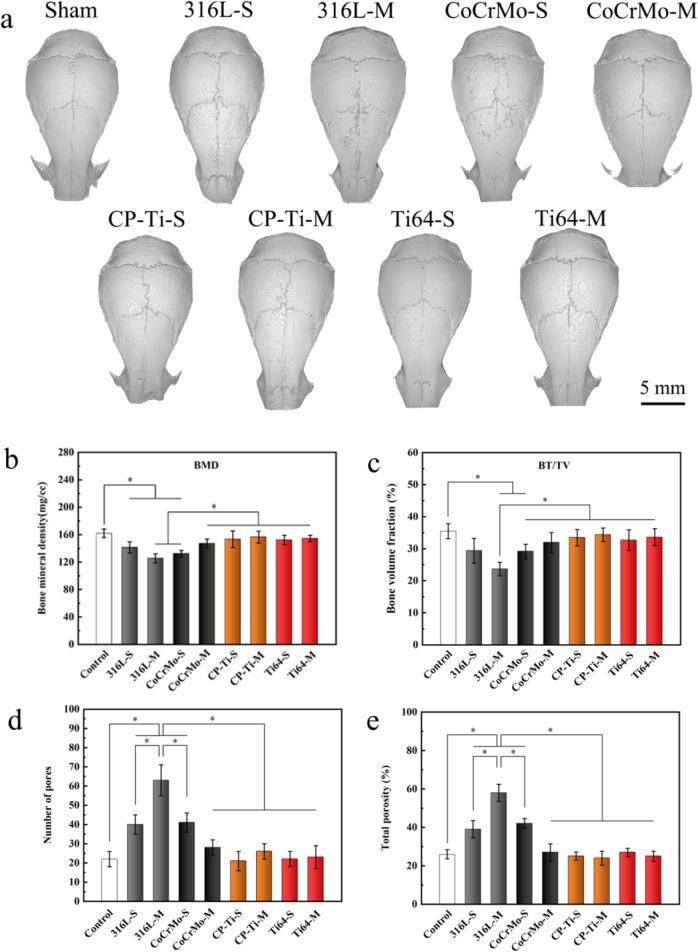

Residual powder is a defect in powder bed fusion-based additive manufacturing (3D printing), and it is difficult to completely remove it from as-printed materials. In addition, it is not necessary to apply 3D printed implants with residual powder in the clinic. The immunological response triggered by the residual powder is an important area of study in medical research. To further understand the possible immunological reactions and hidden dangers caused by residual powders in vivo, this study compared the immunological reactions and osteolysis caused by typical powders for four implant materials: 316 L stainless steel, CoCrMo, CP-Ti, and Ti-6Al-4V (particle size range of 15-45 μm), in a mouse skull model. Furthermore, the possible immunological responses and bone regeneration induced by the four 3D printed implants with residual powder in a rat femur model were compared. In the mouse skull model, it was found that the 316L-S, CoCrMo-S, and especially the 316L-M powders, upregulated the expression of pro-inflammatory factors, increased the ratio of RANKL/OPG, and activated more functional osteoclasts, resulting in more severe bone resorption compared with those in other groups. In the rat femur model, which is more suitable for clinical practice, there is no bone resorption in implants with residual powders, but they show good bone regeneration and integration ability because of their original roughness. The results indicate that the expressions of inflammatory cytokines in all experimental groups were the same as those in the control group, showing good biological safety. The results answered some critical questions related to additively manufactured medical materials in vivo and indicated that as-printed implants may have great potential in future clinical applications.

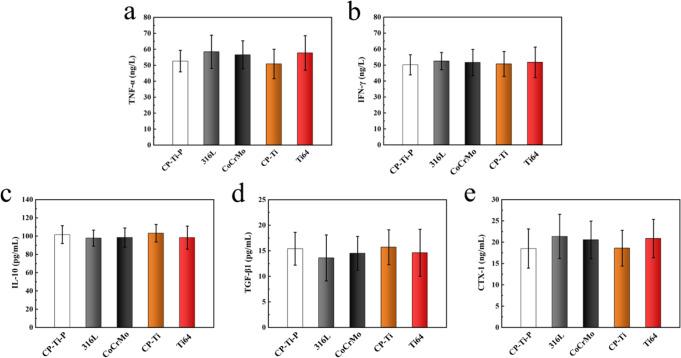

残余粉末是粉末床融合增材制造(3D 打印)中的一种缺陷,很难将其从打印材料中完全去除。此外,在临床中,无需使用残留粉末的 3D 打印植入物。残留粉末引发的免疫反应是医学研究的一个重要领域。为了进一步了解体内残留粉末可能引起的免疫反应和隐患,本研究比较了四种植入材料(316L 不锈钢、CoCrMo、CP-Ti 和 Ti-6Al-4V,粒径范围为 15-45μm)典型粉末在小鼠颅骨模型中的免疫反应和溶骨性。此外,还比较了四种带有残留粉末的 3D 打印植入物在大鼠股骨模型中引起的可能免疫反应和骨再生。在小鼠颅骨模型中,发现 316L-S、CoCrMo-S,特别是 316L-M 粉末上调了促炎因子的表达,增加了 RANKL/OPG 的比值,激活了更多功能活跃的破骨细胞,导致与其他组相比,骨吸收更为严重。在更适合临床实践的大鼠股骨模型中,残留粉末的植入物没有骨吸收,但由于其原始粗糙度,它们显示出良好的骨再生和整合能力。结果表明,所有实验组的炎症细胞因子表达与对照组相同,表现出良好的生物安全性。研究结果回答了一些与体内增材制造医疗材料相关的关键问题,并表明打印的植入物在未来的临床应用中可能具有巨大的潜力。
