Department of Surgery, Leiden University Medical Center, Albinusdreef 2, 2333 ZA, Leiden, The Netherlands.
Department of Surgical Oncology and Gastrointestinal Surgery, Erasmus MC Cancer Institute, Doctor Molewaterplein 40, 3015 GD, Rotterdam, The Netherlands.
Surg Endosc. 2023 Sep;37(9):6824-6833. doi: 10.1007/s00464-023-10140-8. Epub 2023 Jun 7.
Indocyanine green near-infrared fluorescence bowel perfusion assessment has shown its potential benefit in preventing anastomotic leakage. However, the surgeon's subjective visual interpretation of the fluorescence signal limits the validity and reproducibility of the technique. Therefore, this study aimed to identify objective quantified bowel perfusion patterns in patients undergoing colorectal surgery using a standardized imaging protocol.
A standardized fluorescence video was recorded. Postoperatively, the fluorescence videos were quantified by drawing contiguous region of interests (ROIs) on the bowel. For each ROI, a time-intensity curve was plotted from which perfusion parameters (n = 10) were derived and analyzed. Furthermore, the inter-observer agreement of the surgeon's subjective interpretation of the fluorescence signal was assessed.

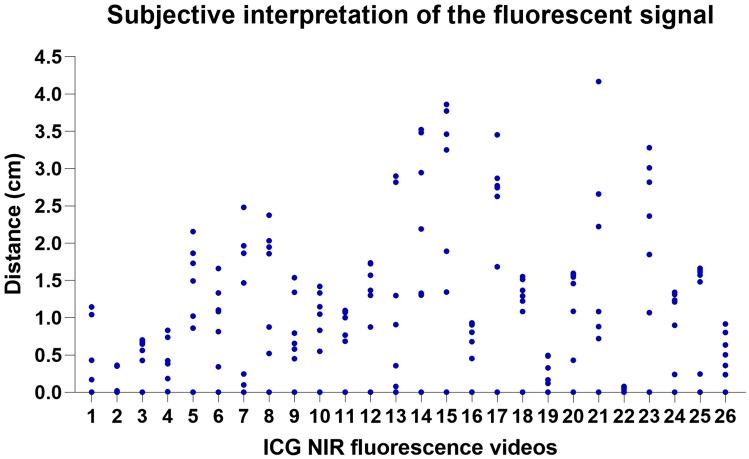

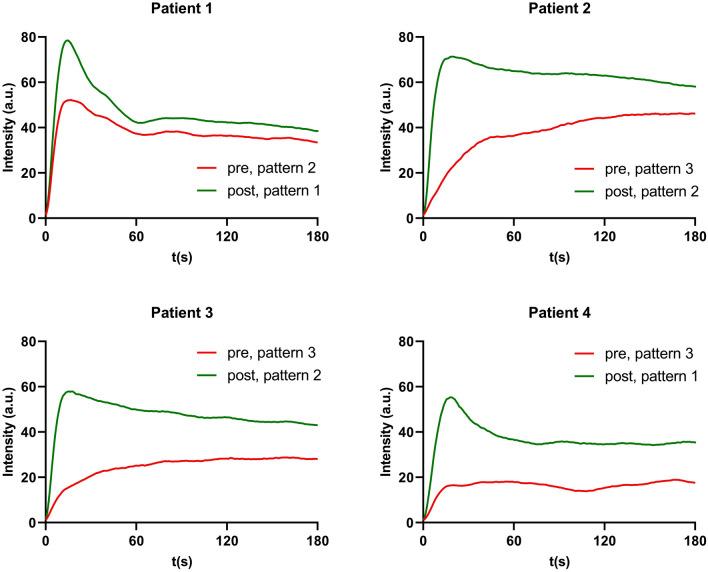

Twenty patients who underwent colorectal surgery were included in the study. Based on the quantified time-intensity curves, three different perfusion patterns were identified. Similar for both the ileum and colon, perfusion pattern 1 had a steep inflow that reached its peak fluorescence intensity rapidly, followed by a steep outflow. Perfusion pattern 2 had a relatively flat outflow slope immediately followed by its plateau phase. Perfusion pattern 3 only reached its peak fluorescence intensity after 3 min with a slow inflow gradient preceding it. The inter-observer agreement was poor-moderate (Intraclass Correlation Coefficient (ICC): 0.378, 95% CI 0.210-0.579).
This study showed that quantification of bowel perfusion is a feasible method to differentiate between different perfusion patterns. In addition, the poor-moderate inter-observer agreement of the subjective interpretation of the fluorescence signal between surgeons emphasizes the need for objective quantification.
吲哚菁绿近红外荧光肠道灌注评估已显示出其在预防吻合口漏方面的潜在益处。然而,由于外科医生对荧光信号的主观视觉解释,限制了该技术的有效性和可重复性。因此,本研究旨在使用标准化成像方案,确定接受结直肠手术患者的肠道客观定量灌注模式。
记录标准化荧光视频。术后,通过在肠道上绘制连续的感兴趣区域(ROI)对荧光视频进行定量。对于每个 ROI,绘制时间-强度曲线,从中得出并分析灌注参数(n=10)。此外,评估外科医生对荧光信号的主观解释的观察者间一致性。
本研究纳入了 20 例接受结直肠手术的患者。基于量化的时间-强度曲线,确定了三种不同的灌注模式。回肠和结肠相似,灌注模式 1 具有陡峭的流入,迅速达到其荧光强度峰值,随后是陡峭的流出。灌注模式 2 立即具有相对平坦的流出斜率,随后是其平台阶段。灌注模式 3 仅在 3 分钟后达到其荧光强度峰值,其流入梯度较缓慢。观察者间一致性较差(组内相关系数(ICC):0.378,95%置信区间(CI)0.210-0.579)。
本研究表明,肠道灌注的定量是区分不同灌注模式的一种可行方法。此外,外科医生对荧光信号的主观解释的观察者间一致性较差,强调了客观量化的必要性。
