xTMS:一种用于探索经颅磁刺激疗法的脉冲发生器。

xTMS: A Pulse Generator for Exploring Transcranial Magnetic Stimulation Therapies.

作者信息

Ali Kawsar, Wendt Karen, Sorkhabi Majid Memarian, Benjaber Moaad, Denison Timothy, Rogers Daniel J

机构信息

Department o fEngineering Science, University of Oxford, UK.

MRC Brain Network Dynamics Unit, Nuffield Department of Clinical Neurosciences, University of Oxford, UK.

出版信息

Conf Proc (IEEE Appl Power Electron Conf Expo). 2023 May 31;2023:1875-1880. doi: 10.1109/APEC43580.2023.10131554.

Abstract

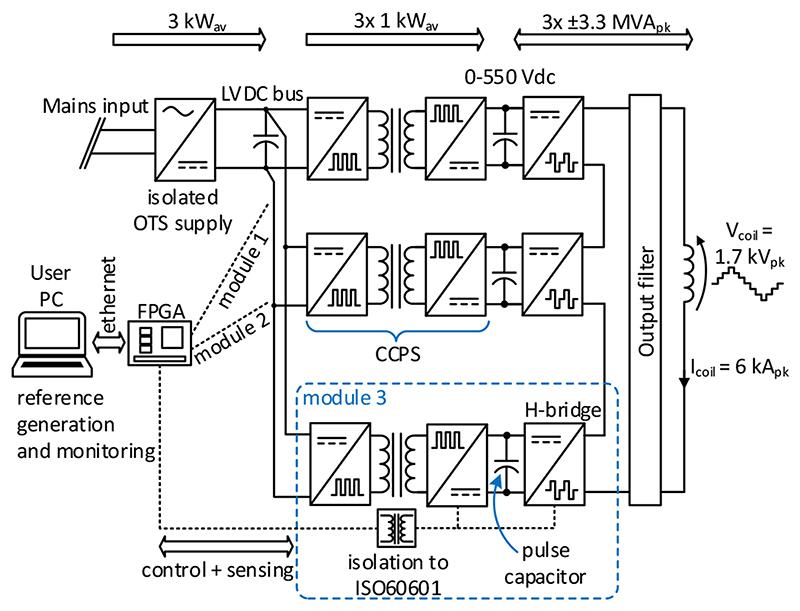

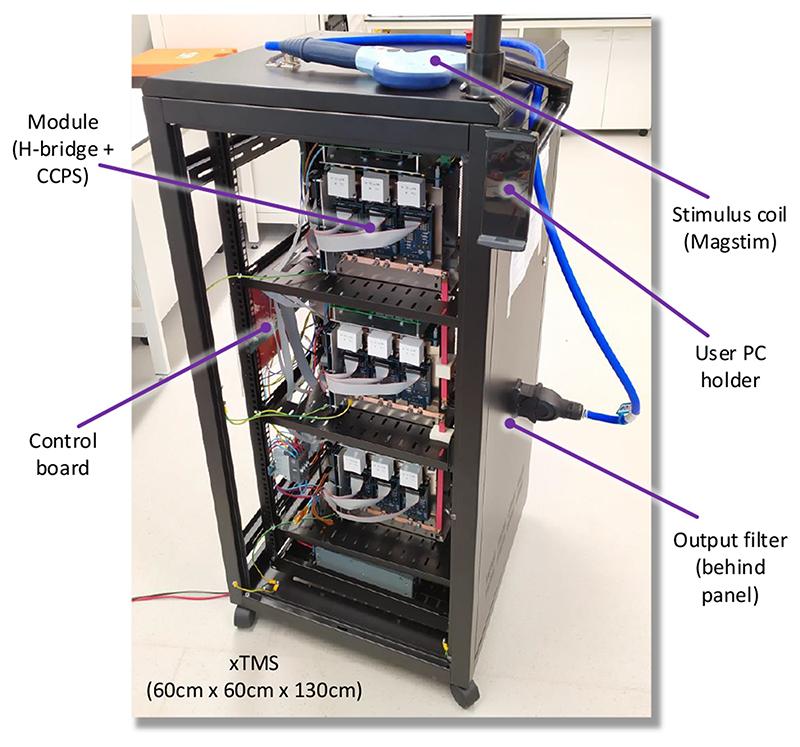

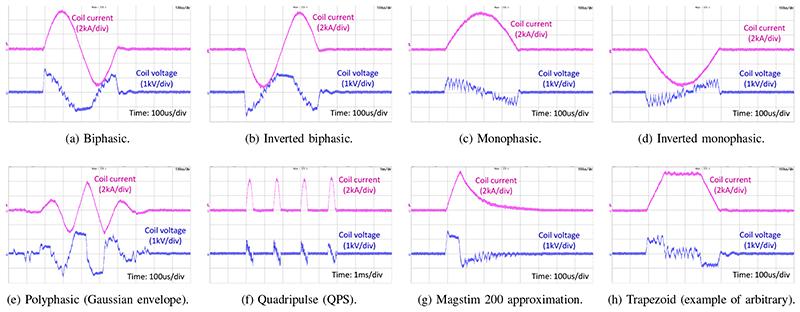

A cascaded H-bridge based pulse generator for transcranial magnetic stimulation is introduced. The system demonstrates complete flexibility for producing different shape, duration, direction, and rate of repetition of stimulus pulses within its electrical limits, and can emulate all commercial and research systems available to-date in this application space. An offline model predictive control algorithm, used to generate pulses and sequences, shows superior performance compared to conventional carrier-based pulse width modulation. A fully functioning laboratory prototype delivers up to 1.5 kV, 6 kA pulses, and is ready to be used as a research tool for the exploration of transcranial magnetic stimulation therapies by leveraging the many degrees-of-freedom offered by the design.

摘要

介绍了一种用于经颅磁刺激的基于级联H桥的脉冲发生器。该系统在其电气限制范围内,在产生不同形状、持续时间、方向和重复率的刺激脉冲方面表现出完全的灵活性,并且可以模拟该应用领域中现有的所有商业和研究系统。一种用于生成脉冲和序列的离线模型预测控制算法,与传统的基于载波的脉宽调制相比,表现出卓越的性能。一个功能齐全的实验室原型可提供高达1.5 kV、6 kA的脉冲,并准备好通过利用该设计提供的多个自由度,用作探索经颅磁刺激疗法的研究工具。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4160/7614672/6e81f2bc0ef3/EMS177337-f001.jpg
