用于建筑保温的增材制造木塑复合材料的热性能和力学性能

The Thermal and Mechanical Behaviour of Wood-PLA Composites Processed by Additive Manufacturing for Building Insulation.

作者信息

Bahar Anis, Hamami Ameur El Amine, Benmahiddine Ferhat, Belhabib Sofiane, Belarbi Rafik, Guessasma Sofiane

机构信息

Department of Mechanical Engineering, IUT Nantes, Nantes Université, Oniris, CNRS, GEPEA, UMR 6144, F-44000 Nantes, France.

INRAE, UR1268 Biopolymères Interactions Assemblages, F-44300 Nantes, France.

出版信息

Polymers (Basel). 2023 Jul 16;15(14):3056. doi: 10.3390/polym15143056.

Abstract

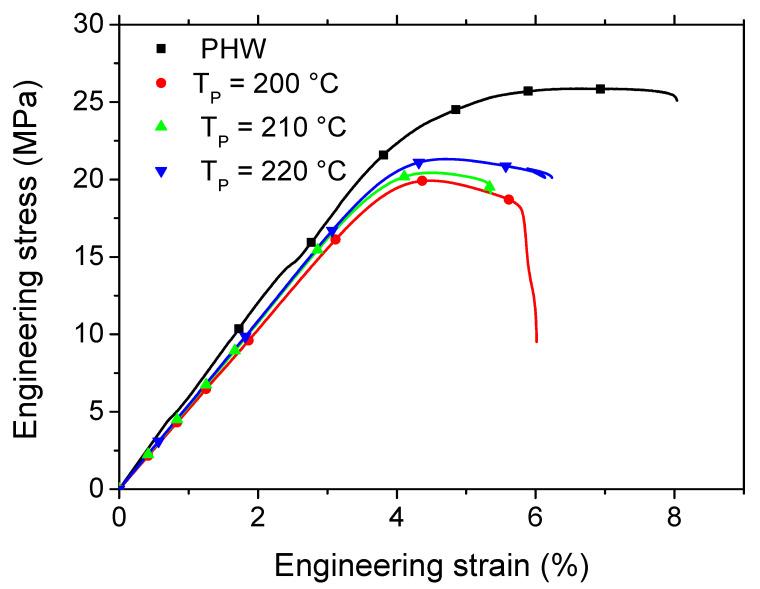

This study was aimed at considering the potential of wood-based composites processed using additive manufacturing as insulators in the building sector. A polylactic acid blend with 30% wood particles was used as a feedstock material in fused filament technology. Its thermal and mechanical properties were determined for various processing conditions, including printing temperature and infill rate. The results showed a minor contraction in its tensile performance as a result of the printing process. The printing temperature had a negligible effect on its stiffness and a limited influence on the other engineering constants, such as the tensile strength and ultimate stress. The thermal properties of printed structures have been found to significantly depend on the infill rate. Although the tested 3D printed wood-PLA material exhibited good thermal properties, which were tuneable using the printing conditions, its performance was still 38% to 57% lower compared to insulators such as the glass wool of the synthetic foams used in the building sector.

摘要

本研究旨在探讨采用增材制造工艺加工的木质基复合材料在建筑领域作为隔热材料的潜力。在熔融长丝制造技术中,使用含有30%木颗粒的聚乳酸共混物作为原料。针对包括打印温度和填充率在内的各种加工条件,测定了其热性能和力学性能。结果表明,打印过程使其拉伸性能略有收缩。打印温度对其刚度的影响可忽略不计,对拉伸强度和极限应力等其他工程常数的影响有限。已发现打印结构的热性能显著取决于填充率。尽管测试的3D打印木-PLA材料表现出良好的热性能,可通过打印条件进行调节,但其性能仍比建筑领域使用的玻璃棉或合成泡沫等隔热材料低38%至57%。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f94f/10385560/16bfbea1a7aa/polymers-15-03056-g001.jpg
