Improving Usability of the Pediatric Code Cart by Combining Lean and Human Factors Principles.

UNLABELLED

Cardiac arrests are common in hospitalized children. Well-organized code carts are needed during these events to help staff efficiently find supplies and medications for the patient. This study aimed to improve the efficiency and utilization of the code cart at a major academic pediatric medical center.

METHODS

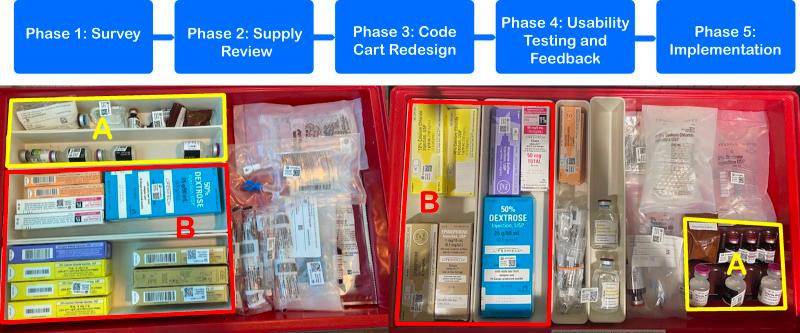

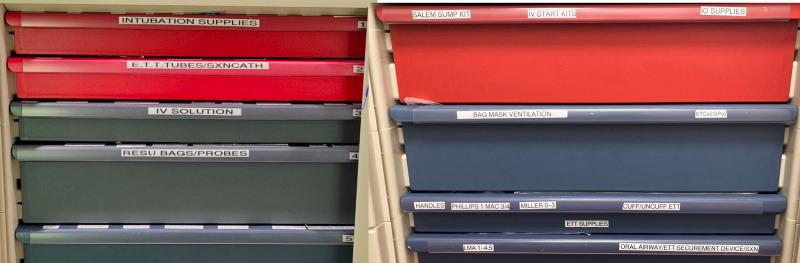

This quality improvement project used a phased approach to redesign the code cart. A multidisciplinary team used Lean and Human Factors principles to improve the efficiency and intuitiveness of the redesigned cart. Nurses and respiratory therapists participated in simulations asking for certain supplies with the original and redesigned code cart and filled out surveys for feedback on each code cart. Facilitators measured retrieval times during each simulation.

RESULTS

We performed 10 simulations with the original code cart and 13 with the redesigned code cart. Staff could find intraosseous access equipment more quickly (23.9 versus 46.4 seconds; = 0.003). In addition, staff reported they were less likely to open the wrong drawer or grab the wrong equipment and that the redesigned code cart was overall more well organized than the original code cart. Finally, the redesigned code cart reduced the cost by over 800 dollars per full cart restock.

CONCLUSION

Revising the code cart using Lean and Human Factors improves efficiency and usability and can contribute to cost savings.
