Wu Qiong, Luo Haiyun, Wang Hao, Liu Zhigang, Zhang Liyang, Li Yutai, Zou Xiaobing, Wang Xinxin
Department of Electrical Engineering, Tsinghua University, Beijing 100084, China.
Department of Electrical Engineering, Tsinghua University, Beijing 100084, China; School of Electrical Engineering, Chongqing University, Chongqing 400044, China.
Ultrason Sonochem. 2023 Oct;99:106552. doi: 10.1016/j.ultsonch.2023.106552. Epub 2023 Aug 5.

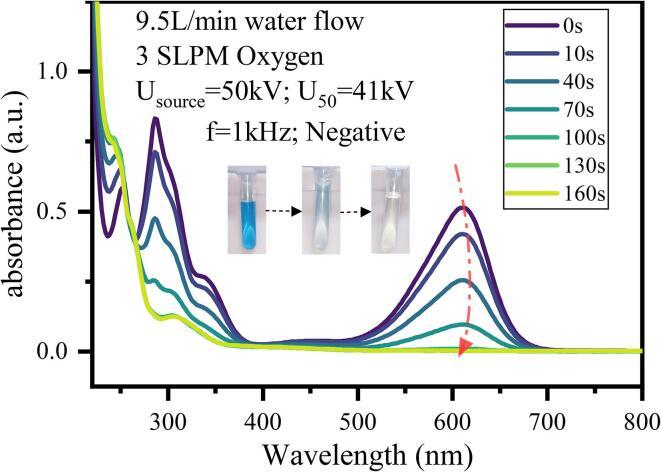

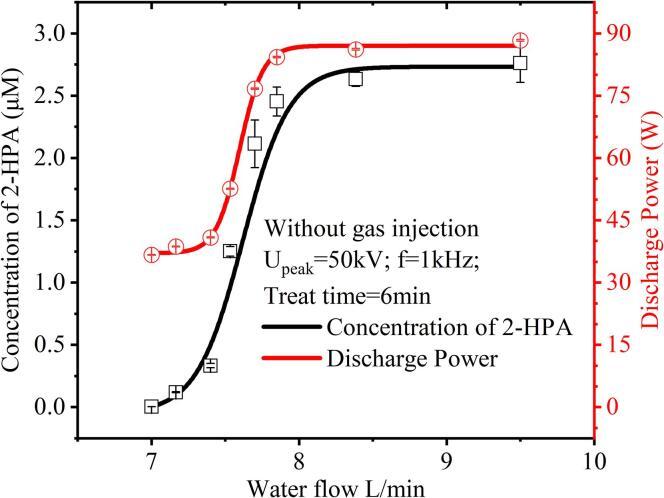

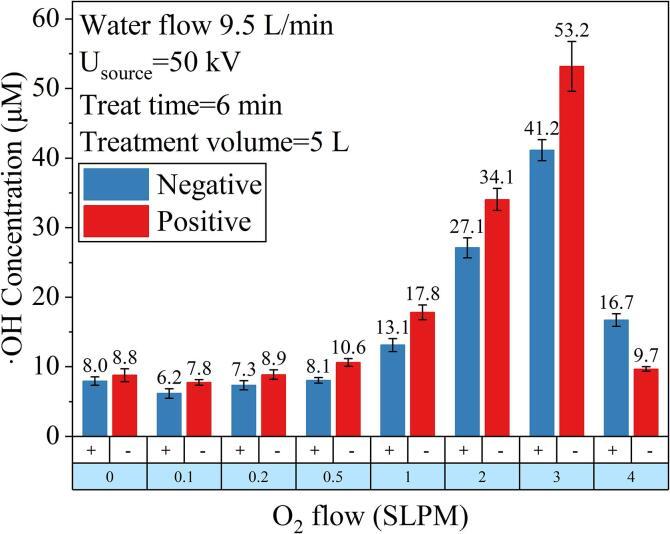

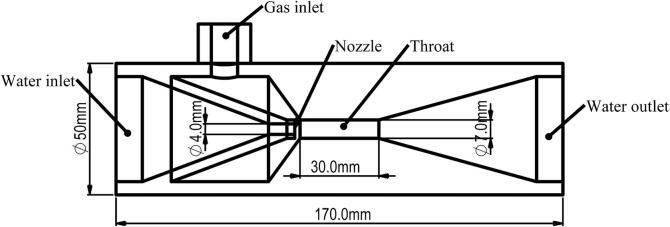

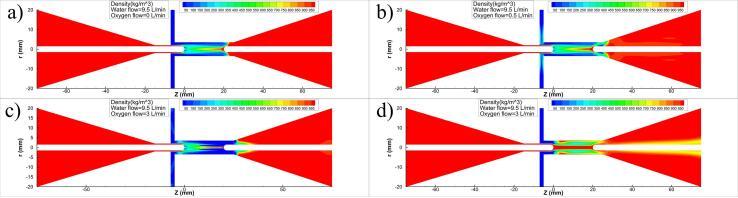

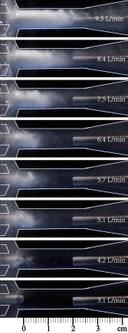

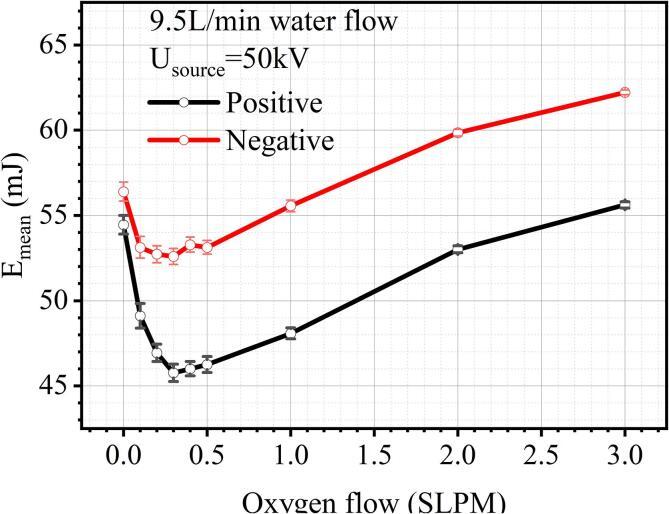

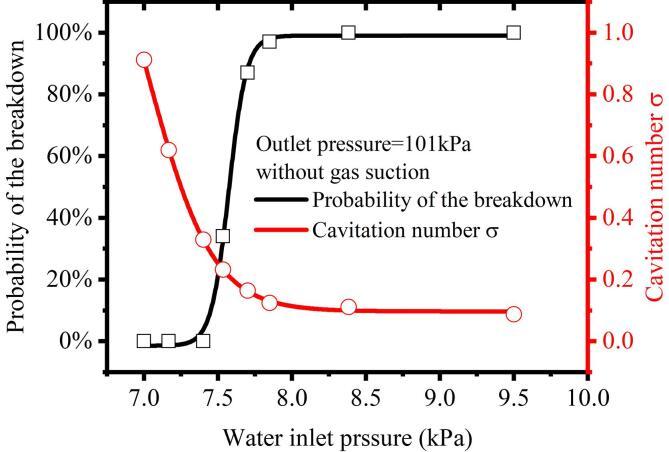

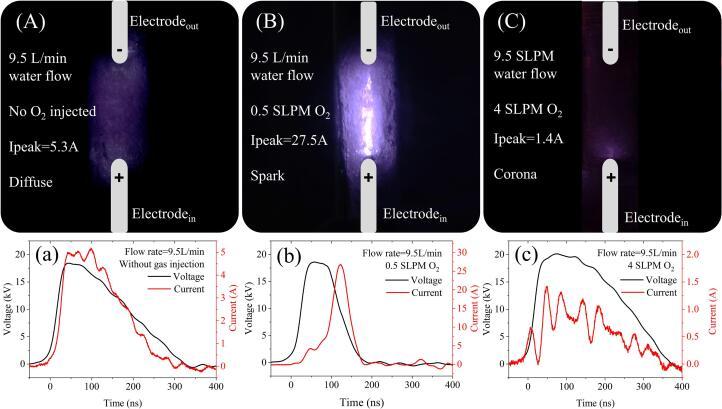

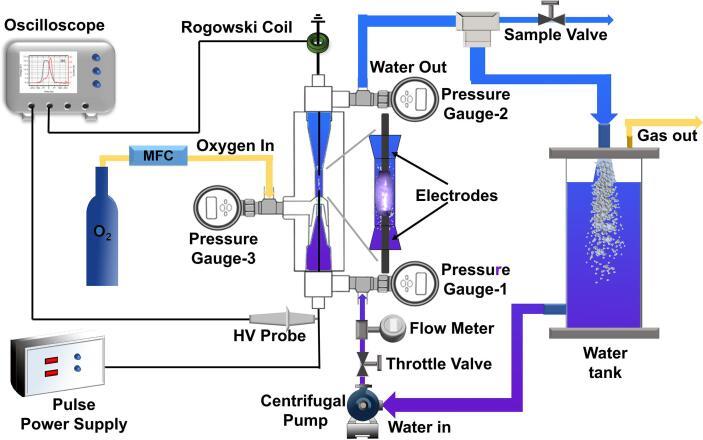

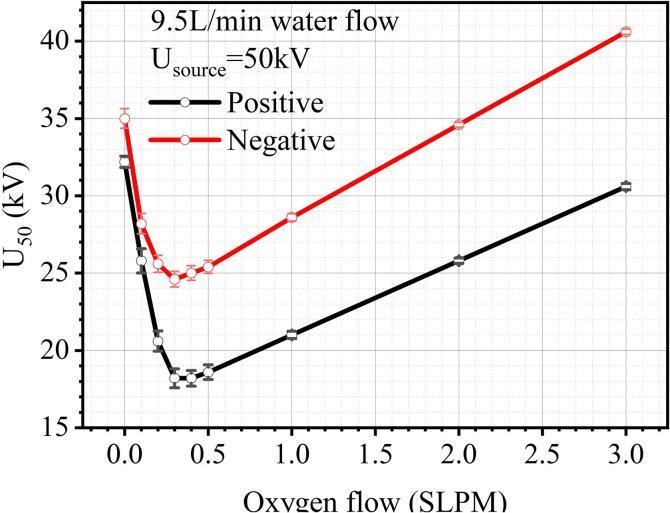

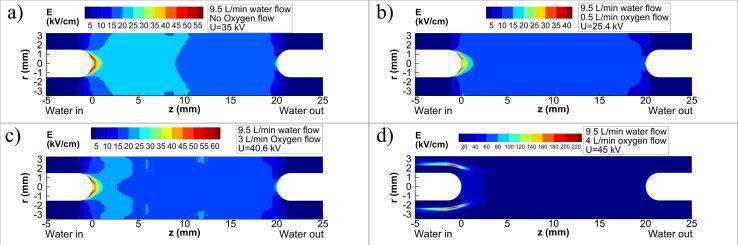

A novel Hydrodynamic Cavitation-Assisted Oxygen Plasma (HCAOP) process, which employs a venturi tube and oxygen injection, has been developed for enhancing the production and utilization of hydroxyl radicals (·OH) in the degradation of organic pollutants. This study has systematically investigated the fluid characteristics and discharge properties of the gas-liquid two-phase body in the venturi tube. The hydraulic cavitation two-phase body discharge is initiated by the bridging of the cavitation cloud between the electrodes. The discharge mode transitions from diffuse to spark to corona as the oxygen flow rate increases. The spark discharge has the highest current and discharge energy. Excessive oxygen results in the change of the flow from bubbly to annular and a subsequent decrease in discharge energy. The effects of cavitation intensity, oxygen flow rate, and power polarity on discharge characteristics and ·OH production were evaluated using terephthalic acid as a fluorescent probe. It was found that injecting 3 standard liter per minute (SLPM) of oxygen increased the ·OH yield by 6 times with only 1.2 times increase in power, whereas<0.5 SLPM of oxygen did not improve the ·OH yield due to lower breakdown voltage. Negative polarity voltage increased the breakdown voltage and ·OH yield due to asymmetric density and pressure distribution in the throat tube. This polarity effect was explained by numerical simulation. Using indigo carmine (E132) as a model pollutant, the HCAOP process degraded 20 mg/L of dye in 5 L water within 2 min following a first-order reaction. The lowest electric energy per order (E) was 0.26 (kWh/m/order). The HCAOP process is a highly efficient flow-type advanced oxidation process with potential industrial applications.
一种新型的水力空化辅助氧等离子体(HCAOP)工艺已被开发出来,该工艺采用文丘里管和氧气注入,用于在有机污染物降解过程中提高羟基自由基(·OH)的产生和利用。本研究系统地研究了文丘里管内气液两相体的流体特性和放电特性。水力空化两相体放电是由电极之间空化云的桥接引发的。随着氧气流量的增加,放电模式从扩散放电转变为火花放电再转变为电晕放电。火花放电具有最高的电流和放电能量。过量的氧气会导致流型从气泡流变为环状流,随后放电能量降低。以对苯二甲酸作为荧光探针,评估了空化强度、氧气流量和功率极性对放电特性和·OH产生的影响。研究发现,每分钟注入3标准升(SLPM)的氧气可使·OH产率提高6倍,而功率仅增加1.2倍,而氧气流量<0.5 SLPM时,由于击穿电压较低,·OH产率并未提高。负极性电压由于喉管内密度和压力分布不对称而提高了击穿电压和·OH产率。通过数值模拟对这种极性效应进行了解释。以靛蓝胭脂红(E132)作为模型污染物,HCAOP工艺在5升水中2分钟内按照一级反应降解了20mg/L的染料。最低的每级电能(E)为0.26(kWh/m/级)。HCAOP工艺是一种高效的流动型高级氧化工艺,具有潜在的工业应用价值。
