Hussein Dumooa R, Abbas Khalid K, Al-Ghaban Ahmed M H Abdulkadhim
Department of Materials Engineering, University of Technology, P.O. Box 19006, Baghdad, Iraq.
Heliyon. 2023 Jul 28;9(8):e18303. doi: 10.1016/j.heliyon.2023.e18303. eCollection 2023 Aug.

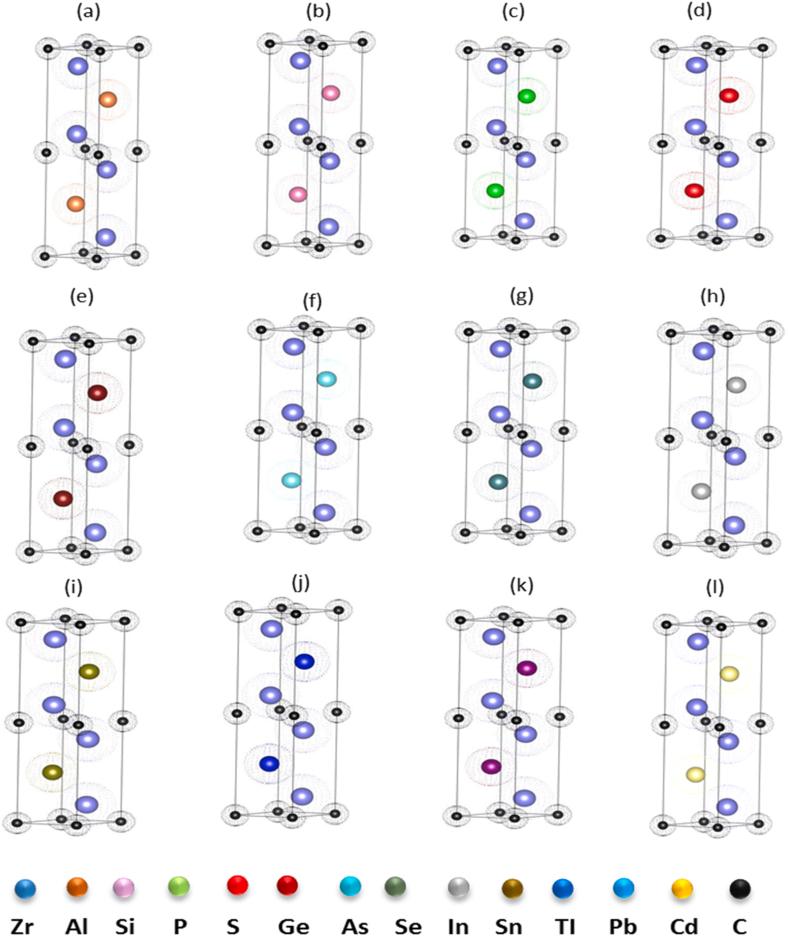

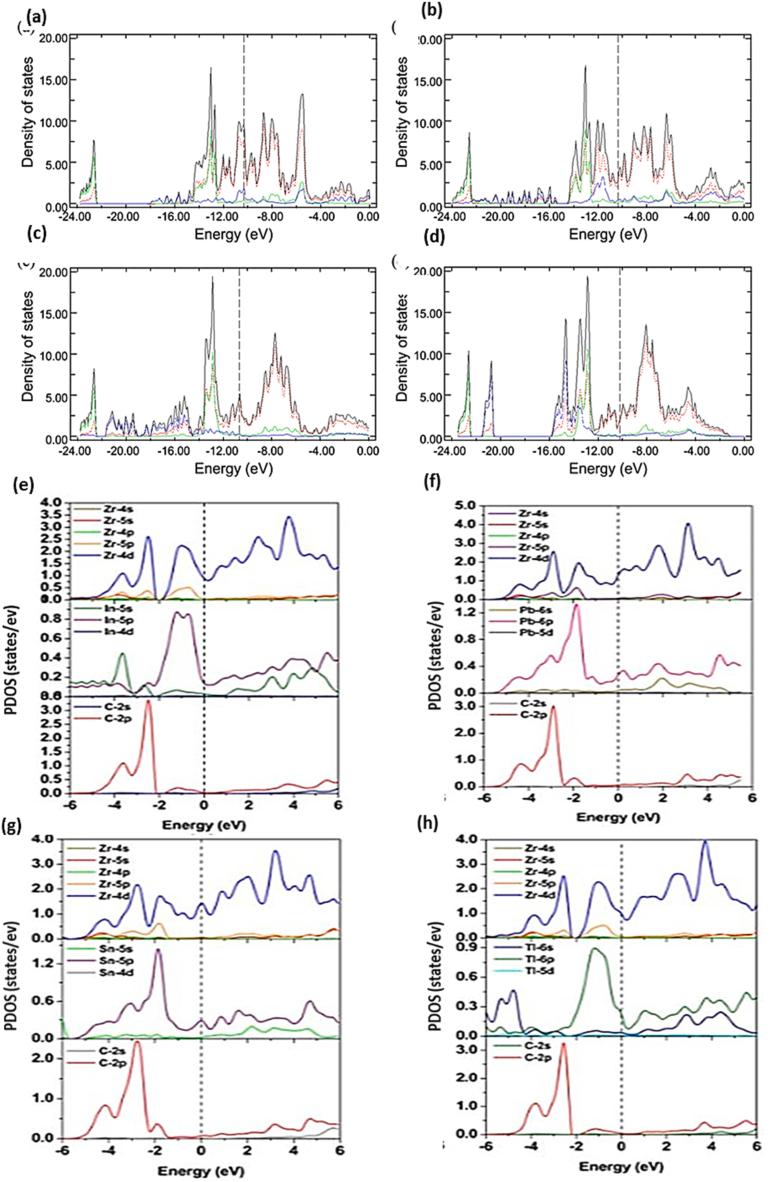

The ZrAC MAX phases are a family of ternary carbides ceramics that possess layered structures and exhibiting exceptional properties resulting from combining the most desirable features of metals and ceramics. In addition, the ZrAC MAX-phases exhibit numerous physical and chemical properties due to their chemical and structural characteristics, a tendency for multiple basal dislocations and exhibiting mobility under ambient conditions. This review extensively analyzes the properties of the ZrAC MAX phase, as they are closely linked to the exceptional and potential applications of the MAX phase. For the first time, the present study analyzed various properties of ZrAC MAX phases, including structural, electronic, elastic, thermal, optical, self-healing, nuclear, oxidation, and corrosion characteristics. Furthermore, this review included experimental and theoretical work with comparison. It's found that the ZrAC lattice parameters and are deviations theoretically from 0.1 to 2% and 0.15-2.87% compared with experimental work. Also, the ZrAC MAX phases are metallic characters and the conductivity differs depending on the type of the ZrAC(different A element) MAX phases. Its concluded that the ZrAC MAX phases are stiff, isotropic elastic properties and high machinability with damage tolerance and hardness levels ranging from 3.5 to 13.02 Gpa. The ZrAC MAX phases are also resistant to corrosion, thermal shock, and oxidation as well as lightweight. In addition, at elevated temperatures the transition from brittle to plastic behavior can be occurred in the ZrAC MAX phase. The ZrAC MAX phase's optical properties are anisotropic such as electrical conductivity and mechanical properties. This review study provides a comprehensive details assisting researches to deal with ZrAC MAX phase potentially for different applications.
ZrAC MAX相是一类三元碳化物陶瓷，具有层状结构，由于结合了金属和陶瓷最理想的特性而展现出卓越性能。此外，ZrAC MAX相因其化学和结构特征、存在多个基面位错的倾向以及在环境条件下具有迁移性，而展现出众多物理和化学性质。本综述广泛分析了ZrAC MAX相的性质，因为它们与MAX相的卓越性能和潜在应用密切相关。本研究首次分析了ZrAC MAX相的各种性质，包括结构、电子、弹性、热学、光学、自愈合、核、氧化和腐蚀特性。此外，本综述还纳入了实验和理论研究并进行比较。结果发现，与实验数据相比，ZrAC的晶格参数理论偏差为0.1%至2%和0.15%至2.87%。而且，ZrAC MAX相具有金属特性，其电导率因ZrAC（不同的A元素）MAX相的类型而异。得出的结论是，ZrAC MAX相具有刚性、各向同性的弹性性质以及高加工性，其损伤容限和硬度水平在3.5至13.02吉帕之间。ZrAC MAX相还具有耐腐蚀、抗热震和抗氧化以及轻质的特点。此外，在高温下ZrAC MAX相可能会发生从脆性到塑性行为的转变。ZrAC MAX相的光学性质如电导率和机械性质一样具有各向异性。本综述研究提供了全面的细节，有助于研究人员针对不同应用开发ZrAC MAX相的潜在用途。
