Bonding performance of glass ionomer cement to carious dentin treated with different surface treatment protocols using silver diamine fluoride.

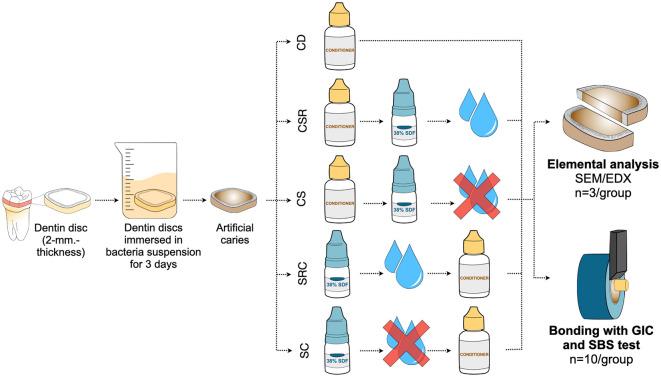

This study investigated the influence of silver diamine fluoride (SDF) on the shear bond strength (SBS) to artificial carious dentin and GIC restorations with various SDF application protocols. Artificial caries were prepared on human dentin discs using bacteria model. These samples were randomly allocated to five groups (n = 10/group) according to the following treatment: (1) control group (CD): no treatment (2) CSR: dentin conditioner, SDF, and rinsing (3) CS: dentin conditioner and SDF (4) SRC: SDF, rinsing and dentin conditioner, and (5) SC: SDF and dentin conditioner. The treated-dentin surface was bonded with GIC and subjected to SBS test. Mean SBS was analyzed using one-way ANOVA. Surface morphology and elemental contents after surface treatment were examined (n = 3/group) by scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM/EDX). There was no significant difference in the mean SBS among CD (2.45 ± 0.99 MPa), CSR (1.76 ± 0.65 MPa), and SRC (2.64 ± 0.95 MPa). Meanwhile, the mean SBS of CS (0.35 ± 0.21 MPa) was significantly lower than the control and SRC group. SEM/EDX demonstrated deeper silver penetration in CSR and CS groups when compared to SRC and SC groups. SDF-modified GIC restorations resulted in significantly lower bond strength in CS and SC groups. The findings suggested treating the carious dentin surface with CSR and SRC protocol. SDF-treated carious dentin should be rinsed off prior to restore with GIC.
