UV-Curing Additive Manufacturing of Bio-Based Thermosets: Effect of Diluent Concentration on Printing and Material Properties of Itaconic Acid-Based Materials.

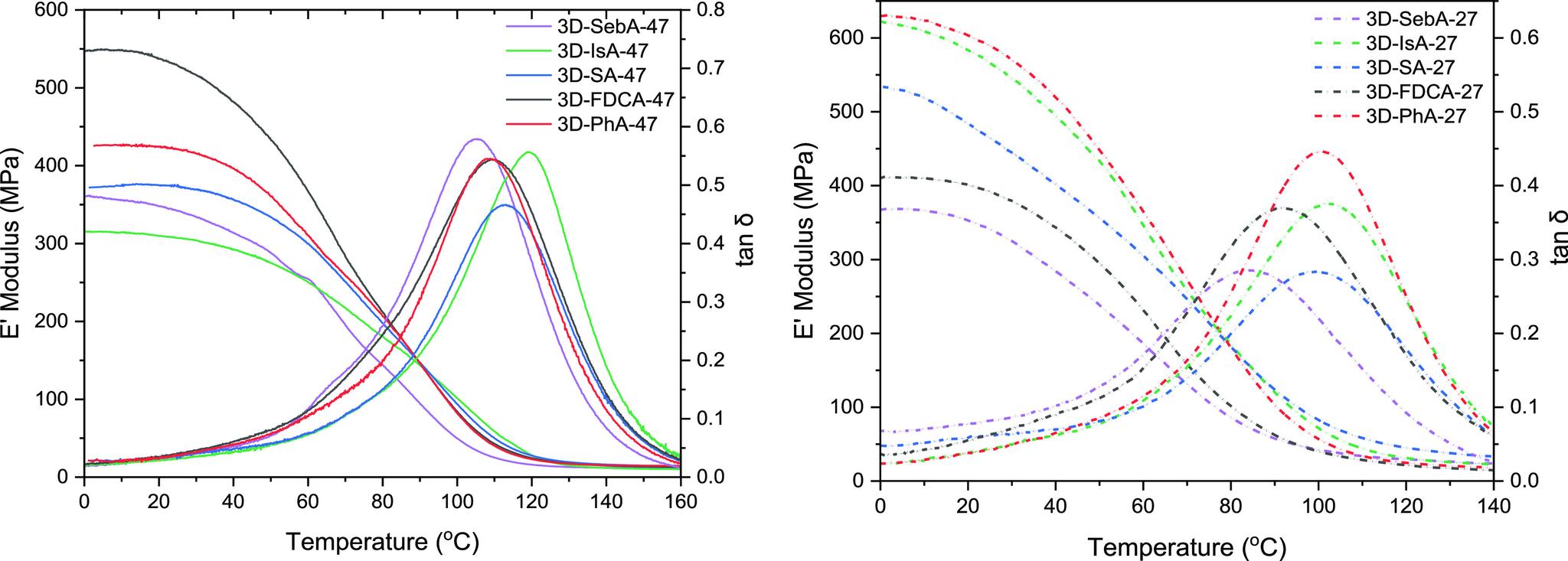

In the quest toward sustainable thermosets, research has been conducted on various polymer classes like epoxy, benzoxazines, acryl-/methacrylates, etc. One particular group that can also be utilized as sustainable inks for additive manufacturing is itaconic acid-based unsaturated polyester resins. However, due to increased viscosity of the resins, the use of reactive diluents is required to increase their processability. While research has focused on creating different polymeric structures to expand the possible applications, the required amount of diluent has not received equal attention. In this work, a group of itaconic acid-based polyesters was synthesized to create a series of formulations with different reactive diluent contents. The physicochemical properties of the prepared formulations, along with their reactivity toward UV light, were assessed via photo-differential scanning calorimetry (photo-DSC), real-time attenuated total reflectance (RT-ATR), and photorheology measurements. The same formulations were then used to fabricate test specimens via digital light processing (DLP) three-dimensional (3D) printing, which were examined as to their thermomechanical properties by means of dynamic mechanical analysis (DMA) and thermogravimetric analysis (TGA) measurements.
