Study on the Targeted Improvement Mechanism of the Carrier Concentration and Mobility of BiCuSeO Ceramics.

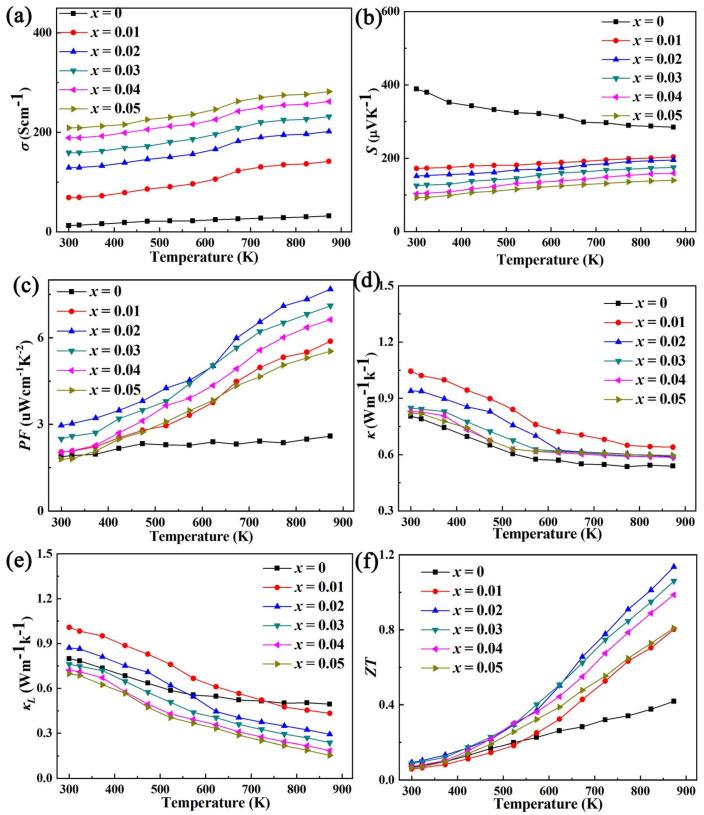

BiCuSeO has great application prospects in thermoelectric power generation and thermoelectric catalysis, but it is limited by its lower thermoelectric performance. Herein, BiCuSeO bulk materials were prepared using a solid-phase reaction method and a ball-milling method combined with spark plasma sintering, and then the thermoelectric properties were improved by synergistically increasing carrier concentration and mobility. Al was adopted to dope into the BiCuSeO matrix, aiming to adjust the carrier mobility through energy band adjustment. The results show that Al doping would widen the bandgap and enhance the carrier mobility of BiCuSeO. After Al doping, the thermoelectric properties of the material are improved in the middle- and high-temperature range. Based on Al doping, Pb is adopted as the doping element to dope BiCuSeO to modify the carrier concentration. The results show that Al/Pb dual doping in the BiCuSeO matrix can increase the carrier concentration under the premise of increasing carrier mobility. Therefore, the electrical conductivity of BiCuSeO can be improved while maintaining a large Seebeck coefficient. The power factor of Al/Pb doping reached ~7.67 μWcmK at 873 K. At the same time, the thermal conductivity of all doped samples within the test temperature range maintained a low level (<1.2 WmK). Finally, the value of the Al/Pb-doped BiCuSeO reached ~1.14 at 873 K, which is ~2.72 times that of the pure phase, and the thermoelectric properties of the matrix were effectively improved.
