Zimmerer Cordelia, Simon Frank, Putzke Sascha, Drechsler Astrid, Janke Andreas, Krause Beate
Institute of Polymer Materials, Leibniz-Institut für Polymerforschung Dresden e.V. (IPF), Hohe Str. 6, 01069 Dresden, Germany.
Institute of Physical Chemistry and Polymer Physics, Leibniz-Institut für Polymerforschung Dresden e.V. (IPF), Hohe Str. 6, 01069 Dresden, Germany.
Nanomaterials (Basel). 2023 Oct 23;13(20):2813. doi: 10.3390/nano13202813.

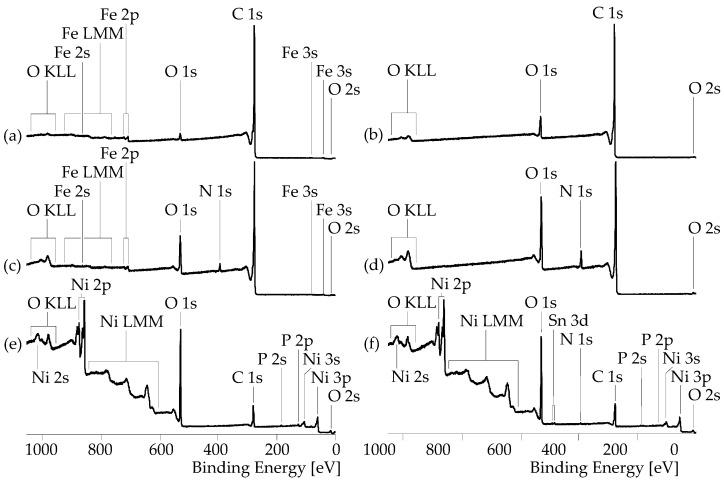

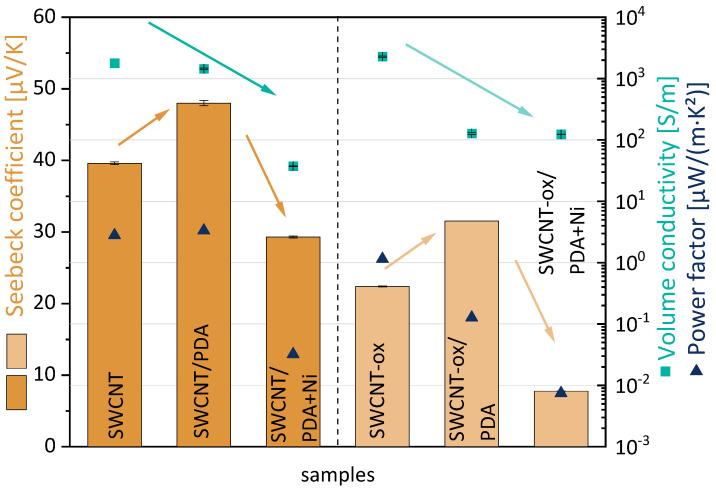

Single-walled carbon nanotubes (SWCNTs) have unique thermal and electrical properties. Coating them with a thin metal layer can provide promising materials for many applications. This study presents a bio-inspired, environmentally friendly technique for CNT metallization using polydopamine (PDA) as an adhesion promoter, followed by electroless plating with nickel. To improve the dispersion in the aqueous reaction baths, part of the SWCNTs was oxidized prior to PDA coating. The SWCNTs were studied before and after PDA deposition and metallization by scanning and transmission electron microscopy, scanning force microscopy, and X-ray photoelectron spectroscopy. These methods verified the successful coating and revealed that the distribution of PDA and nickel was significantly improved by the prior oxidation step. Thermoelectric characterization showed that the PDA layer acted as a p-dopant, increasing the Seebeck coefficient S of the SWCNTs. The subsequent metallization decreased S, but no negative S-values were reached. Both coatings affected the volume conductivity and the power factor, too. Thus, electroless metallization of oxidized and PDA-coated SWCNTs is a suitable method to create a homogeneous metal layer and to adjust their conduction type, but more work is necessary to optimize the thermoelectric properties.
单壁碳纳米管(SWCNTs)具有独特的热学和电学性质。用薄金属层对其进行包覆可为许多应用提供有前景的材料。本研究提出了一种受生物启发的、环境友好的碳纳米管金属化技术,该技术使用聚多巴胺(PDA)作为粘附促进剂,随后进行镍的化学镀。为了改善在水相反应浴中的分散性,部分单壁碳纳米管在进行聚多巴胺包覆之前先进行了氧化处理。通过扫描电子显微镜、透射电子显微镜、扫描力显微镜和X射线光电子能谱对单壁碳纳米管在聚多巴胺沉积和金属化前后进行了研究。这些方法证实了包覆成功,并表明通过预先的氧化步骤,聚多巴胺和镍的分布得到了显著改善。热电表征表明,聚多巴胺层起到了p型掺杂剂的作用,提高了单壁碳纳米管的塞贝克系数S。随后的金属化降低了S,但未达到负的S值。两种包覆层也都影响了体积电导率和功率因数。因此,对氧化且包覆聚多巴胺的单壁碳纳米管进行化学镀金属化是形成均匀金属层并调整其导电类型的合适方法,但要优化热电性能还需要做更多工作。
