通过一步电纺制备PS/PVDF-HFP多级结构微/纳米纤维膜
Fabrication of PS/PVDF-HFP Multi-Level Structured Micro/Nano Fiber Membranes by One-Step Electrospinning.
作者信息
Zhao Yixia, Zhang Zehao, Zhang Yan, Huang Yuting, Chen Yanfei, Chen Bofei, Kang Weimin, Ju Jingge
机构信息
State Key Laboratory of Separation Membranes and Membrane Processes, National Center for International Joint Research on Separation Membranes, School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China.
Shandong Provincial Key Laboratory of Olefin Catalysis and Polymerization, Shandong Chambroad Holding Group Co., Ltd., Economic Development Zone of Boxing County, Binzhou 256500, China.
出版信息
Membranes (Basel). 2023 Sep 22;13(10):807. doi: 10.3390/membranes13100807.

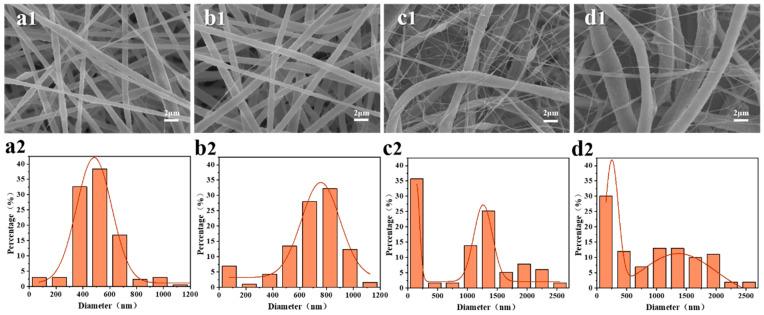

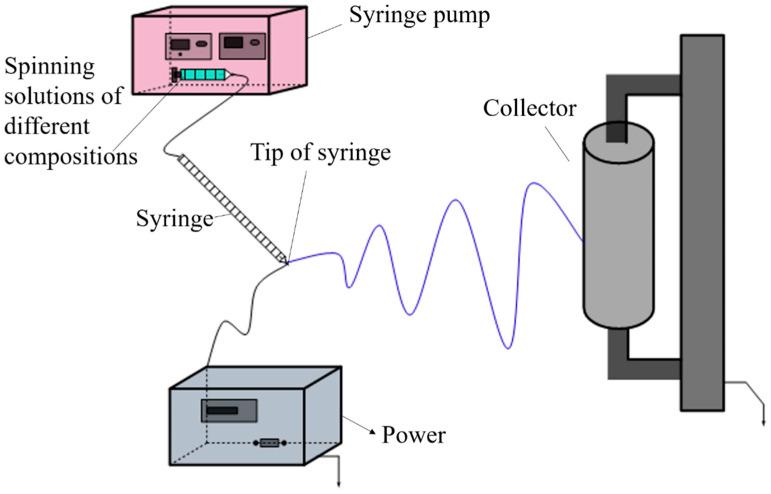

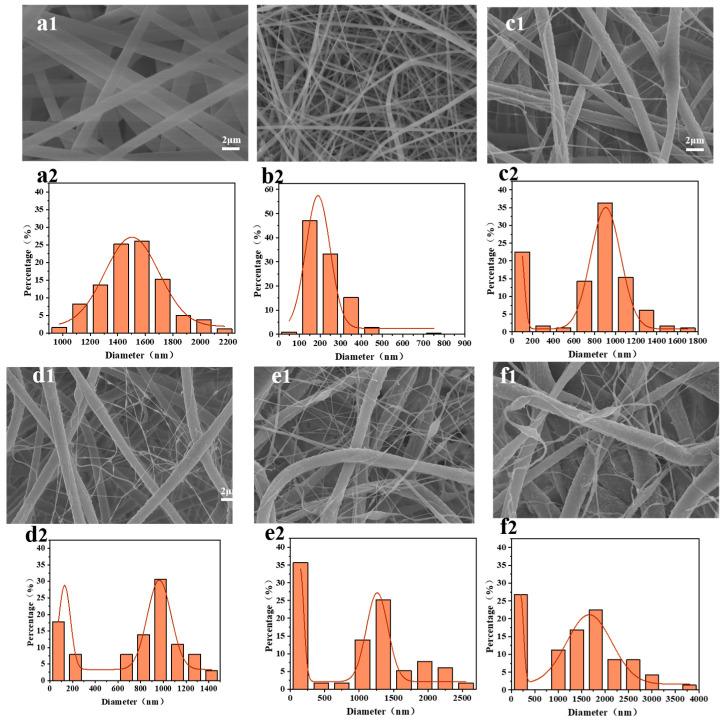

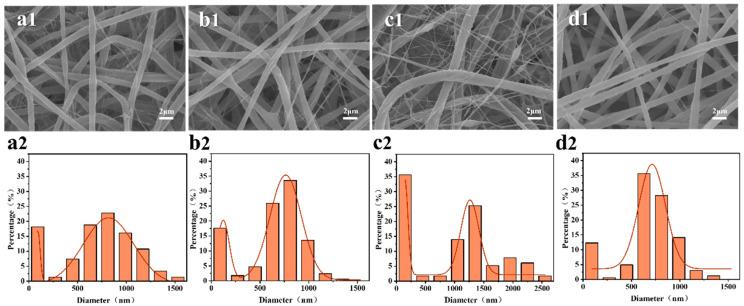

Recently, the multi-level interwoven structured micro/nano fiber membranes with coarse and fine overlaps have attracted lots of attention due to their advantages of high surface roughness, high porosity, good mechanical strength, etc., but their simple and direct preparation methods still need to be developed. Herein, the multi-level structured micro/nano fiber membranes were prepared novelly and directly by a one-step electrospinning technique based on the principle of micro-phase separation caused by polymer incompatibility using polystyrene (PS) and polyvinylidene fluoride-hexafluoropropylene copolymer (PVDF-HFP) as raw materials. It was found that different spinning fluid parameters and various spinning process parameters will have a significant impact on its morphology and structures. Under certain conditions (the concentration of spinning solution is 18 wt%, the mass ratio of PS to PVDF-HFP is 1:7, the spinning voltage is 30 kV, and the spinning receiving distance is 18 cm), the PS/PVDF-HFP membrane with optimal multi-level structured micro/nano fiber membranes could be obtained, which present an average pore size of 4.38 ± 0.10 μm, a porosity of 78.9 ± 3.5%, and a water contact angle of 145.84 ± 1.70°. The formation mechanism of micro/nano fiber interwoven structures was proposed through conductivity and viscosity tests. In addition, it was initially used as a separation membrane material in membrane distillation, and its performance was preliminarily explored. This paper provides a theoretical and experimental basis for the research and development of an efficient and feasible method for the preparation of multi-level micro/nano fiber membranes.

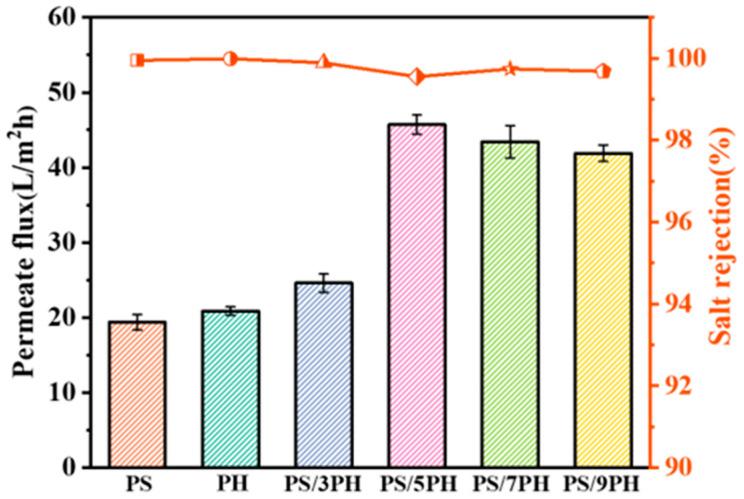

近年来,具有粗细重叠的多级交织结构的微/纳米纤维膜因其具有高表面粗糙度、高孔隙率、良好的机械强度等优点而备受关注,但其简单直接的制备方法仍有待开发。在此,以聚苯乙烯(PS)和聚偏氟乙烯-六氟丙烯共聚物(PVDF-HFP)为原料,基于聚合物不相容引起的微相分离原理,通过一步静电纺丝技术新颖且直接地制备了多级结构的微/纳米纤维膜。研究发现,不同的纺丝液参数和各种纺丝工艺参数会对其形态和结构产生显著影响。在一定条件下(纺丝溶液浓度为18 wt%,PS与PVDF-HFP的质量比为1:7,纺丝电压为30 kV,纺丝接收距离为18 cm),可获得具有最佳多级结构的微/纳米纤维膜的PS/PVDF-HFP膜,其平均孔径为4.38±0.10μm,孔隙率为78.9±3.5%,水接触角为145.84±1.70°。通过电导率和粘度测试提出了微/纳米纤维交织结构的形成机理。此外,它最初被用作膜蒸馏中的分离膜材料,并对其性能进行了初步探索。本文为开发高效可行的多级微/纳米纤维膜制备方法的研究提供了理论和实验依据。
