银和多壁碳纳米管掺杂聚(偏二氟乙烯-共-六氟丙烯)复合膜的抗菌及抗污染性能研究

Investigation of Antibacterial and Fouling Resistance of Silver and Multi-Walled Carbon Nanotubes Doped Poly(Vinylidene Fluoride-co-Hexafluoropropylene) Composite Membrane.

作者信息

Macevele Lutendo E, Moganedi Kgabo L M, Magadzu Takalani

机构信息

Department of Chemistry, University of Limpopo, Private Bag x1106, Sovenga 0727, South Africa.

Department of Biochemistry, Microbiology and Biotechnology, University of Limpopo, Private Bag x1106, Sovenga 0727, South Africa.

出版信息

Membranes (Basel). 2017 Jul 13;7(3):35. doi: 10.3390/membranes7030035.

Abstract

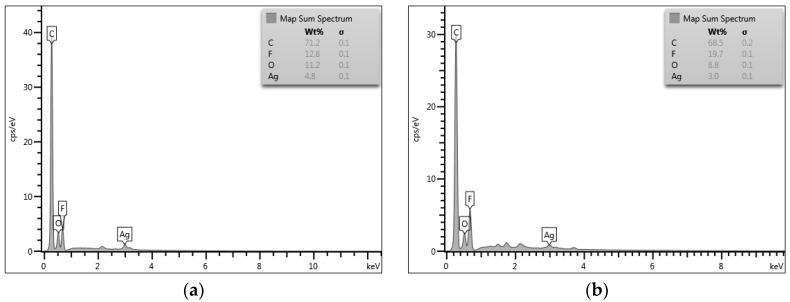

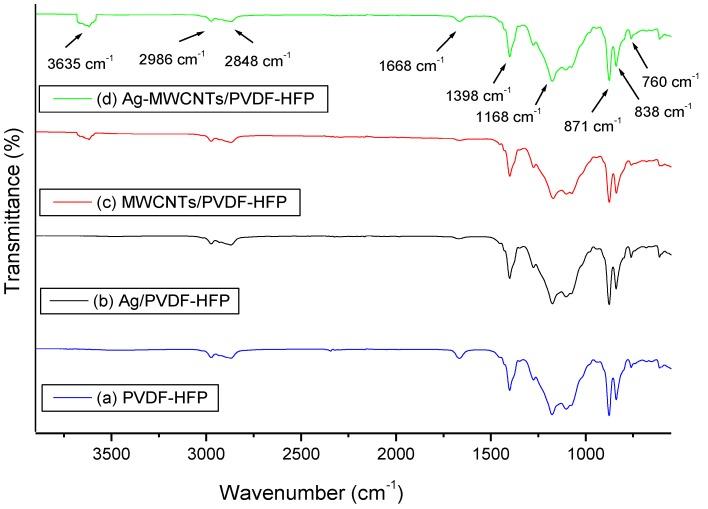

Composite membranes were successfully prepared using a phase-inversion method. The X-ray powder diffraction (XRD) and energy dispersive X-ray (EDX) profiles has confirmed formation of 4.8 wt % Ag/poly(vinylidene fluoride-co-hexafluoropropene) (PVDF-HFP), 3 wt % Ag-MWCNTs/PVDF-HFP (EDX surface composition of Ag nanoparticles) and 1.5 wt % MWCNTs/PVDF-HFP composite membranes. The MWCNTs crystallites are mainly encapsulated by a layer of PVDF-HFP, as evidenced by disappearance of graphitic peak. The scanning electron microscopy (SEM) images have depicted the formation of microporous structure, with few MWCNTs on the surface and strongly interacting with PVDF-HFP as demonstrated by thermogravimetric analysis (TGA), XRD and Fourier transform infrared (FTIR) data. The data indicated an increase in porosity, swellability and water content of the PVDF-HFP membrane with the addition of MWCNTs and/or Ag nanoparticles, showing an improved hydrophilicity. The 1.5 wt % MWCNTs/PVDF-HFP composite membrane showed good desalination and fouling resistance rates, which correlates with a low water contact angle. The combined effects of Ag nanoparticles and MWCNTs do not promote fouling resistance of PVDF-HFP membranes, as shown during NaCl microfiltration (this is linked with high water contact angle as compared to that of MWCNTs/PVDF-HFP composite). Both 1.5 wt % MWCNTs/PVDF-HFP and 3 wt % Ag-MWCNTs/PVDF-HFP composite membranes prevented the bacteria passing through the membrane (100% bacterial load reduction). The surface of 3 wt % Ag-MWCNTs/PVDF-HFP showed good bactericidal and non-leaching properties of the dopant materials (MWCNTs and Ag), as evidenced by bacterial growth on the edges of the membranes.

摘要

采用相转化法成功制备了复合膜。X射线粉末衍射(XRD)和能量色散X射线(EDX)图谱证实了4.8 wt%银/聚偏氟乙烯-六氟丙烯共聚物(PVDF-HFP)、3 wt%银-多壁碳纳米管/PVDF-HFP(银纳米颗粒的EDX表面组成)和1.5 wt%多壁碳纳米管/PVDF-HFP复合膜的形成。多壁碳纳米管微晶主要被一层PVDF-HFP包裹,石墨峰的消失证明了这一点。扫描电子显微镜(SEM)图像描绘了微孔结构的形成,表面有少量多壁碳纳米管,热重分析(TGA)、XRD和傅里叶变换红外(FTIR)数据表明其与PVDF-HFP有强烈相互作用。数据表明,添加多壁碳纳米管和/或银纳米颗粒后,PVDF-HFP膜的孔隙率、溶胀性和含水量增加,亲水性得到改善。1.5 wt%多壁碳纳米管/PVDF-HFP复合膜表现出良好的脱盐率和抗污染率,这与低水接触角相关。银纳米颗粒和多壁碳纳米管的联合作用并没有提高PVDF-HFP膜的抗污染能力,如氯化钠微滤过程所示(这与多壁碳纳米管/PVDF-HFP复合材料相比的高水接触角有关)。1.5 wt%多壁碳纳米管/PVDF-HFP和3 wt%银-多壁碳纳米管/PVDF-HFP复合膜都能阻止细菌通过膜(细菌负载减少100%)。3 wt%银-多壁碳纳米管/PVDF-HFP的表面显示出掺杂材料(多壁碳纳米管和银)良好的杀菌和非浸出性能,膜边缘的细菌生长证明了这一点。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3f3a/5618120/5c5b8948670a/membranes-07-00035-g001.jpg
