一种完全由对苯二酚醚组成的十二甲氧基[6]环对亚苯基:通过轮烷结构揭示面内芳香性。

A dodecamethoxy[6]cycloparaphenylene consisting entirely of hydroquinone ethers: unveiling in-plane aromaticity through a rotaxane structure.

作者信息

Narita Naoki, Kurita Yusuke, Osakada Kohtaro, Ide Tomohito, Kawai Hidetoshi, Tsuchido Yoshitaka

机构信息

Department of Chemistry, Faculty of Science, Tokyo University of Science, 1-3 Kagurazaka, Shinjuku-ku, Tokyo, 162-8601, Japan.

Laboratory for Chemistry and Life Science, Institute of Innovative Research, Tokyo Institute of Technology, 4259, Nagatsuta, Midori-ku, Yokohama, 226-8503, Japan.

出版信息

Nat Commun. 2023 Dec 7;14(1):8091. doi: 10.1038/s41467-023-43907-7.

Abstract

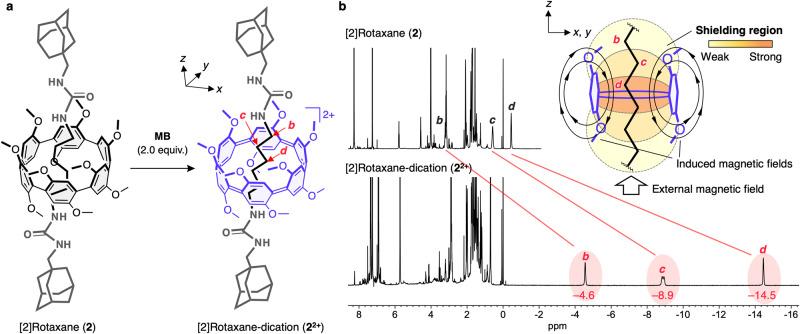

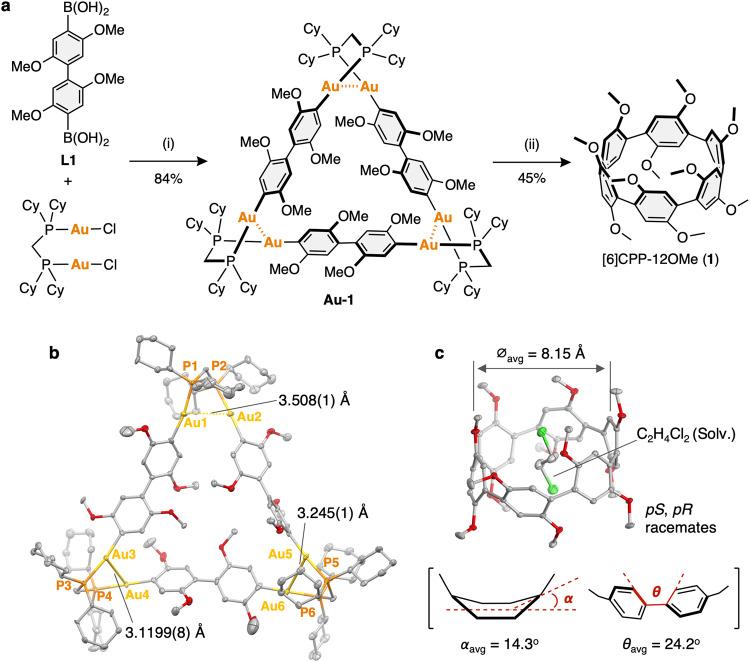

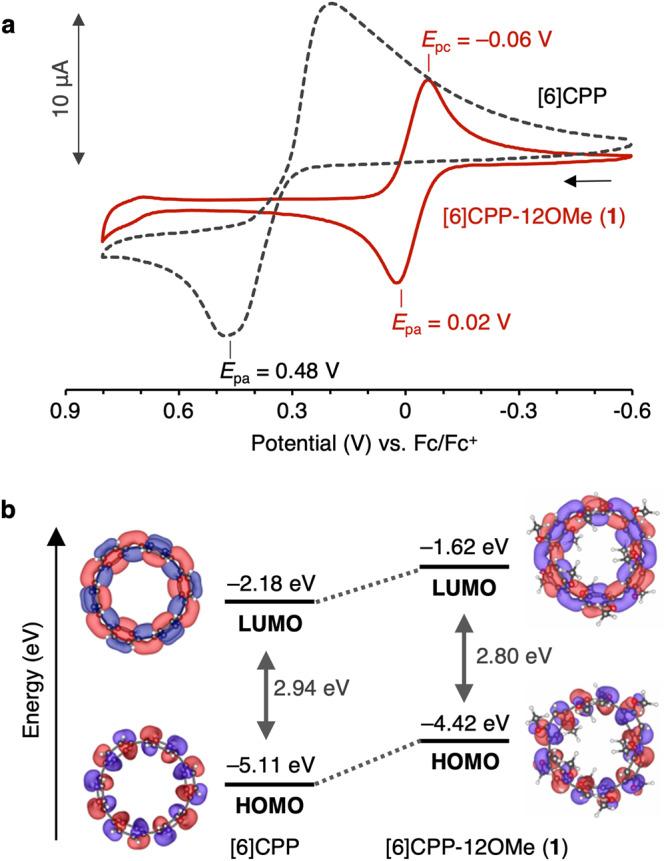

[n]Cycloparaphenylenes ([n]CPPs, where n is the number of phenylene groups), consisting of 1,4-linked phenylene unit, have attracted much attention due to their cyclic π-conjugated structures and physical properties. However, functionalizing of the benzene rings of smaller [n]CPPs (n < 7) has been a challenge due to ring strain and steric hindrance of the substituents that hampers their synthesis. Here we show successful synthesis of a new [6]CPP derivative with twelve methoxy groups at the 2,5-positions of all benzene rings by utilizing our developed CPP synthesis method via a macrocyclic gold complex. This molecule exhibited a significantly higher oxidation potential caused by the electron-donating ability of the methoxy groups and the tubular molecular conformation, allowing facile oxidation to give dicationic species with in-plane aromaticity. Furthermore, this molecule successfully included with the guest molecules with a flexible alkyl chain in the cavity, enabling the creation of a CPP-based rotaxane, which exploited its mechanically interlocked molecular structure to the first experimental observation that the in-plane aromaticity in the center of the macrocycle.

摘要

[n]环对亚苯基([n]CPPs,其中n为亚苯基的数量)由1,4-连接的亚苯基单元组成,由于其环状π共轭结构和物理性质而备受关注。然而,较小的[n]CPPs(n < 7)苯环的官能化一直是一个挑战,因为环张力和取代基的空间位阻阻碍了它们的合成。在这里,我们展示了通过我们开发的经由大环金配合物的CPP合成方法,成功合成了一种新的[6]CPP衍生物,其所有苯环的2,5-位均有十二个甲氧基。该分子由于甲氧基的供电子能力和管状分子构象而表现出显著更高的氧化电位,使得能够容易地氧化生成具有面内芳香性的双阳离子物种。此外,该分子在其腔内成功地包含了具有柔性烷基链的客体分子,从而能够创建基于CPP的轮烷,该轮烷利用其机械互锁分子结构首次通过实验观察到大环中心的面内芳香性。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/09cc/10703805/1058a7c580ac/41467_2023_43907_Fig1_HTML.jpg
