Design and Experimental Results of a Three-Dimensional Force Sensor for Shearer Cutting Pick Force Monitoring.

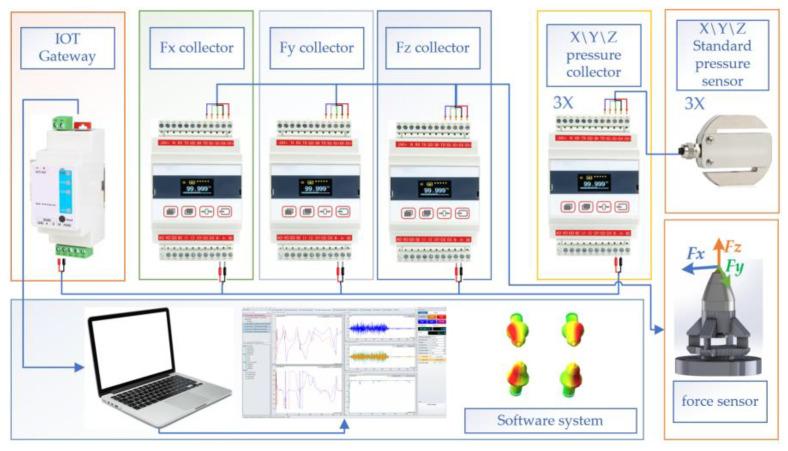

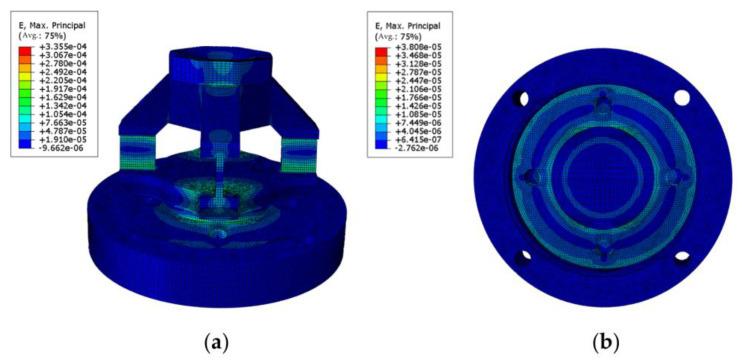

The main focus of this work is the design and development of a three-dimensional force sensor for the cutting pick of a coal mining shearer's simulated drum. This sensor is capable of simultaneously measuring the magnitude of force along three directions of the cutting pick during the cutting sample process. The three-dimensional force sensor is built based on the strain theory of material mechanics, and reasonable structural design is implemented to improve its sensitivity and reduce inter-axis coupling errors. The strain distribution of the sensor is analyzed using finite element analysis software, and the distribution of the strain gauges is determined based on the analysis results. In addition, a calibration test system is designed for the sensor, and the sensitivity, linearity, and inter-axis coupling errors of the sensor are calibrated and tested using loading experiments in three mutually perpendicular directions. Modal simulation analysis and actual cutting pick testing of the coal mining machine's simulated drum are conducted to study the dynamic characteristics and functionality of the sensor in practical applications. The experimental results depict sensitivities of 0.748 mV/V, 2.367 mV/V, and 2.83 mV/V for the newly developed sensor, respectively. Furthermore, the cross-sensitivity error was lower than 5.02%. These findings validate that the sensor's structure satisfies the measurement requirements for pick-cutting forces.
